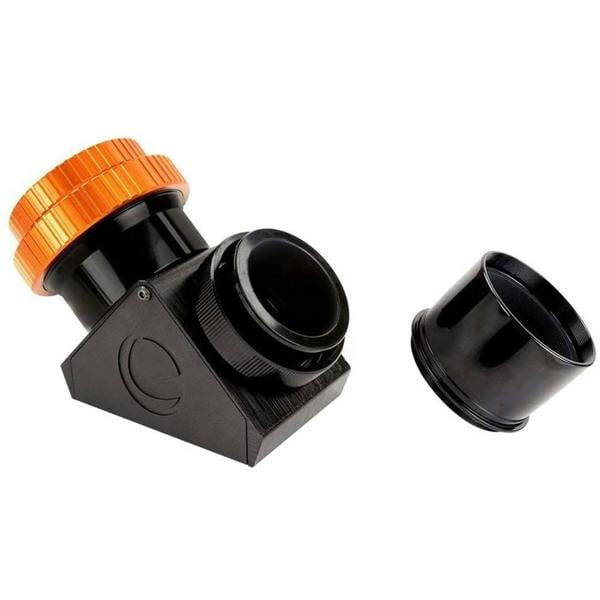

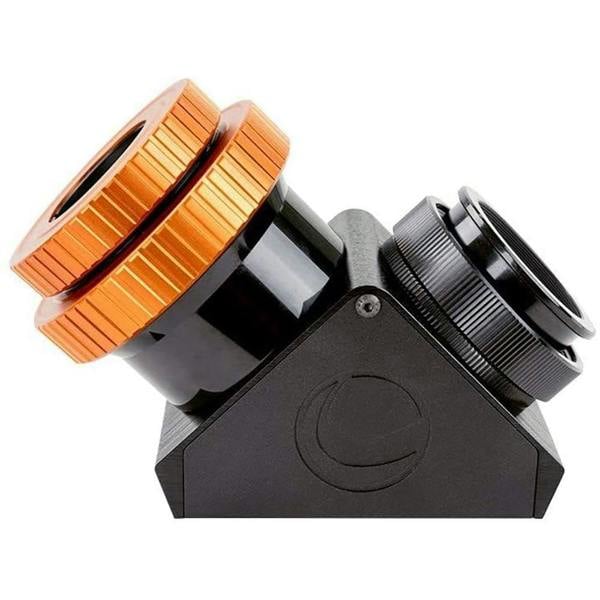

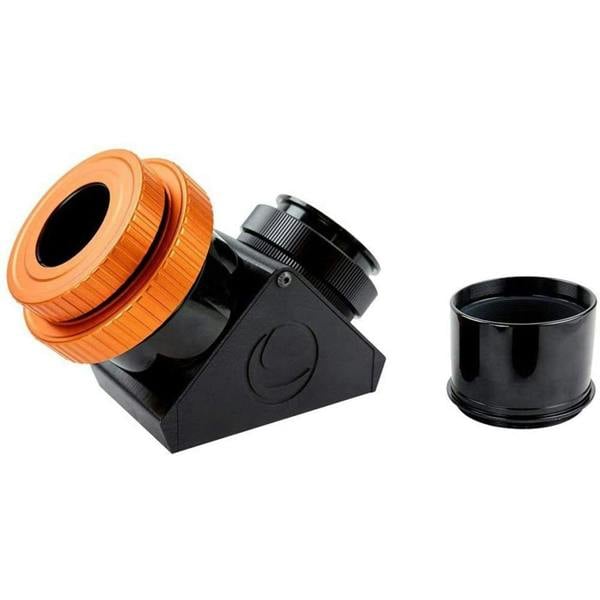

Celestron Dielectric Star Diagonal 2" with Twist-Lock

For a cleaner, brighter optical path and a more comfortable observing position, this Celestron 2-inch star diagonal brings a premium upgrade to refractor and Cassegrain-type telescopes. It provides a 90 viewing angle and uses a mirror diagonal with BK7 glass, diffraction-limited optics and 58 layers of dielectric coatings for over 99% reflectivity.

The twist-lock eyepiece holder keeps accessories centred for accurate opto-mechanical alignment, while the included 2-inch to 1. 25-inch stepdown adapter extends compatibility with both eyepiece sizes. Two interchangeable connection barrels are supplied: a standard 2-inch barrel for 2-inch focusers and an SCT-threaded adapter for Schmidt-Cassegrain telescopes. Machined black anodised aluminium construction, glare-threaded interiors and a flat black finish complete a thoroughly considered design.

Key features

• 2-inch mirror star diagonal with 90 viewing angle
• BK7 glass with diffraction-limited optics
• 58 layers of dielectric coatings with over 99% reflectivity
• 2-inch twist-lock eyepiece holder
• Includes 2-inch to 1. 25-inch twist-lock stepdown adapter
• Accepts eyepieces, Barlow lenses, threaded filters and other accessories in 2-inch and 1. 25-inch sizes
• Supplied with interchangeable 2-inch barrel and SCT-threaded adapter
• Machined black anodised aluminium housing with glare-threaded, flat black barrel interiors
• Model number: 93573-CGL

Specifications

Optical

• Diagonal size: 50. 8mm (2-inch)
• Diagonal type: Mirror
• Glass material: BK7
• Coatings: Dielectric, 58 layers
• Reflectivity: Over 99%
• Optical quality: Diffraction limited

Build

• Eyepiece holder: 2-inch, Twist-Lock
• 2-inch-to-1. 25-inch stepdown adapter: Included, Twist-Lock
• Compression ring: Yes, dual rings for 2-inch eyepiece holder and single ring for 1. 25-inch stepdown adapter
• Housing construction: Machined aluminium, black anodised
• Barrels: 2-inch barrel for connection to 2-inch focusers and SCT adapter for connection to SCTs
• Barrel interior: Glare threaded and painted flat black
• Threads for filters: 2-inch barrel and 1. 25-inch stepdown adapter have 2-inch filter threads
• Weight: 538. 6g (with stepdown adapter)

Sizing

152. 4mm x 76. 2mm x 101. 6mm

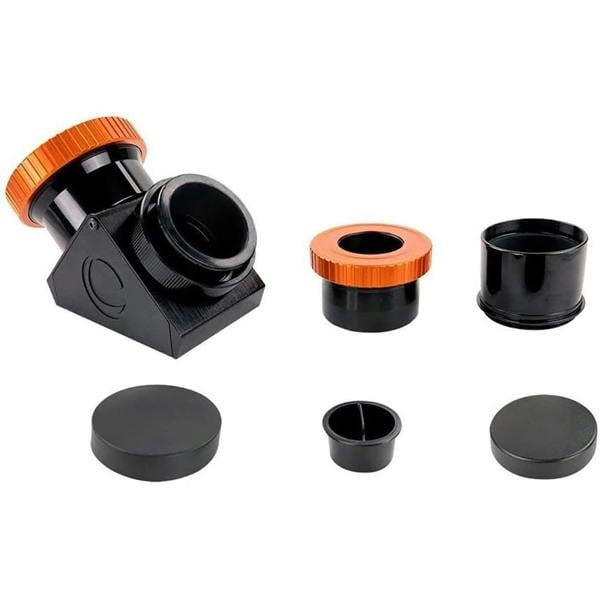

In the box

• 2-inch to 1. 25-inch stepdown adapter
• 2-inch barrel adapter
• SCT-threaded adapter

Support & warranty

• 2-year warranty

Rackhams Reference : M3STSIN41A
