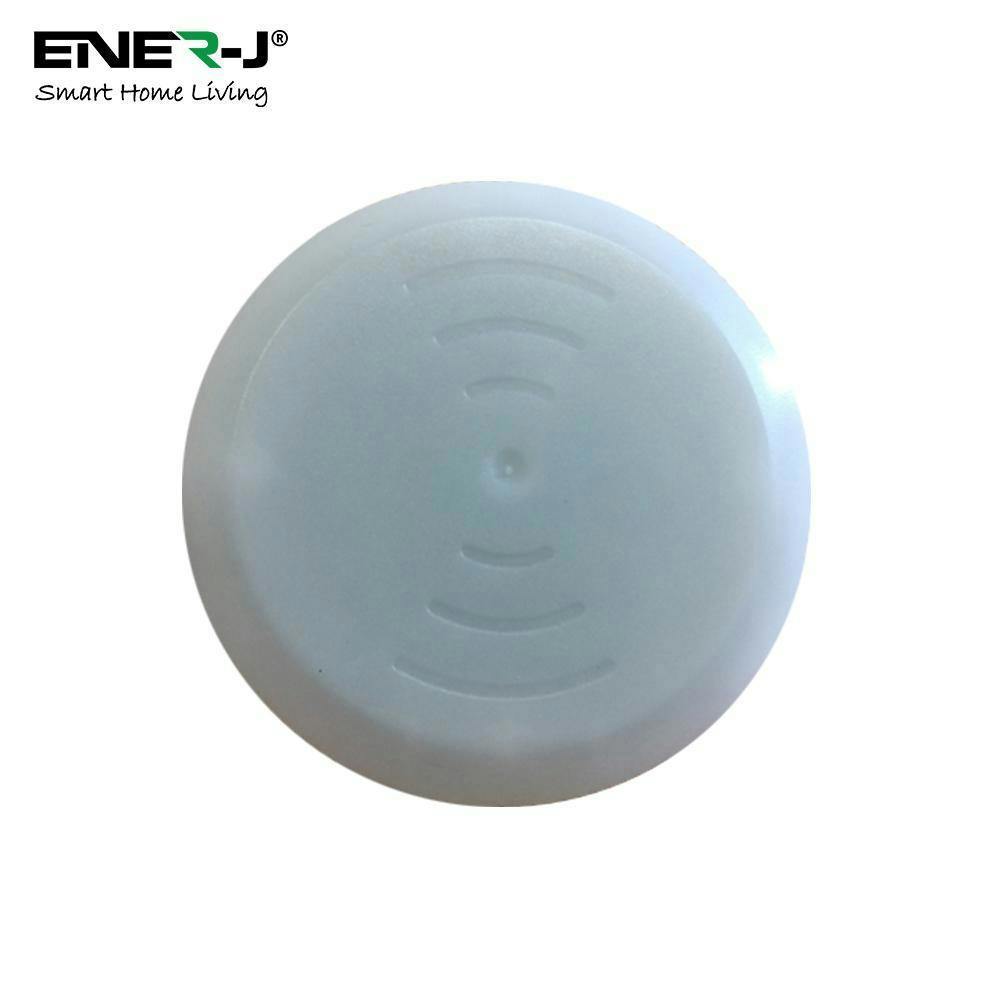

ENER-J MICROWAVE SENSOR FOR T338 & T339 UFO HIGHBAYS WITH 3 STEP DIMMING

Designed for compatibility with Premium UFO LED High Bays T338 and T339, the Ener-J Microwave Motion Sensor adds responsive control to your lighting setup. Using a 5. 8GHz CW radar HF system, it detects movement across a wide detection angle and range, helping to manage light output with 3-step dimming for indoor installations.

Suitable for ceiling or wall mounting, this sensor includes adjustable settings for hold time, stand-by period and stand-by dimming level, alongside a daylight sensor that can be set across a broad lux range or disabled. With low power consumption and a 12VDC operating voltage, it is a practical choice for tailored lighting control where compatible high bay fittings are already in place.

Key features

• Compatible with Premium UFO LED High Bays T338 and T339 only
• Product type: Microwave Motion Sensor
• HF system: 5. 8GHz CW radar
• 3-step dimming
• Indoor mounting for ceiling or wall installation

Specifications

• Operating voltage: 12VDC/50mA
• Detection angle: 30 ~ 150
• Power consumption: <1W
• Detection range (DxH): Max. 16 x 12m
• Hold time: 30s ~ 30min.
• Daylight sensor: 2 ~ 500Lux; disable
• Stand-by period: 0s, 10s ~ 1h, + ∞
• Stand-by dimming level: 10% ~ 50%
• Working temp: -20 ~ +60

Rackhams Reference : AW1DC79U73
