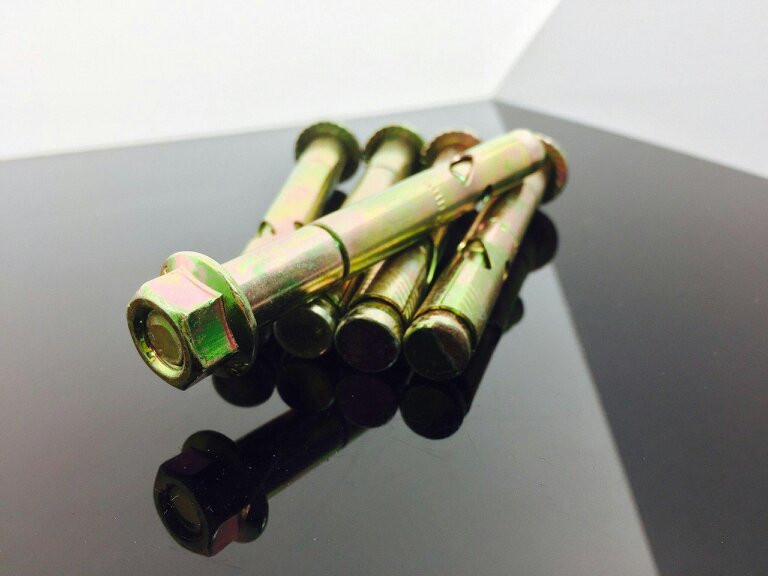

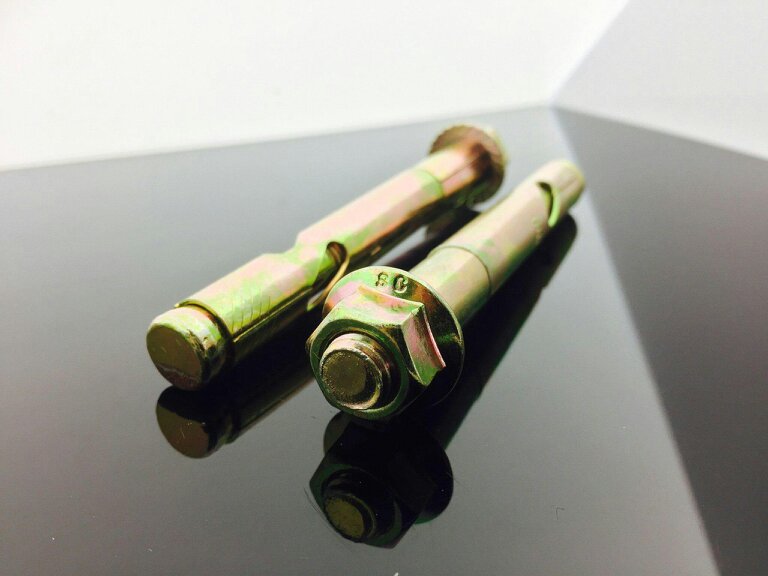

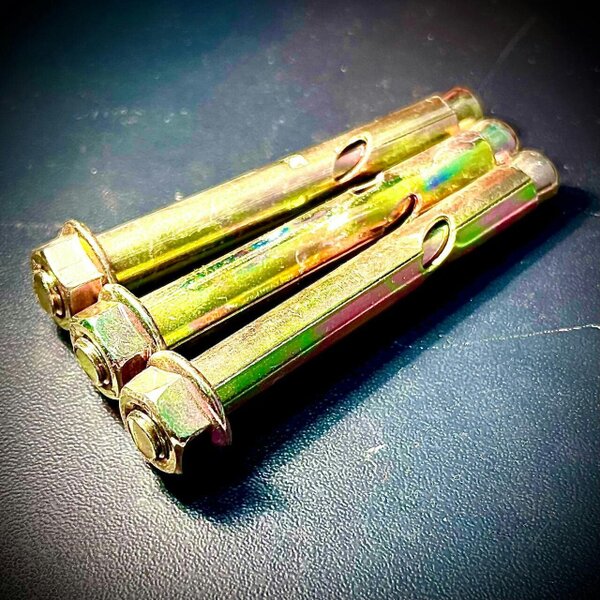

Fixaball 10mm Sleeve Masonry Anchors ZYP Nut Type

For masonry fixings in dry conditions, Fixaball sleeve anchors provide a zinc plated expansion fixing for brick, block, concrete and stone. This NUT type anchor uses an M8 thread with a 10mm anchor hole size, and is suitable for concrete, non-porous stone, brickwork, perforated bricks and dense concrete blocks.

The thin-walled sleeve includes a diagonal slot that pulls down small gaps as the nut is tightened, creating a positive clamping force through the fixture. Installation is straightforward: drill the correct size hole, clean the hole, insert the anchor and tighten the nut, taking care not to overtighten.

Available options

• 50mm length
• 75mm length
• 100mm length
• 125mm length

Key features

• Diameter: 10mm
• Thread size: M8
• Material finish: zinc plated
• Suitable for brick, block, concrete and stone
• NUT type sleeve anchor

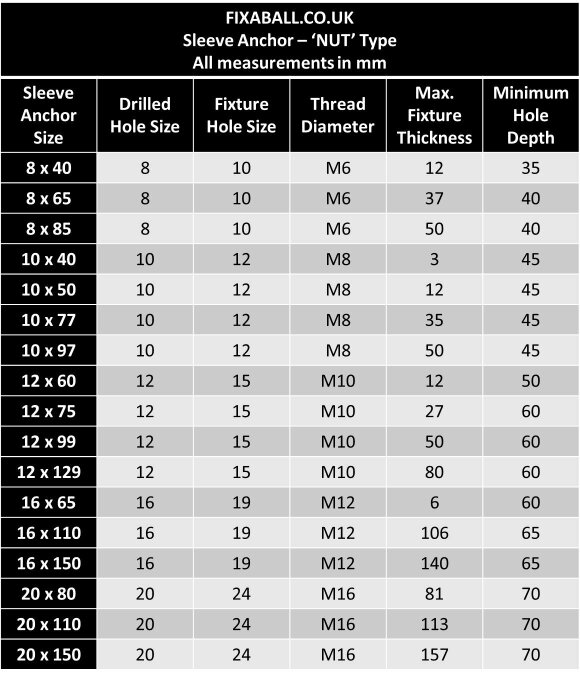

Specifications

• Anchor hole size: 10mm
• Fixture hole size: 12
• Minimum hole depth: 45

Sizing

• 10 x 40
• 10 x 50
• 10 x 75
• 10 x 100
• 10 x 125

Care and maintenance

Use in dry conditions. Wet conditions will negatively affect reliability and can lead to earlier failure.

Safety information

Avoid overtightening the nut.
