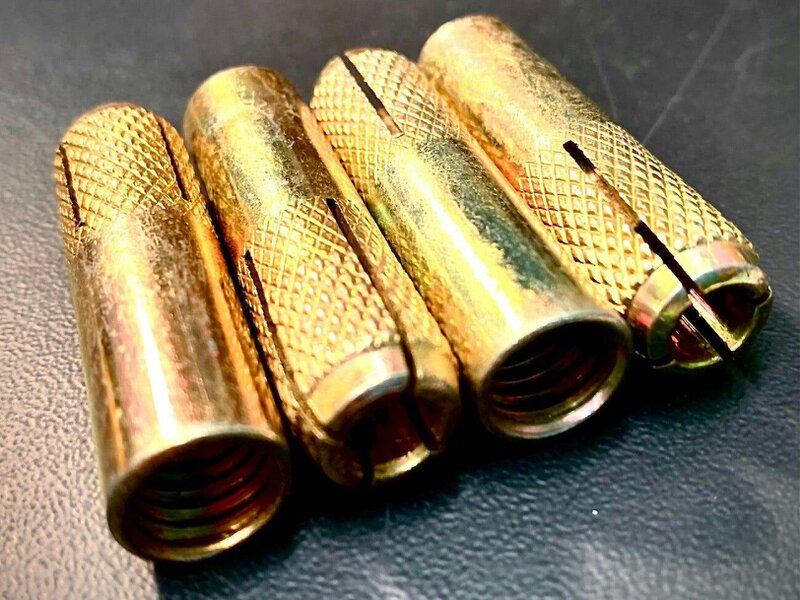

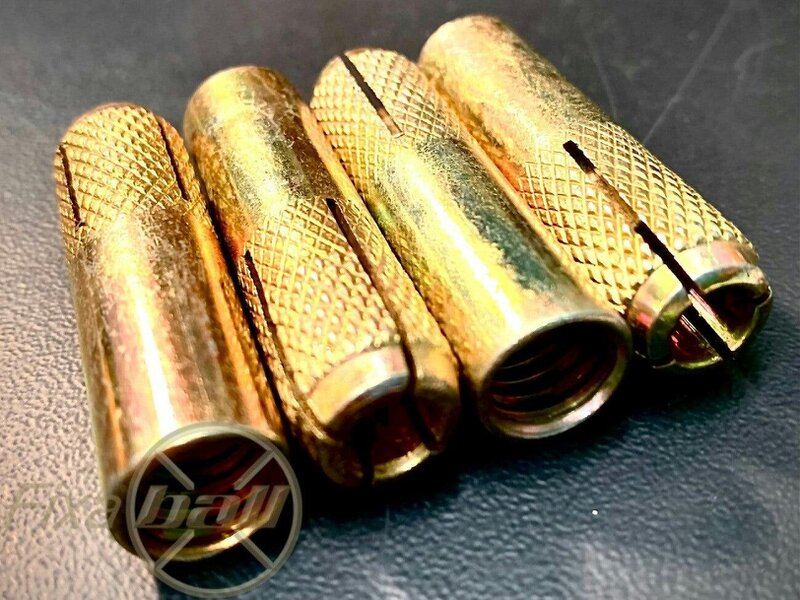

Fixaball M16 Drop In Masonry Concrete Anchor Zinc

For flush fixing into solid concrete, the Fixaball drop-in anchor provides an internally threaded expansion anchor with an M16 thread and zinc-plated finish. It suits use with bolts or threaded rod of any length and is intended for masonry, brick, concrete and non-porous stone, with suitability for use in solid concrete.

Once installed, the anchor remains in place when the fixture is removed. Full expansion is achieved with the correct shouldered setting punch, while setting tool stamp marks and a visual check indicate complete expansion. Typical applications include mechanical and electrical services, suspension systems, cable trays, signs and hand rails.

Key features

• Internal thread diameter: M16
• Zinc plated
• Internally threaded socket anchor
• Suitable for masonry, brick, concrete and non-porous stone
• Suitable for use in solid concrete
• Flush fitting with no protrusion when not in use
• Can be used with bolts, screws and studs

Specifications

• Anchor hole size: 20mm
• Anchor minimum length: 65mm
• Minimum hole depth: 65mm
• Internal thread length: 22mm

Sizing

65mm

Safety information

• Drill the correct diameter hole and depth.
• Clear the hole of all debris with a brush and blow out pump before installation.
• Use the relevant setting tool of the same diameter as the anchor until it makes contact with the cone.
• Tighten to the recommended torque using a torque wrench.
