Fixaball Chemical Anchor Resin Studs A2/ 304 Stainless JCP

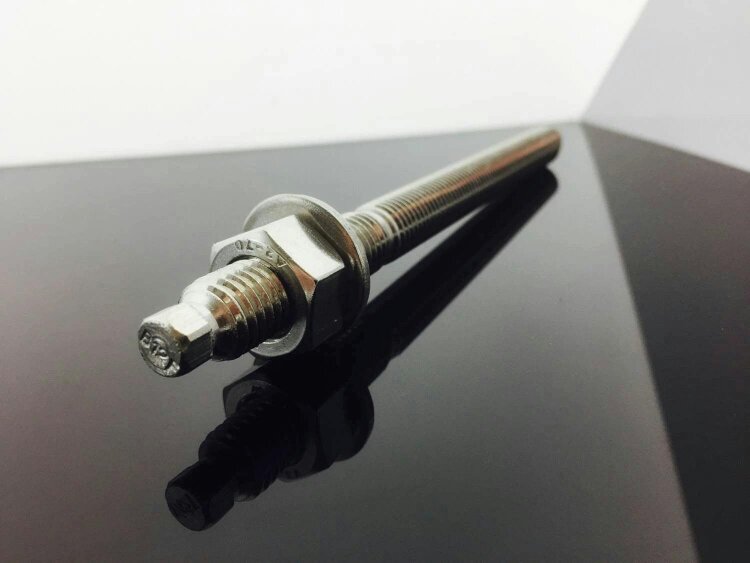

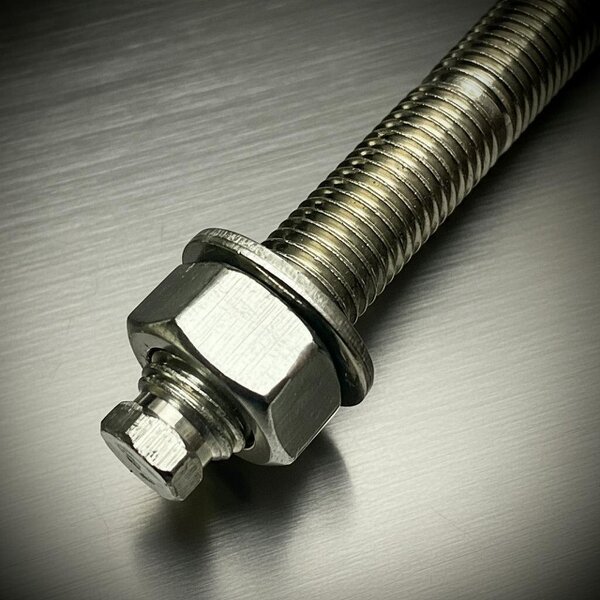

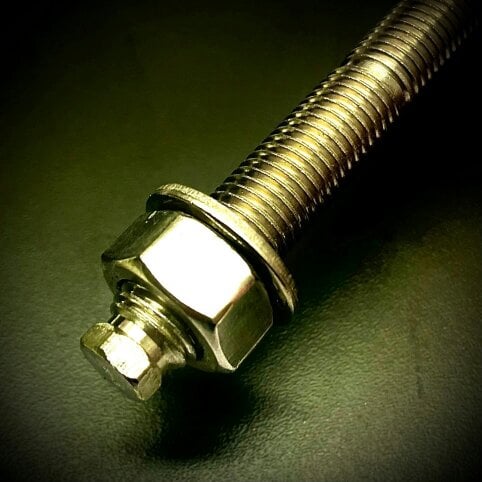

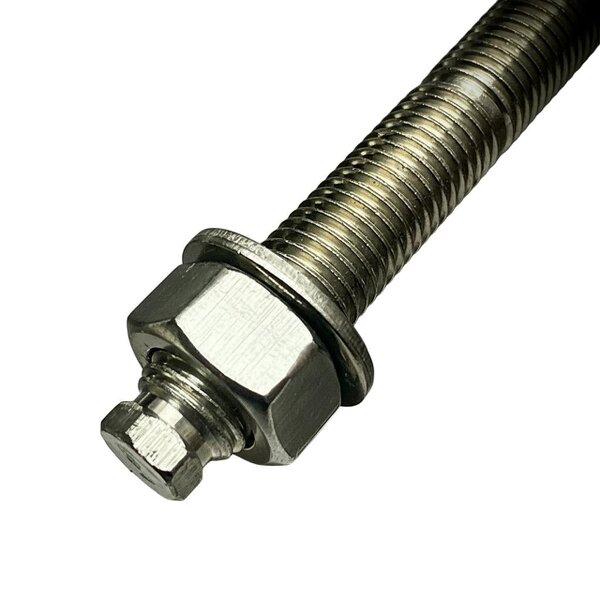

For resin-based fixing applications, these JCP chemical anchor studs from Fixaball are manufactured from A2/304 stainless steel and feature a chisel tip. They are approved for use with both capsules and injection resin, offering compatibility across a range of fixing requirements including guard rails, staircases, steel consoles, masts, façades and steelwork constructions.

Sizes available cover M8, M10, M12, M16, M20 and M24, with corresponding anchor lengths from 110mm to 300mm. This range also includes stated anchor hole diameters and maximum fixture thicknesses for each size.

Key features

• A2/304 stainless steel chemical anchor studs
• Chisel tip
• Approved for use with capsules and injection resin
• Suitable for guard rails, silo installations, staircases, steel consoles, masts, skirting protection, anchoring heavy machines, façades and steelwork constructions

Available options

• M8 x 110
• M10 x 130
• M12 x 160
• M16 x 190
• M20 x 260
• M24 x 300

Specifications

• M8: anchor hole diameter 10, maximum fixture thickness 18mm, anchor length 110mm
• M10: anchor hole diameter 12, maximum fixture thickness 25mm, anchor length 130mm
• M12: anchor hole diameter 14, maximum fixture thickness 34mm, anchor length 160mm
• M16: anchor hole diameter 18, maximum fixture thickness 45mm, anchor length 190mm
• M20: anchor hole diameter 25, maximum fixture thickness 55mm, anchor length 260mm
• M24: anchor hole diameter 28, maximum fixture thickness 67mm, anchor length 300mm

Sizing

• 8 x 110
• 10 x 130
• 12 x 160
• 16 x 190
• 20 x 260
• 24 x 300

Care and maintenance

• Check that the substrate is stable before fixing.
• Drill holes square and to a minimum depth of the anchor length - maximum fixture thickness + 10mm.
• Clean each hole with the correct sized brush and blow out dust before installation.
• Use a suitable chemical resin.
• Turn the stud gently while depressing it downwards, sitting around 10mm from the bottom of the hole.

Safety information

Missing installation details will impair the performance of the stud, potentially making it unsafe.
