Fixaball Chemical Anchor Resin Studs Plain Tip Grade 4.8 BZP Zinc

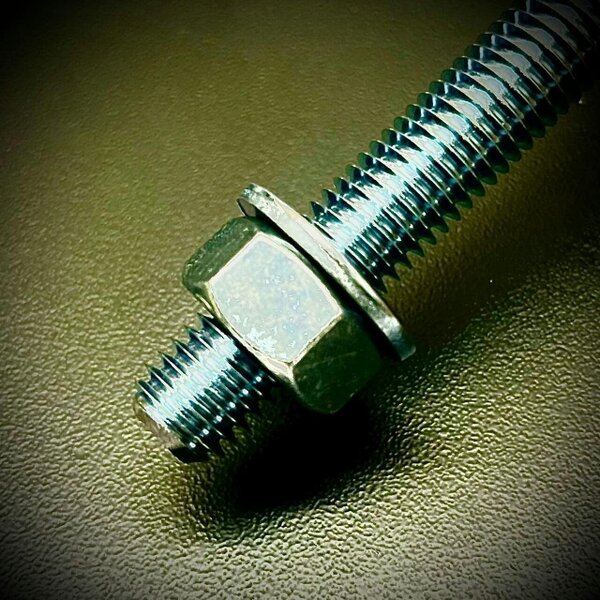

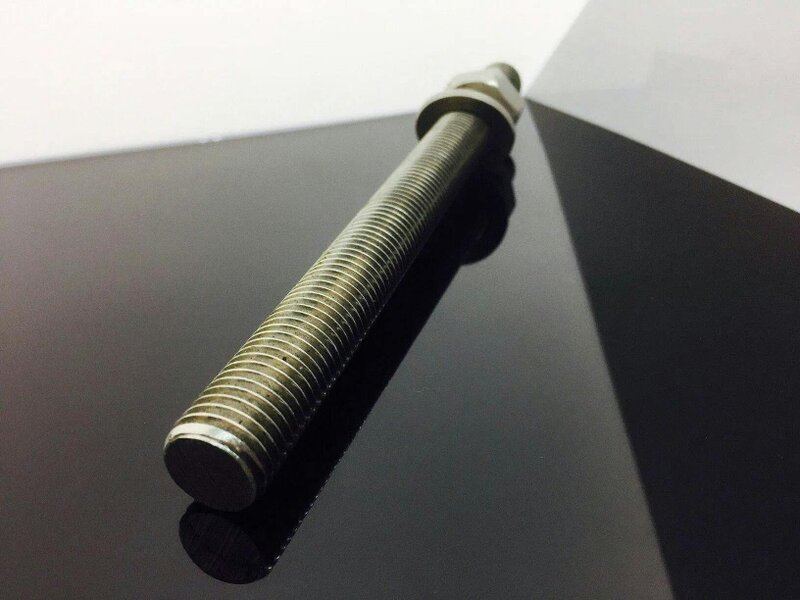

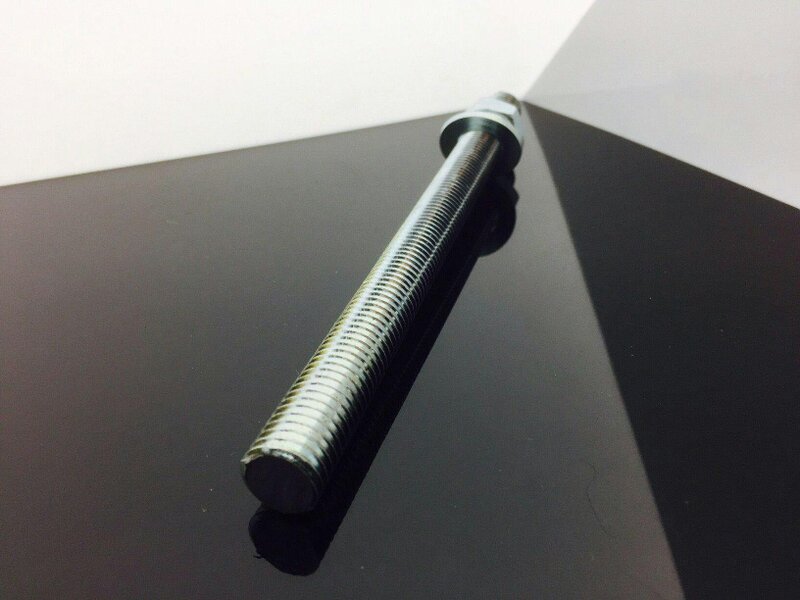

For resin-fixed structural and installation work, these Fixaball plain end chemical anchor studs are manufactured from grade 4.8 steel with a BZP zinc plated and clear passivated finish. Each stud is supplied with a nut and washer and is intended for use with a suitable chemical resin.

Suitable applications listed in the source include guard rails, silo installations, staircases, steel consoles, masts, skirting protection, anchoring heavy machines, façades and steelwork constructions. Plain tip studs are not suitable for use with spin in capsules.

Available options

• 8 x 150
• 10 x 105
• 10 x 150
• 10 x 200
• 12 x 110
• 12 x 150
• 12 x 200
• 16 x 110
• 16 x 250
• 16 x 350
• 20 x 200
• 20 x 400

Key features

• Grade 4.8 steel
• BZP zinc plated and clear passivated finish

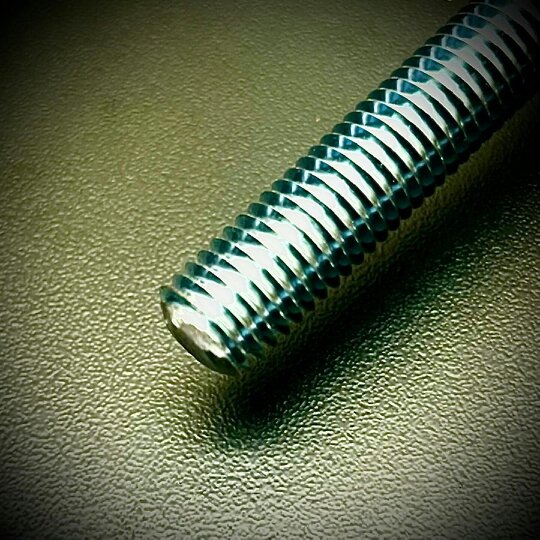

• Plain end stud
• Supplied with nut and washer
• For use with suitable chemical resin

Specifications

• 8 x 150: anchor hole diameter 10, maximum fixture thickness 30mm, anchor length 150mm
• 10 x 105: anchor hole diameter 12, maximum fixture thickness 10mm, anchor length 105mm
• 10 x 150: anchor hole diameter 12, maximum fixture thickness 30mm, anchor length 150mm
• 10 x 200: anchor hole diameter 12, maximum fixture thickness 45mm, anchor length 200mm
• 12 x 110: anchor hole diameter 14, maximum fixture thickness 18mm, anchor length 110mm
• 12 x 150: anchor hole diameter 14, maximum fixture thickness 30mm, anchor length 150mm
• 12 x 200: anchor hole diameter 14, maximum fixture thickness 45mm, anchor length 200mm
• 16 x 110: anchor hole diameter 18, maximum fixture thickness 15mm, anchor length 110mm
• 16 x 250: anchor hole diameter 18, maximum fixture thickness 50mm, anchor length 250mm
• 16 x 350: anchor hole diameter 18, maximum fixture thickness 70mm, anchor length 350mm
• 20 x 200: anchor hole diameter 25, maximum fixture thickness 45mm, anchor length 200mm
• 20 x 400: anchor hole diameter 25, maximum fixture thickness 70mm, anchor length 400mm

What's included

Nut and washer

Safety information

• Installation by a trained person who has surveyed the substrate properly and has the tools and machinery to create the correct depth, square and clean hole.
• Check that the substrate is stable before fixing.
• Drill holes to a minimum depth of the anchor length - maximum fixture thickness + 10mm.
• Clean the hole with the correct sized brush and blow out dust before installation.
• Missing installation details will impair the performance of the stud, potentially making it unsafe.
• Plain tip studs are not suitable for use with spin in capsules.

Rackhams Reference : FSM3VRNL58
