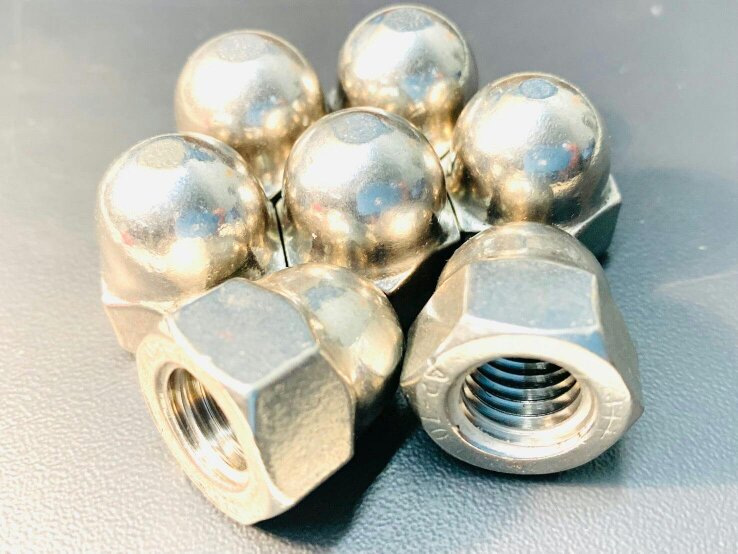

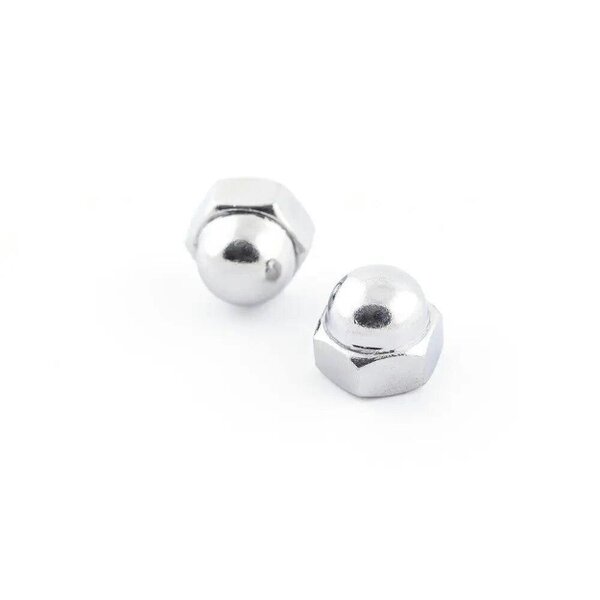

Fixaball Dome Nuts Stainless Steel A2 304 High Type DIN 1587 M3 - M24

For a neat, enclosed finish on exposed threads, Fixaball dome cap nuts are supplied in high type A2/304 stainless steel with a standard metric coarse thread. Manufactured to DIN 1587, these hexagonal dome nuts have a six-sided base beneath the cap and suit a wide range of metric fastener sizes from M3 to M24.

The A2/304/18:8 stainless steel construction contains iron, 18% chromium and 8% nickel, with general outdoor resistance to weathering. Sizes refer to the diameter of the fastener they fit.

Key features

• Material: A2/type-304/18:8 stainless steel
• High type dome cap nut
• Hexagonal beneath the dome with 6 sides
• Thread: standard metric coarse thread
• Standard: DIN 1587

Available options

• M3
• M4
• M5
• M6
• M8
• M10
• M12
• M14
• M16
• M18
• M20
• M24

Specifications

• Bolt diameter: 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20
• Thread pitch: 0.5, 0.7, 0.8, 1, 1.25, 1.5, 1.75, 2, 2, 2.5, 2.5
• Spanner size: 5.5, 7, 8, 10, 13, 17, 19, 22, 24, 27, 30

Rackhams Reference : FSKD79TWJ1
