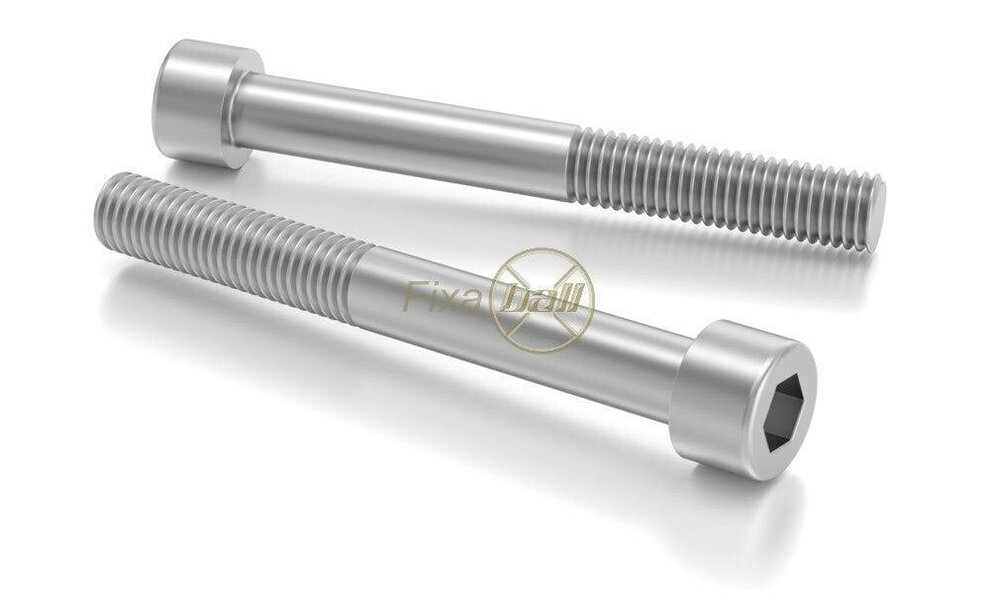

Fixaball M10 Socket Cap Allen Screw Bolt A4/ 316 Stainless Steel DIN912

For corrosion-resistant fastening in metric applications, this Fixaball socket cap screw is made from A4/316 stainless steel and produced to DIN 912. It features an M10 metric coarse thread with a 1.5mm pitch, an Allen socket cap head, and a plain finish with no coating.

The head diameter is 16mm, head height is 10mm, and it takes an 8mm Allen key. Length options are available from M10 x 16 up to M10 x 100, with bolt length measured excluding the head.

Key features

• M10 metric coarse thread
• Thread pitch: 1.5mm
• Material: A4/316 stainless steel
• Finish: none
• Standard: DIN 912

Available options

• M10 x 16
• M10 x 20
• M10 x 25
• M10 x 30
• M10 x 35
• M10 x 40
• M10 x 45
• M10 x 50
• M10 x 55
• M10 x 60
• M10 x 65
• M10 x 70
• M10 x 75
• M10 x 80
• M10 x 85
• M10 x 90
• M10 x 95
• M10 x 100

Sizing

• Head diameter: 16mm
• Head height: 10mm
• Allen key size: 8mm
• Bolt lengths do not include the head

Rackhams Reference : NLE5YA9E3R
