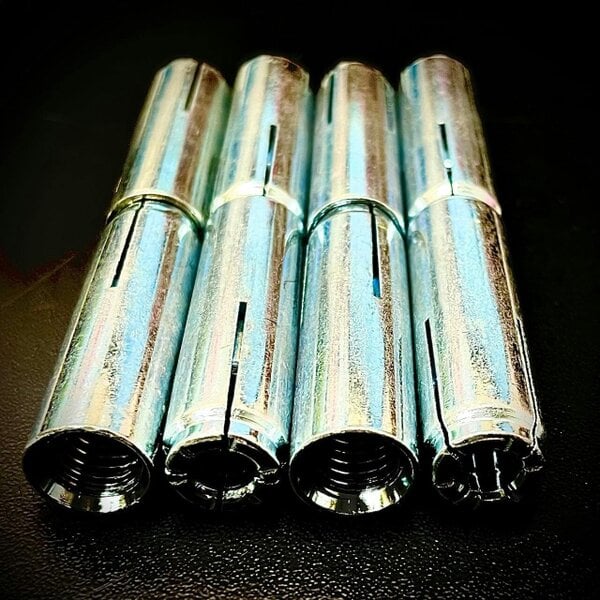

Fixaball Drop In Anchor BZP ETA Approved Masonry M8 M10 M12 M16

For flush-set fixings in solid base materials, the Fixaball drop-in anchor provides an ETA/CE approved expansion anchor for masonry, brick, concrete and non-porous stone. It is suitable for mechanical and electrical services, suspension systems, cable trays, signs and hand rails, with a flush fitting that leaves no protrusion when not in use.

Shallow embedment reduces drilling depth, while the anchor remains in place when the fixture is removed. Setting tool stamp marks provide an indication of complete expansion, and the anchor can be used with bolts, screws and studs.

Key features

• ETA/CE approved
• BZP finish
• Suitable for masonry, brick, concrete and non-porous stone
• Flush fitting with no protrusion when not in use
• Shallow embedment
• Compatible with bolts, screws and studs

Specifications

• Applications: light to heavy-duty into solid concrete, mechanical and electrical services, suspension systems (ceilings), cable trays, signs, hand rails
• Setting tool stamp marks indicate complete expansion
• Visual expansion check with setting tool
• All specifications are true with correct installation

Sizing

• M6: masonry drill diameter 8mm, hole depth 26mm, minimum screw embedment 11mm
• M8: masonry drill diameter 10mm, hole depth 32mm, minimum screw embedment 13mm
• M10: masonry drill diameter 12mm, hole depth 42mm, minimum screw embedment 17mm
• M12: masonry drill diameter 16mm, hole depth 53mm, minimum screw embedment 22mm

Safety information

• Drill the correct diameter hole and depth.
• Clear the hole of all debris with a brush and blow out pump before installation.
• Use the relevant setting tool of the same diameter as the anchor until it makes contact with the cone.
• Tighten to the recommended torque using a torque wrench.
• If anchors are installed too close together, interaction of forces can reduce holding power.
