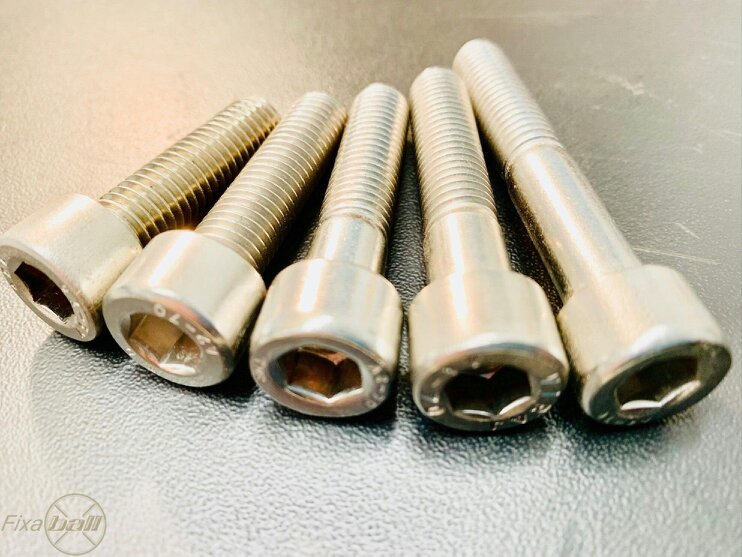

Fixaball M2.5 Socket Cap Allen Screw Bolt A2/304 Stainless Steel DIN 912

For compact fastening applications, this Fixaball socket cap screw is made from A2/304 stainless steel and produced to DIN 912 and ISO 4762. It features an M2.5 metric coarse thread with a 0.45mm pitch, a cylindrical head, and a 2mm hex socket for use with an Allen key.

The head diameter is 4mm and the head height is 2.5mm. Length options run from M2.5 x 3 to M2.5 x 40, with bolt lengths measured excluding the head. A2/304 stainless steel has a dull shine finish and is suited to external use with intermittent weathering.

Available options

• M2.5 x 3
• M2.5 x 4
• M2.5 x 5
• M2.5 x 6
• M2.5 x 10
• M2.5 x 12
• M2.5 x 14
• M2.5 x 16
• M2.5 x 18
• M2.5 x 20
• M2.5 x 22
• M2.5 x 25
• M2.5 x 30
• M2.5 x 40

Key features

• Material: A2/304 stainless steel
• Finish: none
• Thread: metric coarse M2 x 0.45mm pitch
• Standard: DIN 912 / ISO 4762
• Allen key size: 2mm
• Model number: M2.5 Socket Cap Allen Screw Bolt A2/304 Stainless Steel DIN 912

Sizing

• Head diameter: 4mm
• Head height: 2.5mm
• Lengths available: M2.5 x 3, M2.5 x 4, M2.5 x 5, M2.5 x 6, M2.5 x 10, M2.5 x 12, M2.5 x 14, M2.5 x 16, M2.5 x 18, M2.5 x 20, M2.5 x 22, M2.5 x 25, M2.5 x 30, M2.5 x 40

Please note: bolt lengths do not include the head.
