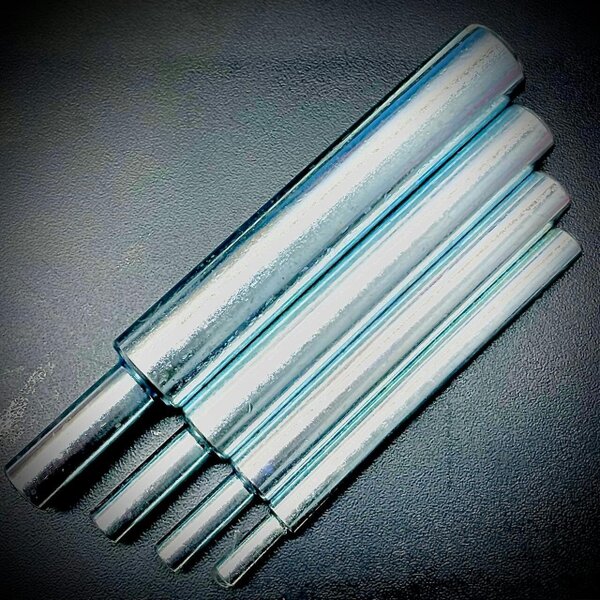

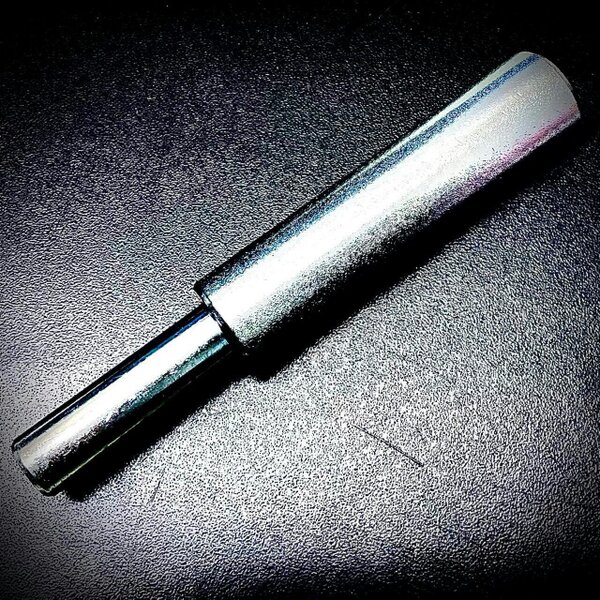

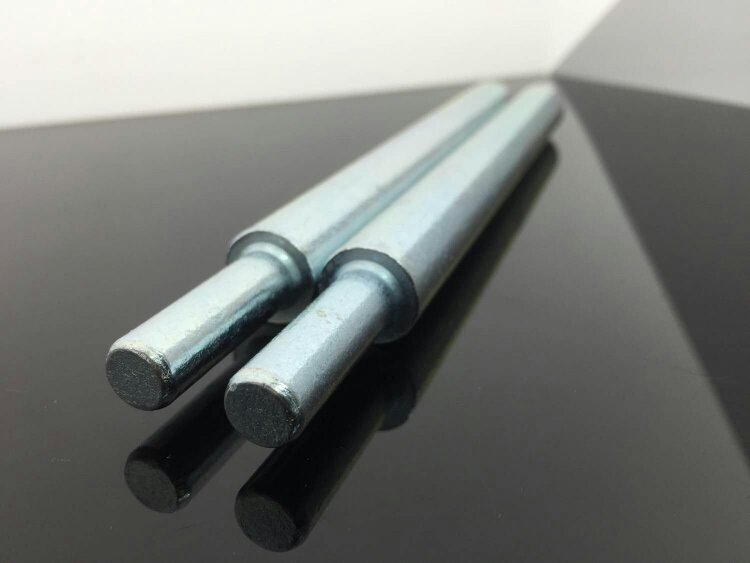

Fixaball Drop In Anchor Setting Tool M16 Zinc BZP

For setting drop-in anchors in masonry, brick, concrete and stone, this Fixaball setting tool matches M16 anchors. It is used to drive the internal expander into position so the anchor opens correctly within the drilled hole.

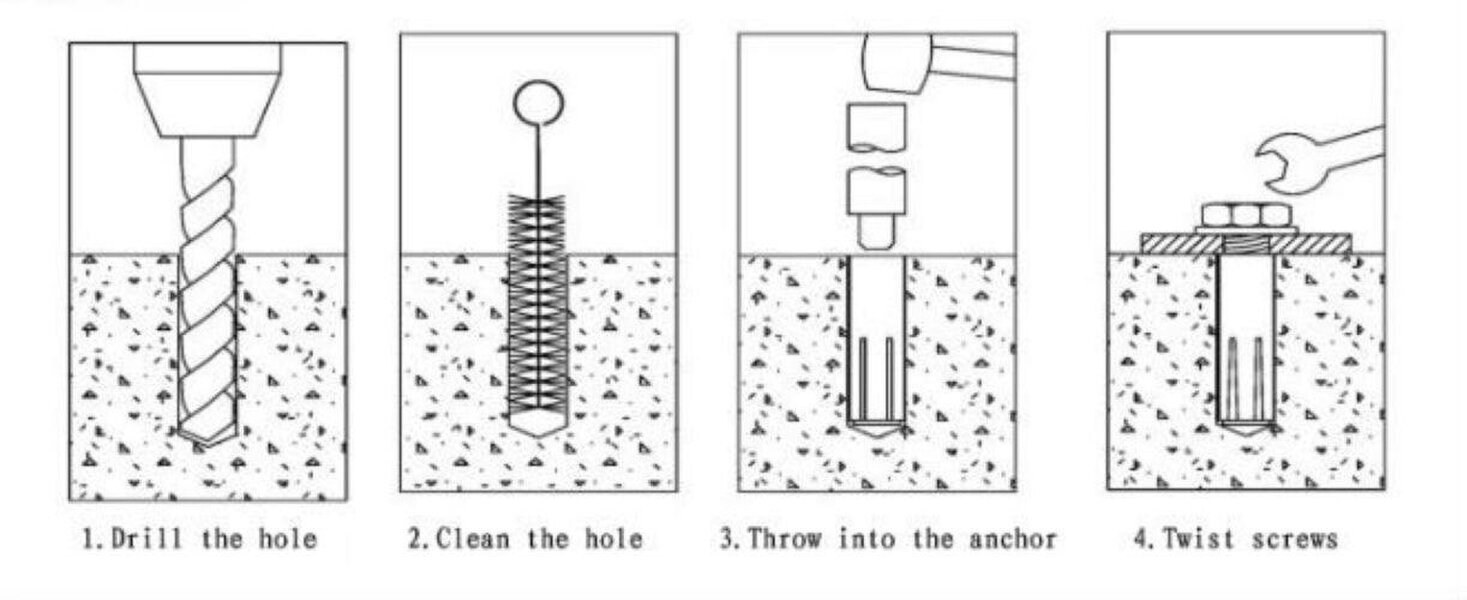

Installation involves placing the anchor flush in the prepared hole, inserting the matching setting tool until it contacts the cone, and striking it square with a hammer. Hammering stops when the expander shoulder rests against the anchor or when it is blocked in hard concrete.

Key features

• Suitable for M16 drop-in anchors
• Zinc BZP finish
• For use in masonry, brick, concrete and stone
• Used to activate the anchor grip by expanding the sides within the hole

Available options

• M6
• M8
• M10
• M12
• M16
• M20

Specifications

• M6: masonry drill diameter 8, hole depth 26, minimum screw embedment 11
• M8: masonry drill diameter 10, hole depth 32, minimum screw embedment 13
• M10: masonry drill diameter 12, hole depth 42, minimum screw embedment 17
• M12: masonry drill diameter 16, hole depth 53, minimum screw embedment 22

Safety information

• Use a hammer drill and a carbide tipped masonry drill bit matched to the outside diameter of the drop-in anchor being used.
• Clear the hole of debris with a brush and blow out pump before installation.
• Tighten to the recommended torque using a torque wrench.
