Fixaball Drop In Wedge Anchor Setting Tool Punch M6 M8 M10 M12 M16 M20

For installing drop-in anchors in concrete, the Fixaball drop-in anchor setting tool range is available in M6, M8, M10, M12, M16 and M20 sizes. These setting punches are offered with hand guard protection on selected sizes, with M6, M8, M10 and M12 supplied with a hand guard, and M16 and M20 supplied without.

Used with the matching anchor diameter, the tool is struck with a hammer to drive the internal cone and expand the anchor within the drilled hole. This range suits concrete fixing work where the correct setting tool is required for the anchor size being installed.

Available options

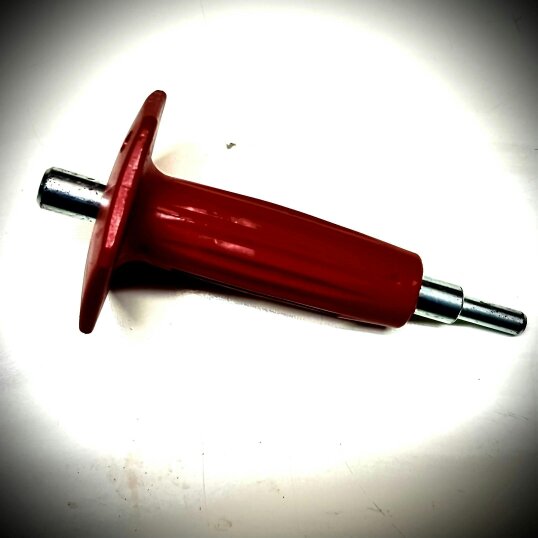

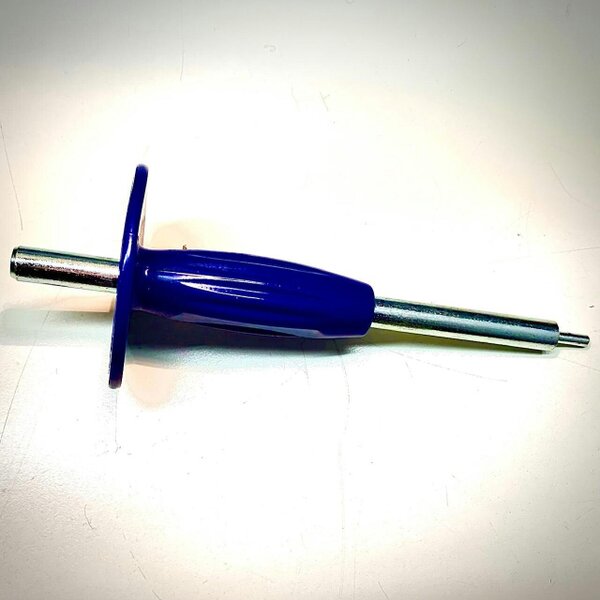

• 6mm drop-in anchor setting punch with hand guard
• 8mm drop-in anchor setting punch with hand guard
• 10mm drop-in anchor setting punch with hand guard
• 12mm drop-in anchor setting punch with hand guard
• 16mm drop-in anchor setting punch without hand guard
• 20mm drop-in anchor setting punch without hand guard

Key features

• Available in M6, M8, M10, M12, M16 and M20
• Hand guard protection on M6, M8, M10 and M12
• No hand guard on M16 and M20
• For use with matching diameter drop-in anchors

Specifications

• M6: masonry drill diameter 8, hole depth 26, minimum screw embedment 11
• M8: masonry drill diameter 10, hole depth 32, minimum screw embedment 13
• M10: masonry drill diameter 12, hole depth 42, minimum screw embedment 17
• M12: masonry drill diameter 16, hole depth 53, minimum screw embedment 22

Safety information

• Use the relevant setting tool with the same diameter as the anchor.
• Strike the tool square with a hammer.
• Stop hammering when the expander shoulder rests against the anchor or when it is blocked in hard concrete.
• Tighten to the recommended torque using a torque wrench.
