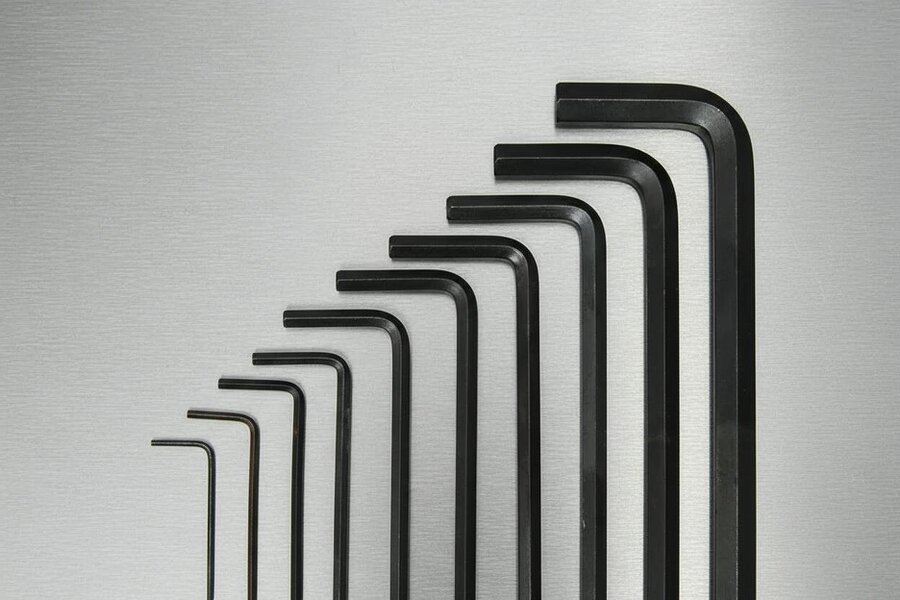

Fixaball Hexagon Socket Key Allen Key Short Arm Metric

For compact access to metric socket screws, the Fixaball short arm Allen key offers an L-shaped hexagon socket key format suited to restricted spaces. Manufactured from hardened and tempered chrome vanadium steel, it has a chemically blacked finish and chamfered ends.

Each key is sized for corresponding socket head cap screws to ISO 4762/DIN 912 standards. Either end can be used, allowing a choice between reach and torque depending on the application.

Key features

• Short arm metric hexagon socket key
• Hardened and tempered chrome vanadium steel
• Chemically blacked finish
• Chamfered ends
• L-shaped form

Specifications

• Suitable for corresponding socket head cap screws to ISO 4762/DIN 912 standards
• Six contact surfaces between bolt and driver
• Either end of the key can be used

Available options

• M3 socket screw size / 2.5 Allen key size
• M4 socket screw size / 3 Allen key size
• M5 socket screw size / 4 Allen key size
• M6 socket screw size / 5 Allen key size
• M8 socket screw size / 6 Allen key size
• M10 socket screw size / 8 Allen key size
• M12 socket screw size / 10 Allen key size
• M14 socket screw size / 12 Allen key size
• M16 socket screw size / 14 Allen key size
• M18 socket screw size / 14 Allen key size
• M20 socket screw size / 17 Allen key size
• M22 socket screw size / 17 Allen key size
• M24 socket screw size / 19 Allen key size

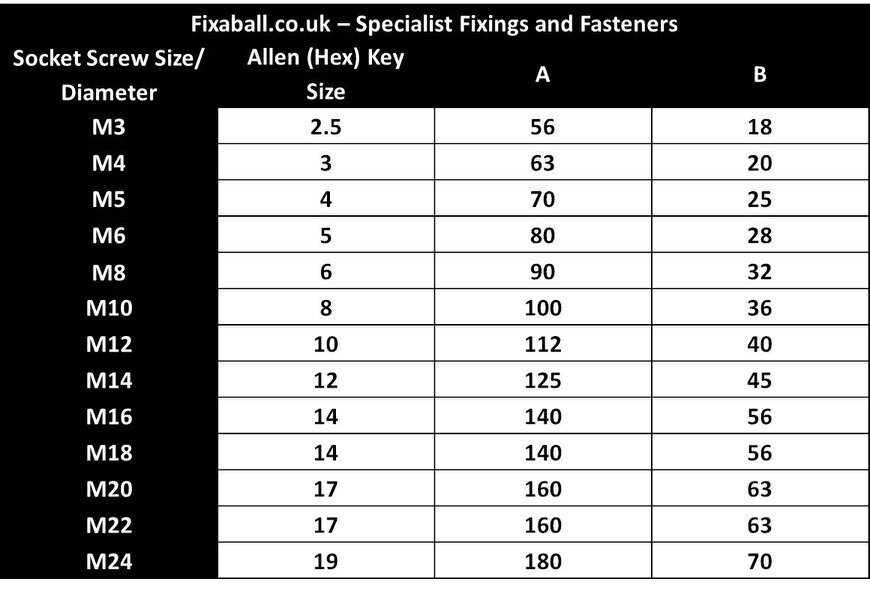

Sizing

• M3: 56 long shank, 18 short shank
• M4: 63 long shank, 20 short shank
• M5: 70 long shank, 25 short shank
• M6: 80 long shank, 28 short shank
• M8: 90 long shank, 32 short shank
• M10: 100 long shank, 36 short shank
• M12: 112 long shank, 40 short shank
• M14: 125 long shank, 45 short shank
• M16: 140 long shank, 56 short shank
• M18: 140 long shank, 56 short shank
• M20: 160 long shank, 63 short shank
• M22: 160 long shank, 63 short shank
• M24: 180 long shank, 70 short shank

Care and maintenance

Worn ends can be reconditioned with an electric grinder by removing the worn section.

Rackhams Reference : 8CLUL2RPKG
