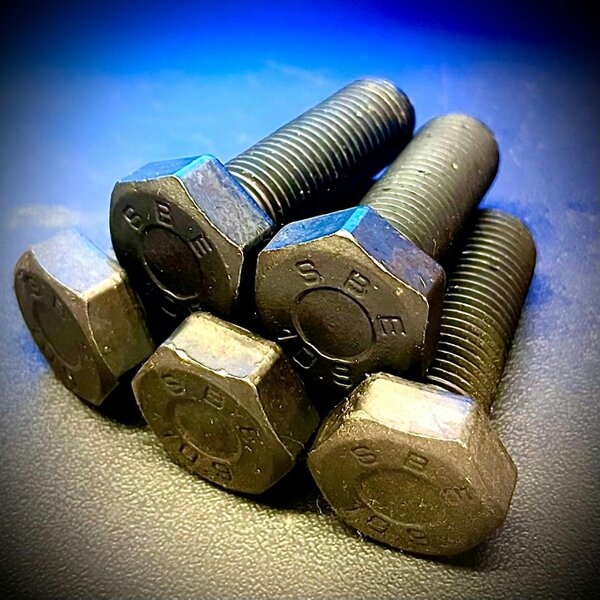

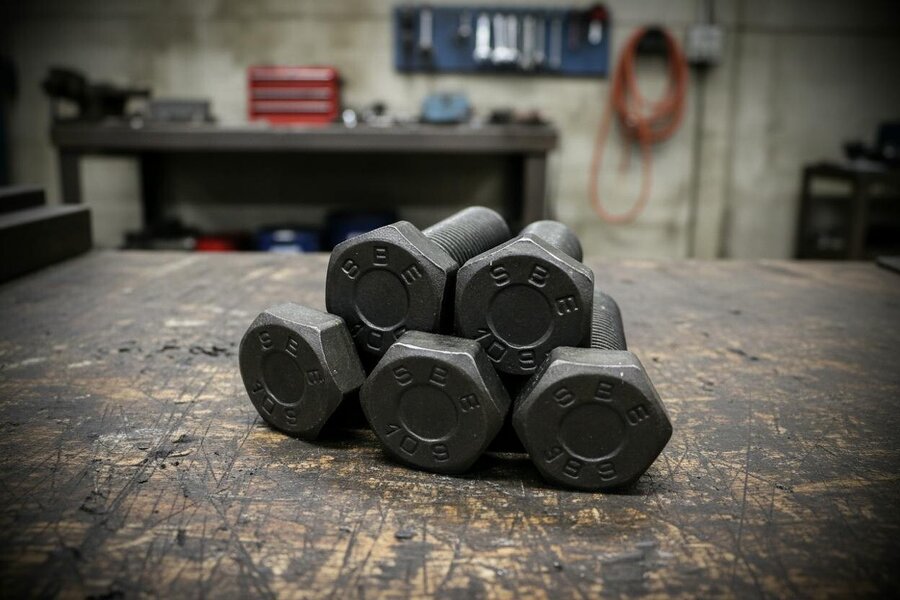

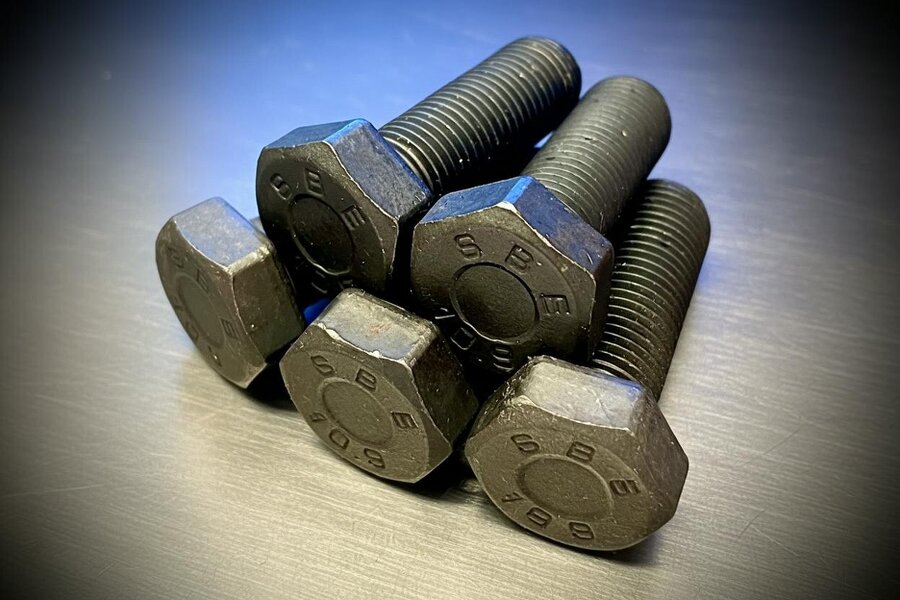

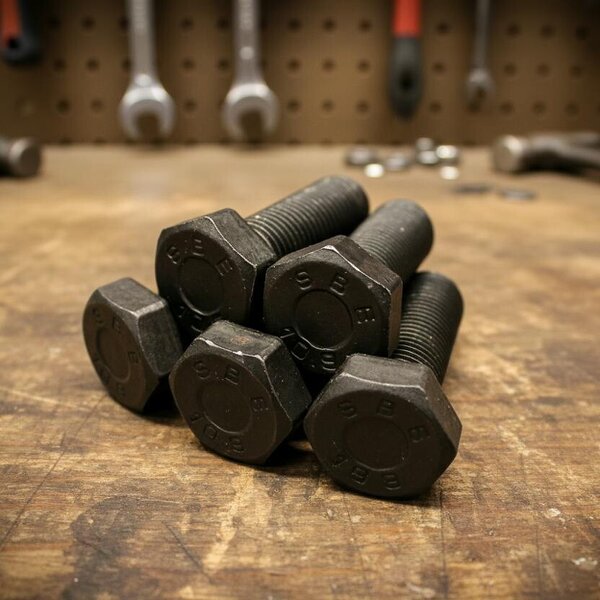

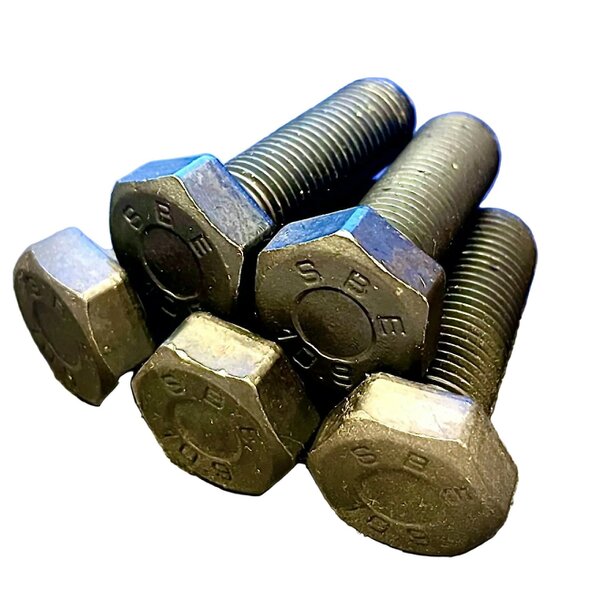

Fixaball Fine Pitch Hex Set Bolt High Tensile 10.9 Self Colour

For fine-threaded fastening applications, these Fixaball hexagon set screws are fully threaded and made to high tensile 10.9 specification with a self-colour finish. They are supplied in M10, M12, M14, M16, M18 and M20 sizes, with fine pitch threads and a hexagon head.

Suitable where a fully threaded fixing is required, this range includes multiple length options across the listed thread sizes. DIN 961 compliance is stated in the source, along with matching spanner sizes for each diameter.

Key features

• Fully threaded hexagon set screws
• High tensile 10.9
• Self-colour finish
• Fine pitch thread
• Thread sizes available: M10, M12, M14, M16, M18, M20
• Standard: DIN 961

Available options

• M10 (1.25) x 20
• M10 (1.25) x 25
• M10 (1.25) x 30
• M10 (1.25) x 40
• M12 (1.5) x 40
• M14 (1.5) x 30
• M14 (1.5) x 45
• M14 (1.5) x 50
• M16 (1.5) x 35
• M16 (1.5) x 45
• M16 (1.5) x 60
• M18 (1.5) x 50
• M20 (1.5) x 50

Specifications

• Head type: Hexagon head
• M10 spanner size: 17mm
• M12 spanner size: 19mm
• M14 spanner size: 22mm
• M16 spanner size: 24mm
• M18 spanner size: 27mm
• M20 spanner size: 30mm

Rackhams Reference : HP3UT3UT5D
