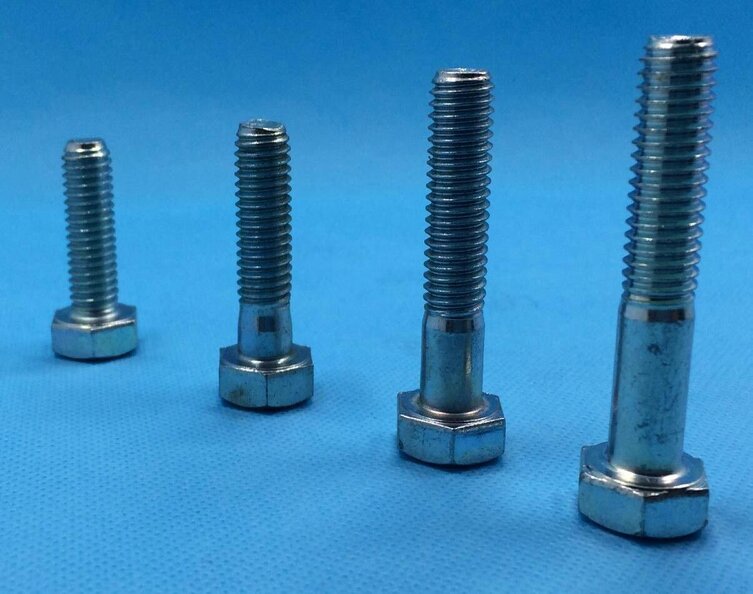

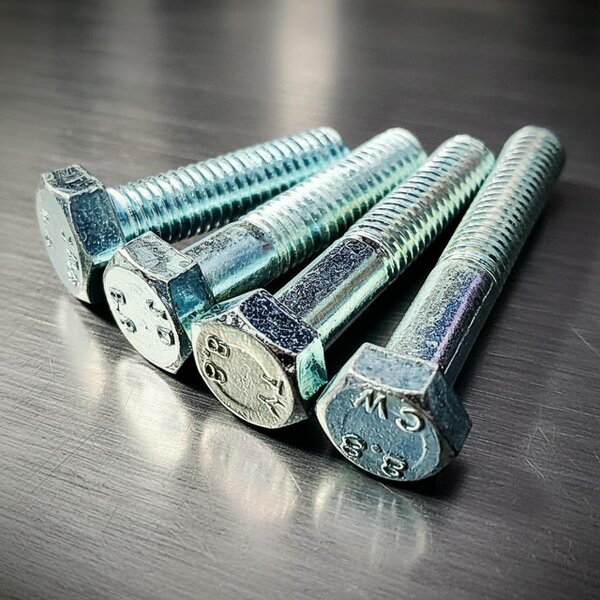

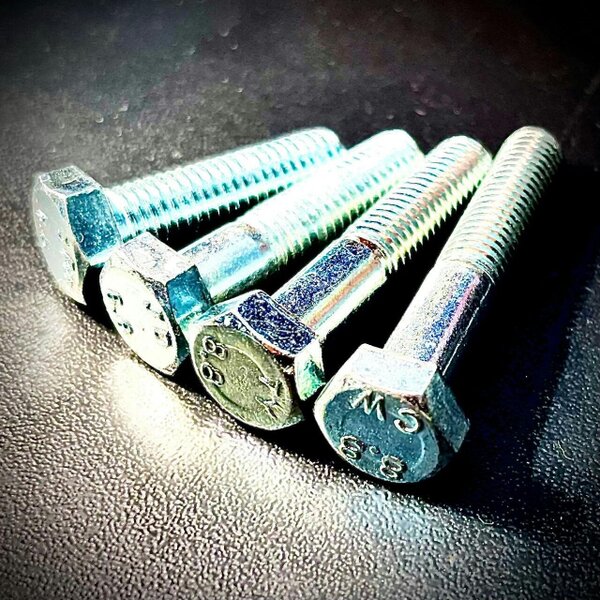

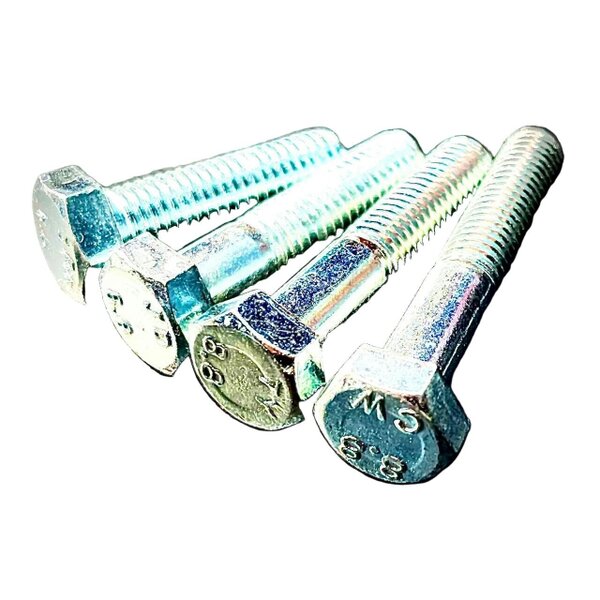

Fixaball M18 Hex Bolt High Tensile 8.8 BZP DIN 931

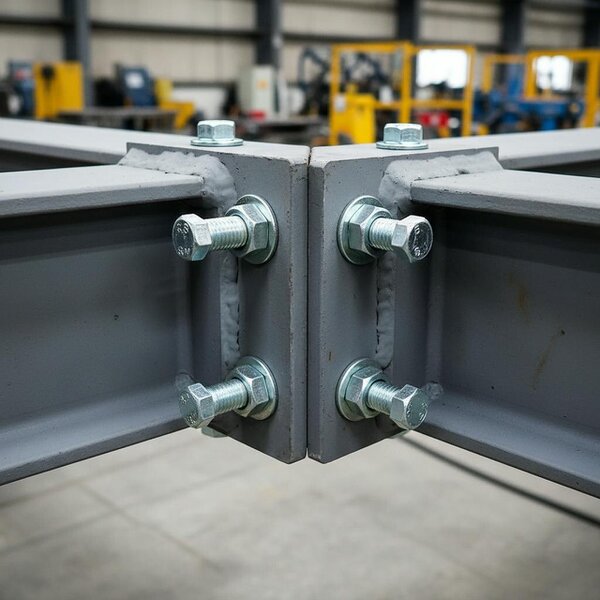

For structural fastening where a partially threaded fixing is required, this Fixaball M18 hexagon head bolt is manufactured in steel grade 8.8 with a zinc plated finish. It is a DIN 931 high tensile bolt with a part plain shank and metric coarse thread.

Suitable for use with a nut and washer, it is offered in a choice of lengths from 60 mm to 120 mm. The zinc coating adds moisture resistance to the steel and provides a bright finish for internal applications.

Key features

• M18 diameter
• Hexagon head bolt with part plain shank and partial thread
• Steel grade 8.8
• Zinc plated finish
• DIN 931
• Metric coarse thread

Specifications

• Thread pitch: 2.5
• Fine pitch: 2.0
• Super fine pitch: 1.5
• Width across flat (s): 26.67 min, 27.00 max
• DIN 931 thread length for lengths ≥125: 42
• DIN 931 thread length for lengths >125≥200: 48
• DIN 931 thread length for lengths ≥200: 61
• ISO 4014 thread length for lengths ≥125: 42
• ISO 4014 thread length for lengths >125≥200: 48

Available options

• 60 mm
• 70 mm
• 80 mm
• 90 mm
• 100 mm
• 120 mm

Sizing

• 60 mm
• 70 mm
• 80 mm
• 90 mm
• 100 mm
• 120 mm

Rackhams Reference : LZXVH52Z2N
