Fixaball M16 Drop In Anchor Lipped Masonry Concrete

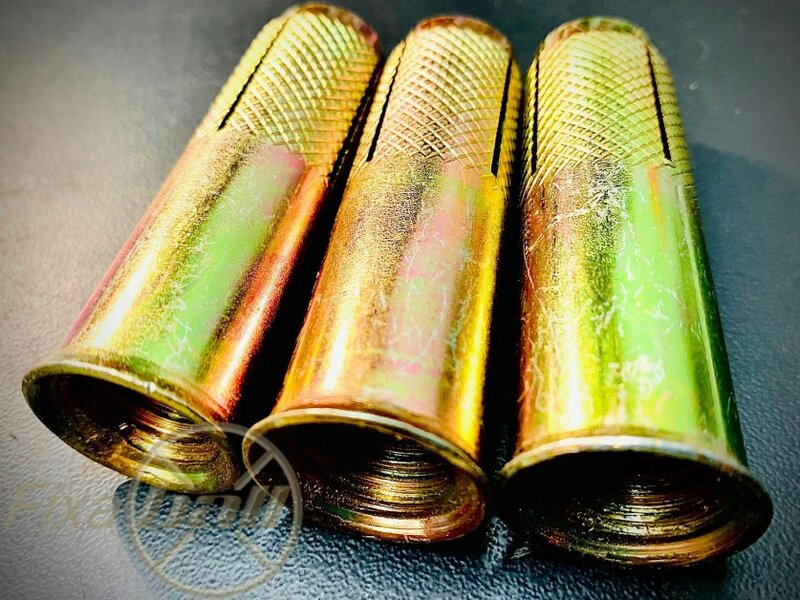

For flush-set fixings in solid masonry, the Fixaball M16 lipped drop in anchor provides an internally threaded expansion anchor for use in concrete, brick and non-porous stone. The lipped design allows it to sit flush against the surface and helps prevent over-insertion, while the internal thread accepts bolts or threaded rod of any length.

Suitable for mechanical and electrical services, suspension systems, cable trays, signs and hand rails, it can be set independently of hole depth and used in non-cracked concrete. Removal of the fixture leaves the anchor in place.

Key features

• Internal thread: M16
• Finish: zinc
• Lipped drop in expansion anchor
• Suitable for masonry, concrete, brick and non-porous stone
• Compatible with bolts or threaded rod of any length
• Can be used in non-cracked concrete
• Flush fitting with no protrusion when not in use

Specifications

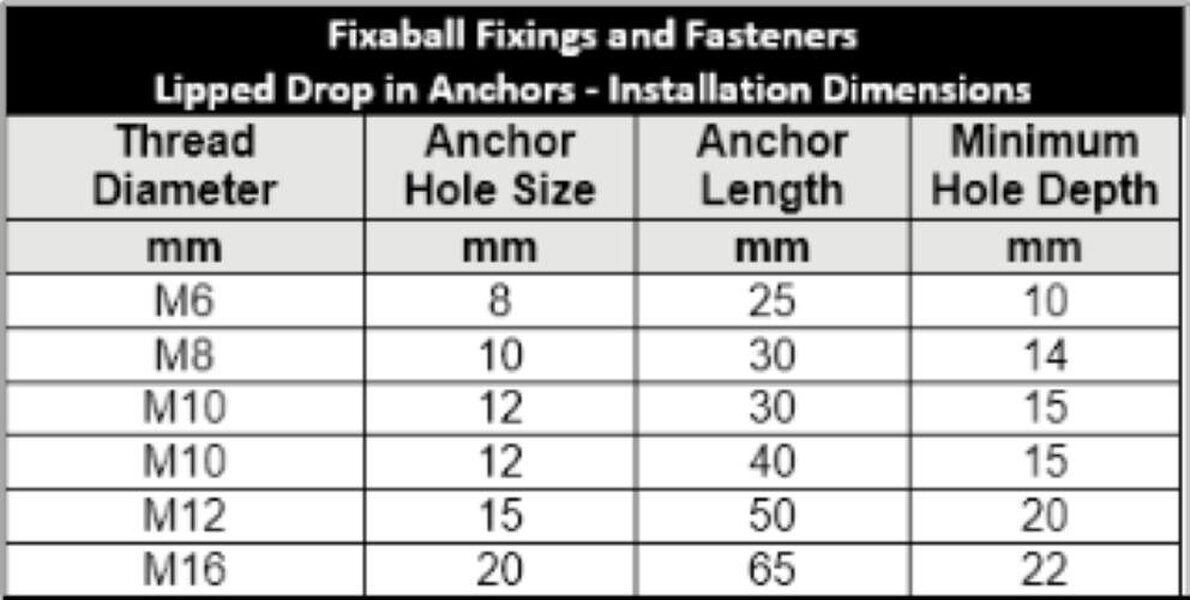

• Anchor hole size: 20mm
• Minimum hole depth: 22mm
• Internal thread length plus fixture thickness and washer thickness determines the minimum bolt length required when set flush with the base material
• If set deeper into the concrete, the additional depth must be added to the minimum anchor length

Sizing

• Anchor length: 65mm

Safety information

• Use a hammer drill and a carbide tipped masonry drill bit matched to the outside diameter of the anchor.
• Clear the hole of debris before installation.
• Use the relevant setting tool of the same diameter as the anchor until it makes contact with the cone.
• Tighten to the recommended torque using a torque wrench.
