Fixaball M14 M16 M20x1.5P Fine Pitch Hex Bolt High Tensile 10.9 Self Colour

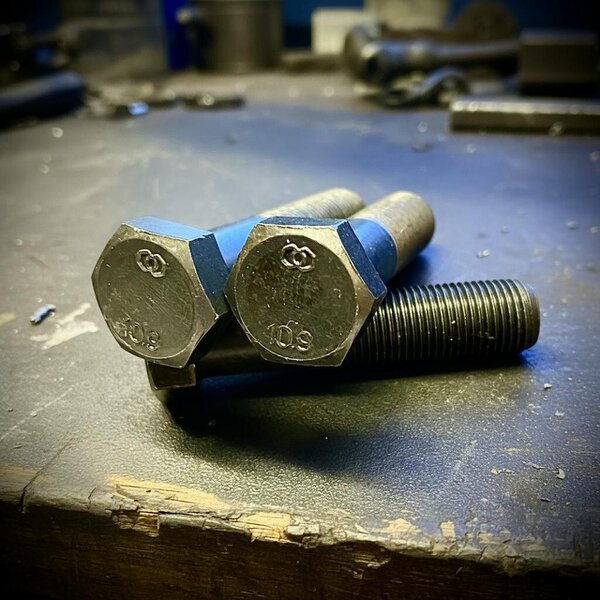

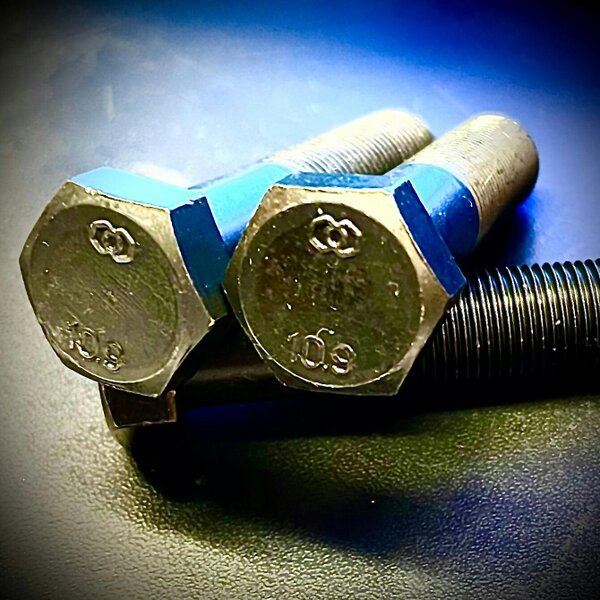

For fine-thread fastening applications, these Fixaball hexagon bolts are supplied in high tensile 10.9 self-colour steel with a partially threaded shank. Manufactured to DIN 960, they are available in M14, M16 and M20 sizes with a 1.5mm pitch fine thread.

Each bolt has a hexagon head and is offered in a range of lengths, making it suitable where a defined bolt length is required. Spanner sizes are 22mm for M14, 24mm for M16 and 30mm for M20.

Key features

• Partially threaded hexagon bolts
• High tensile grade 10.9
• Self-colour finish
• DIN 960
• Fine pitch thread: 1.5mm
• Thread sizes available: M14, M16, M20
• Hexagon head

Specifications

• M14 standard/coarse pitch: 2.0
• M14 fine pitch: 1.5
• M16 standard/coarse pitch: 2.0
• M16 fine pitch: 1.5
• M20 standard/coarse pitch: 2.5
• M20 fine pitch: 2.0
• M20 super fine pitch: 1.5
• Spanner size for M14: 22mm
• Spanner size for M16: 24mm
• Spanner size for M20: 30mm

Available options

• M14(1.5) x 50
• M14(1.5) x 55
• M14(1.5) x 100
• M16(1.5) x 50
• M16(1.5) x 55
• M16(1.5) x 80
• M16(1.5) x 90
• M16(1.5) x 100
• M20(1.5) x 60
• M20(1.5) x 70
• M20(1.5) x 80
• M20(1.5) x 90

Rackhams Reference : C1RAL8MFYY
