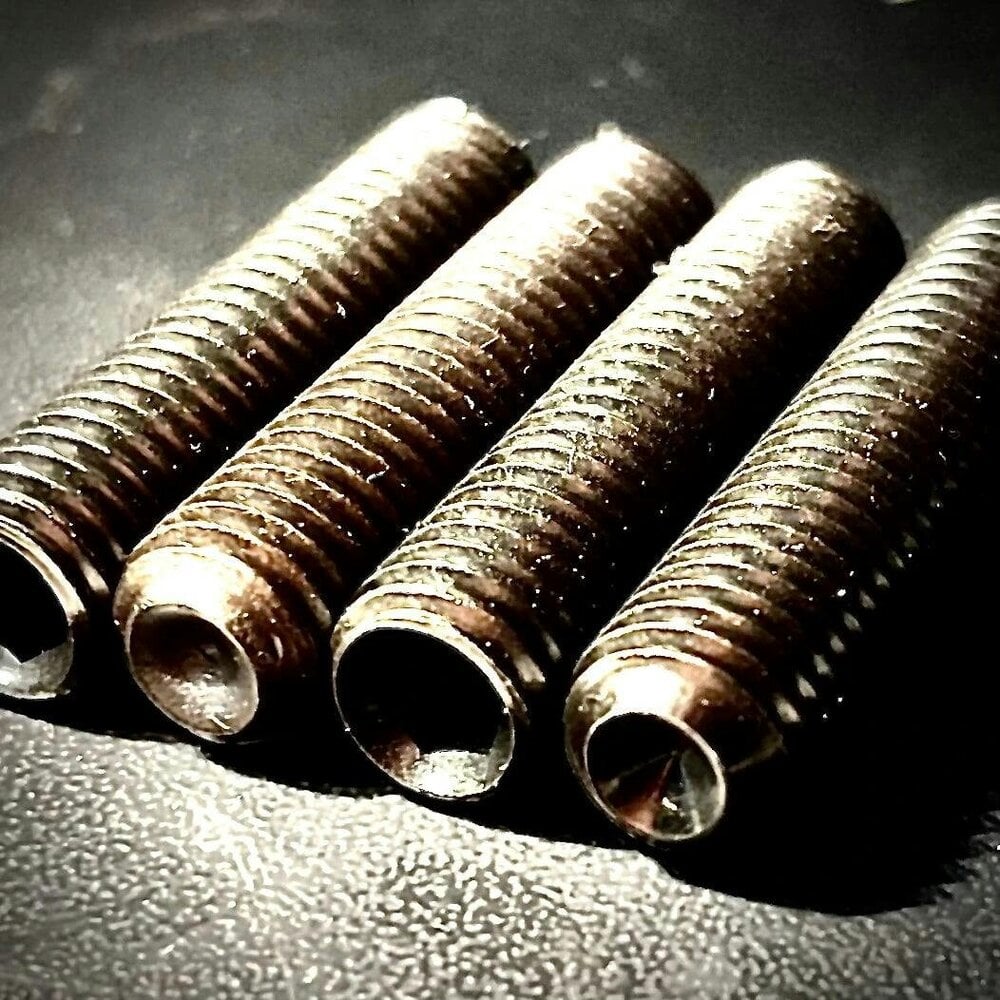

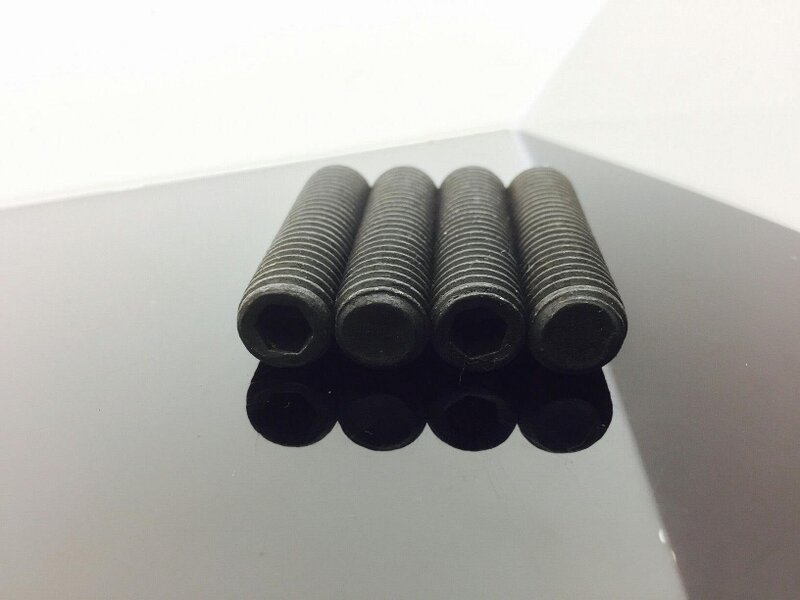

Fixaball M20 Grub Socket Set Screw Cup End High Tensile

For shaft, pulley and gear fixing applications, this Fixaball M20 socket set screw features a cup point and a fully threaded, headless form. Made in grade 14.9 high tensile steel with a self colour finish, it is produced to DIN 916 and ISO 4029.

Each screw has an M20 thread with 2.5mm pitch and uses a 10mm Allen key drive. Length options are available from 20mm to 80mm, making it suitable where a compact internal-drive fixing is required within a threaded hole.

Available options

• 20mm
• 30mm
• 40mm
• 55mm
• 60mm
• 70mm
• 80mm

Key features

• M20 thread
• Cup point socket set screw
• Grade 14.9 high tensile steel
• Self colour finish
• DIN 916
• ISO 4029
• 2.5mm pitch

Specifications

• Allen key size: 10mm
• Thread form: coarse
• Drive type: internal hex
• Head style: headless

Sizing

• 20mm
• 30mm
• 40mm
• 55mm
• 60mm
• 70mm
• 80mm

Rackhams Reference : 6U1VFBPTWB
