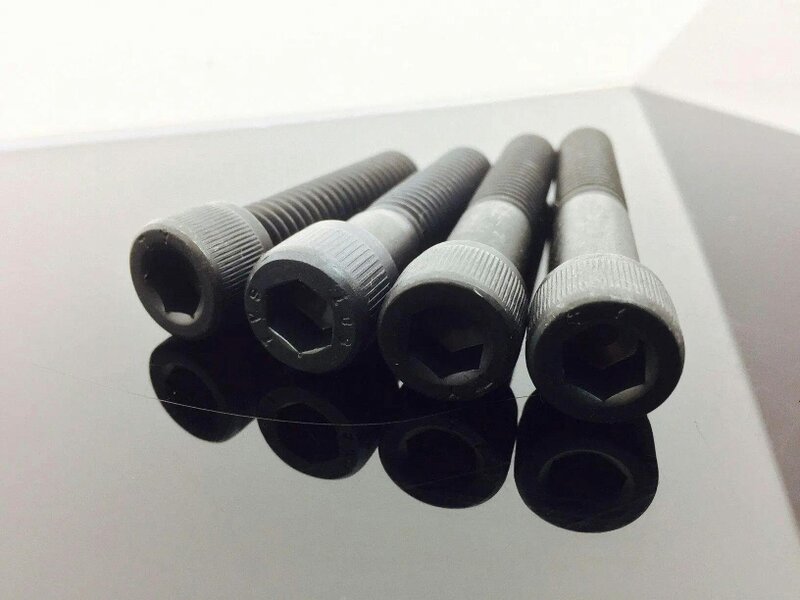

Fixaball UNC 7/16" Socket Cap Screw High Tensile 12.9 Self Colour DIN912

For inch-thread fastening applications, this Fixaball socket cap screw features a 7/16" UNC thread with 14 TPI, a high tensile 12.9 grade, and a self colour finish. It is a hex socket cap head fastener conforming to DIN 912, ISO 4762 and BS 2470.

The cylindrical cap head is tightened with a hexagon key. Depending on length, the fastener is supplied in fully threaded or partially threaded form. The self colour finish is black with no surface treatment, with low corrosion resistance and suitability for conditions with no exposure to moisture, often greased or oilied.

Key features

• 7/16" UNC thread
• 14 TPI coarse pitch
• High tensile steel
• Self colour finish
• Grade 12.9
• Conforms to DIN 912, ISO 4762 and BS 2470

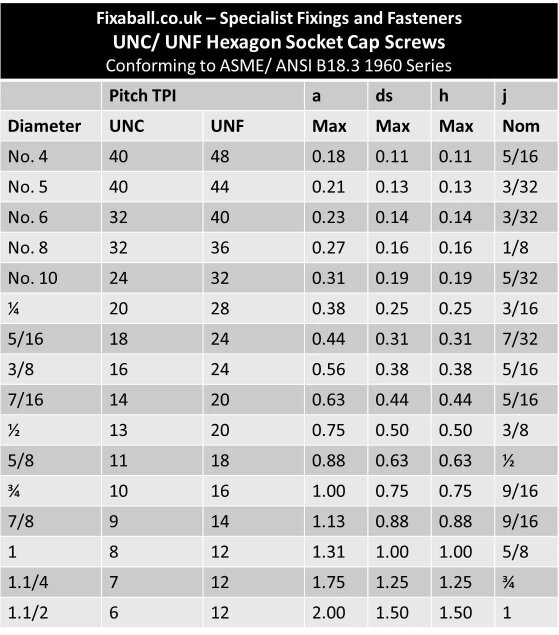

Specifications

• Conforming to ASME/ ANSI B18. 3 1960 Series
• UNC pitch: 14
• UNF pitch: 20

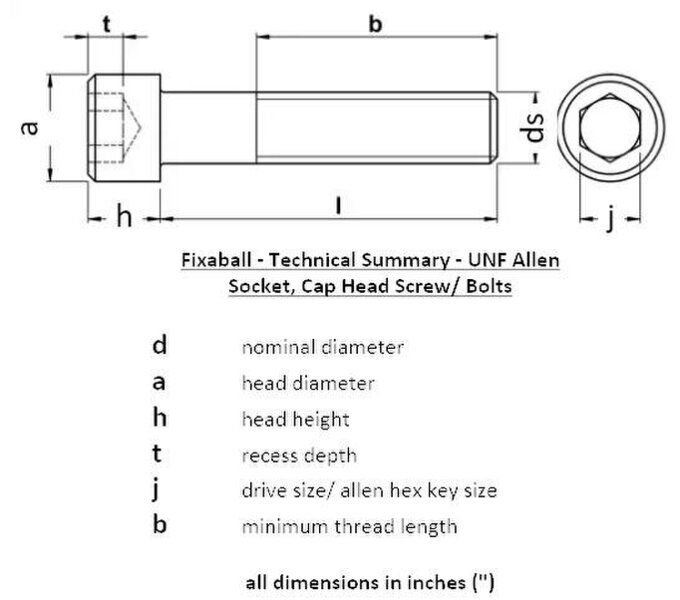

• a max: 0. 63
• ds max: 0. 44
• h max: 0. 44
• j nom: 5/16

Available options

• 7/16"-14 x 1/2" fully threaded
• 7/16"-14 x 5/8" fully threaded
• 7/16"-14 x 7/8" fully threaded
• 7/16"-14 x 1" fully threaded
• 7/16"-14 x 1 1/4" fully threaded
• 7/16"-14 x 1 1/2" fully threaded
• 7/16"-14 x 1 3/4" fully threaded
• 7/16"-14 x 2" partially threaded
• 7/16"-14 x 2 1/4" partially threaded
• 7/16"-14 x 2 1/2" partially threaded
• 7/16"-14 x 2 3/4" partially threaded
• 7/16"-14 x 3" partially threaded
• 7/16"-14 x 3 1/4" partially threaded
• 7/16"-14 x 3 1/2" partially threaded
• 7/16"-14 x 3. 3/4" partially threaded
• 7/16"-14 x 4" partially threaded
• 7/16"-14 x 4 1/2" partially threaded
• 7/16"-14 x 5" partially threaded
• 7/16"-14 x 5 1/2" partially threaded
