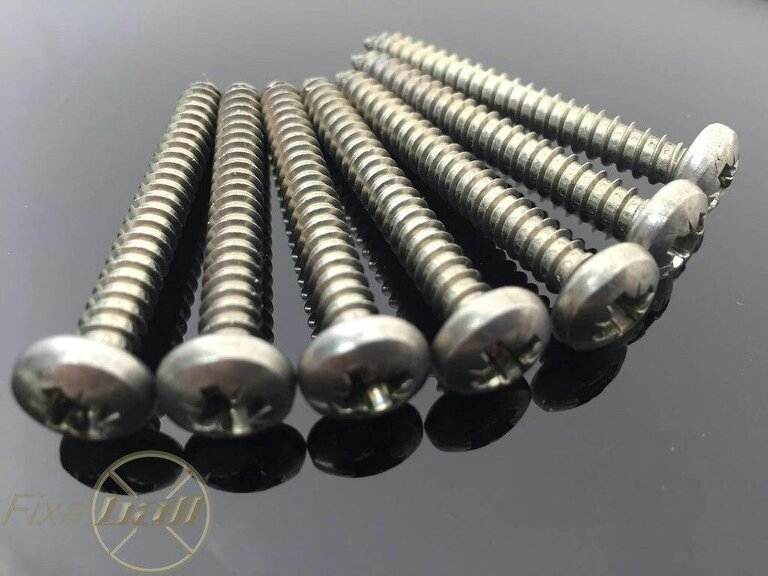

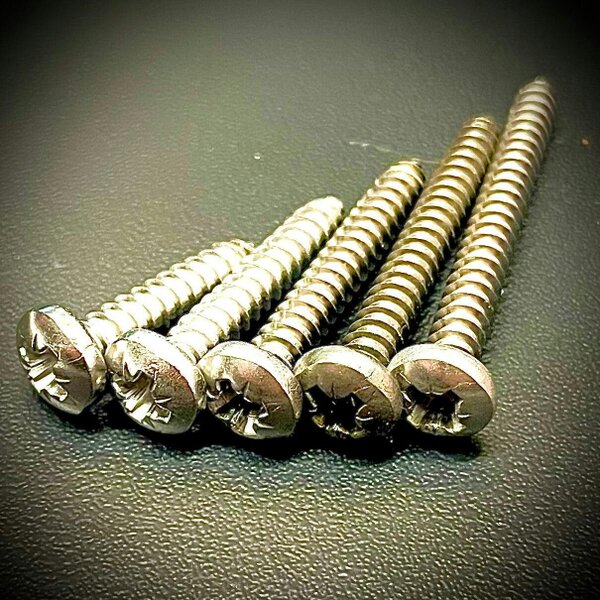

Fixaball No. 12 5.5mm Pozi Pan Self Tapping Screws AB Point A2/304 Stainless

For corrosion-resistant fixing in a range of lengths, these Fixaball No. 12 self-tapping screws combine a Pozi drive with a pan head and AB point. Made from A2 / 304 stainless steel, they are produced to DIN 7981C and measure 5.5mm in diameter.

The pan head sits proud of the surface, while the listed screw lengths are measured from the underside of the head. Suitable for applications requiring A2 stainless steel fixings, this range is offered in multiple length options.

Key features

• No. 12 screw size
• 5.5mm diameter
• A2 / 304 stainless steel
• Pozi drive
• Pan head
• AB point
• DIN 7981C

Available options

• 5.5 x 13
• 5.5 x 16
• 5.5 x 19
• 5.5 x 22
• 5.5 x 25
• 5.5 x 32
• 5.5 x 38
• 5.5 x 42
• 5.5 x 45
• 5.5 x 50
• 5.5 x 55
• 5.5 x 60
• 5.5 x 70
• 5.5 x 80
• 5.5 x 90
• 5.5 x 100
• 5.5 x 120

Sizing

• No. 12 = screw dia. 5.5mm
• Head dia. 12.8mm
• Head height 3mm

All screw lengths are measured from the underside of the head.

Rackhams Reference : EL7SRI1QHN
