Fixaball M20 Throughbolt Anchor Heavy Duty Masonry Concrete ZYP

For heavy-duty fixing into non-cracked concrete, masonry and non-porous stone, this Fixaball M20 throughbolt anchor is supplied in a zinc plated finish. It suits applications where the fixing passes through the fixture after positioning, with the hole matching the fixing diameter.

The cold formed body provides consistent dimensional accuracy and material stability. Reduced embedment is suitable where contact with rebars or reinforcement cages needs to be avoided.

Key features

• M20 throughbolt anchor
• Zinc plated finish
• Suitable for non-cracked concrete, masonry and non-porous stone
• Cold formed body for consistent dimensional accuracy and material stability
• Suitable for reduced embedment
• Anchor hole size: 20mm
• Model number: ZYP

Specifications

• Installation temperature range for base material: -5 / + 40 ºC (80 ºC for a short period of time)
• Hole diameter: 20/ 22
• Specified torque must be applied with a torque wrench

Available options

• 130mm
• 160mm
• 215mm

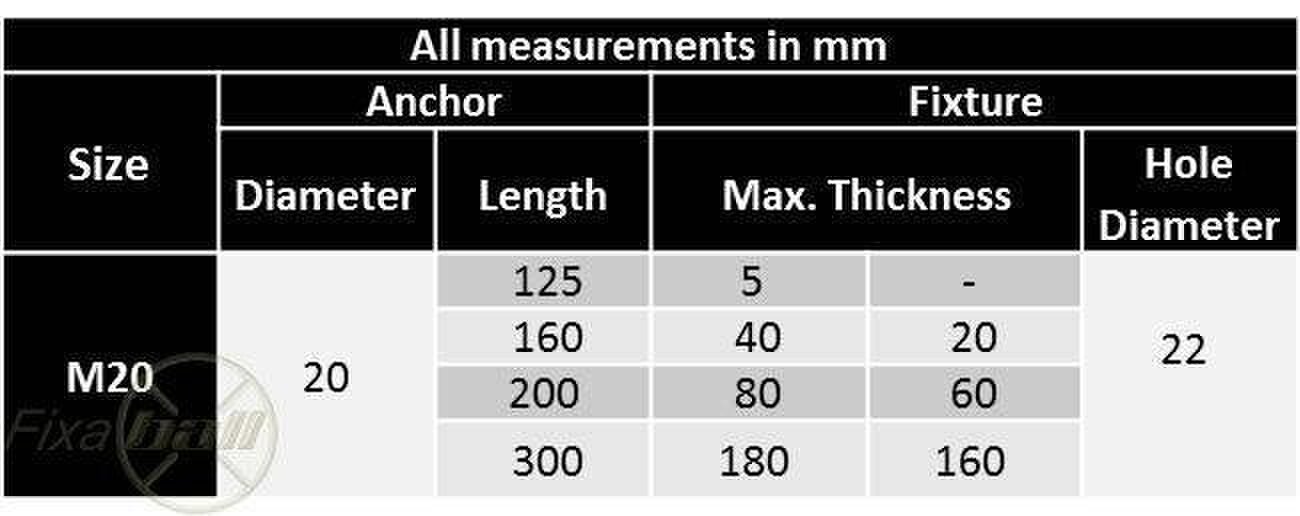

Sizing

• 20mm x 130mm
• 20mm x 160mm
• 20mm x 215mm
• M20
• 20 diameter
• 125 length
• 5 range of joining thickness
• 20 length
• 200 length
• 80 range of joining thickness
• 60 length
• 300 length
• 180 range of joining thickness
• 160 length

Safety information

• Check the concrete strength before installation to ensure its class and standard are suitable.
• The concrete base must be compact with insignificant porosity.
• Minimum installation depth values must always be respected for anchor depth, anchor-to-anchor distances and anchor-to-edge distances.
• Drill to the specified minimum depth and diameter, perpendicular to the base material surface.
• Take special care when drilling near reinforcement areas to avoid damage.
• Clean holes thoroughly to remove dust and debris with a suitably sized brush.
• When temperature is below 0ºC, ensure water does not seep into the hole.
• Do not apply any intermediate layer between the material being fixed and the washer.
• If holes in the material being fixed are larger than required, a thicker washer of bigger diameter is necessary.

Rackhams Reference : MTLF9H6R1K
