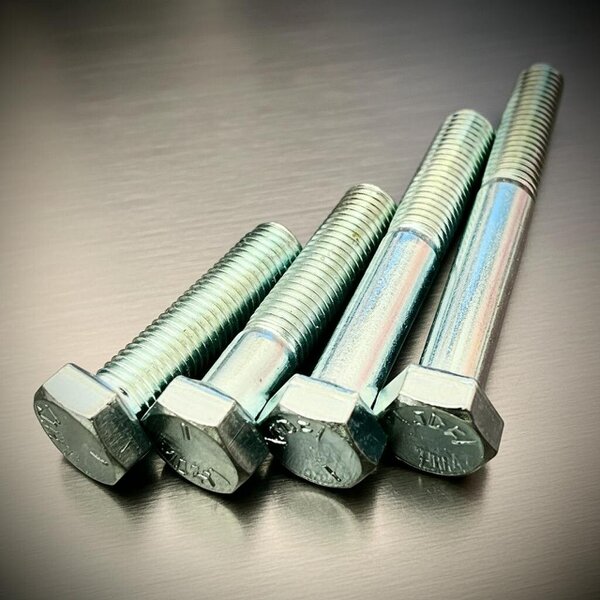

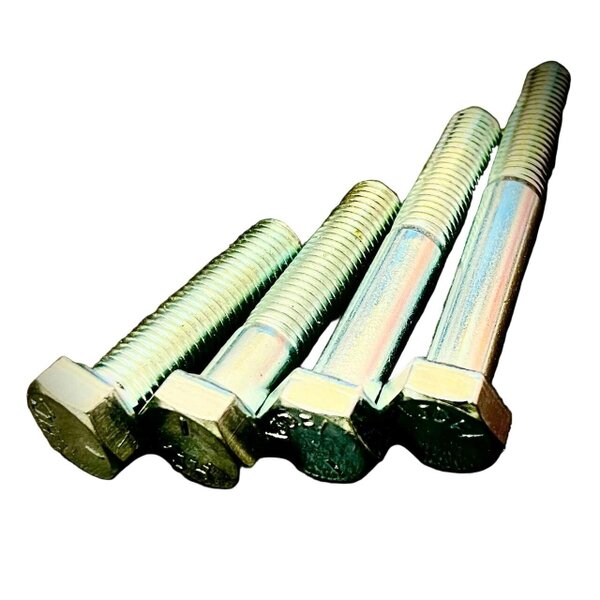

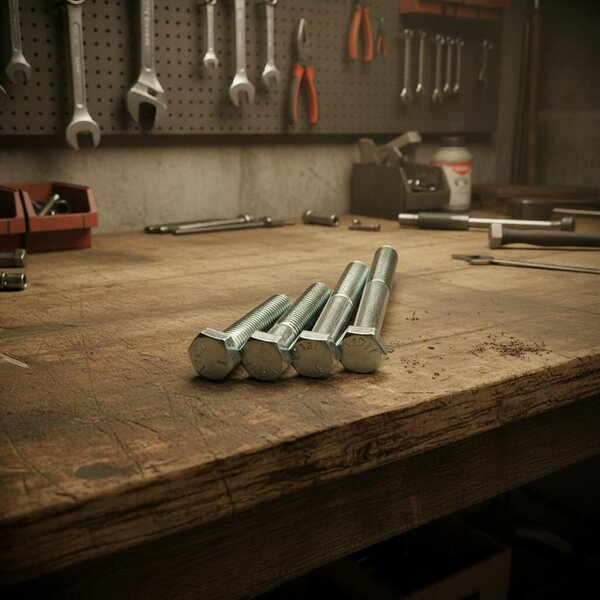

Fixaball UNS 1" Hex Bolt Set Screw High Tensille 8.8 Zinc BZP

For inch-based fastening applications, this Fixaball UNS 1" hex fastener range includes both fully threaded hex sets and partially threaded hex bolts in zinc-plated medium carbon steel. Each option features a 1" Unified National Special thread with 14 T.P.I and a high tensile Grade 5 specification, comparable with metric 8.8.

Fully threaded versions are supplied as hex set screws, while partially threaded versions are supplied as hex bolts. The available range covers multiple lengths, making it suitable where the required thread form and fastening style need to be selected to match the assembly.

Available options

• 1"-14x1 1/2" (FT)
• 1"-14x2" (FT)
• 1"-14x2 1/4" (FT)
• 1"-14x2 3/4" (FT)
• 1"-14x3" (FT)
• 1"-14x3 1/4" (PT)
• 1"-14x4" (PT)
• 1"-14x4 1/2" (PT)
• 1"-14x5" (PT)
• 1"-14x5 1/2" (PT)
• 1"-14x6" (PT)

Key features

• Thread size: UNS 1"
• Thread pitch: 14 T.P.I
• Material: medium carbon steel
• Finish: zinc CR+3
• High tensile Grade 5, comparable with metric 8.8
• Fully threaded and partially threaded options available

Specifications

• Hex set screws are fully threaded
• Hex bolts are partially threaded
• Unified National Special (UNS) thread form with 60 degree flank angle, rounded roots and flat crests
• Unified thread based on inch sizes
• Thread standards agreed by standard bodies of Canada, the United Kingdom and the United States

Sizing

• 1"-14x1 1/2"
• 1"-14x2"
• 1"-14x2 1/4"
• 1"-14x2 3/4"
• 1"-14x3"
• 1"-14x3 1/4"
• 1"-14x4"
• 1"-14x4 1/2"
• 1"-14x5"
• 1"-14x5 1/2"
• 1"-14x6"

Rackhams Reference : 6MD1J18KXN
