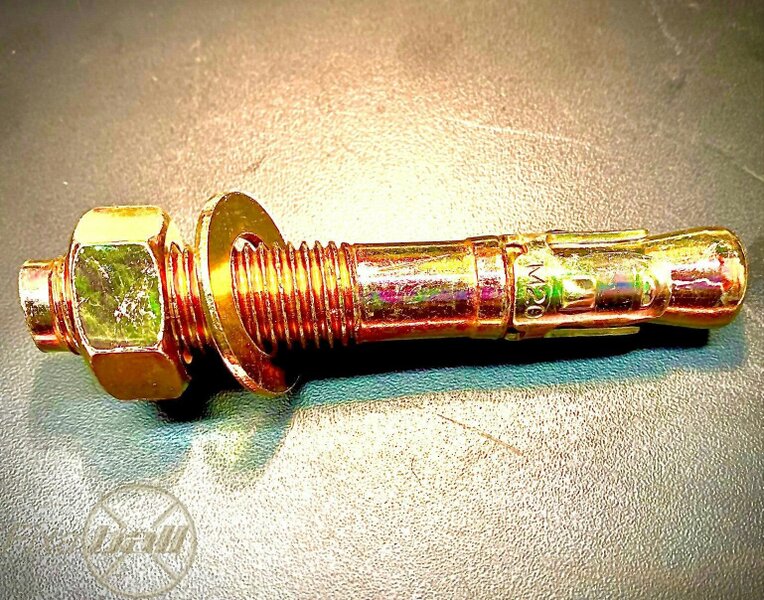

Fixaball M6 Throughbolt Anchor Heavy Duty Masonry Concrete ZYP

For secure fixing into non-cracked concrete, masonry and non-porous stone, this Fixaball M6 throughbolt anchor is a zinc-plated heavy duty masonry anchor with an expansion fixing design. It suits applications where the fixing passes through the fixture once positioned, with the hole matching the fixing diameter.

The cold formed body supports consistent dimensional accuracy and material stability. Reduced embedment suitability is stated for installations where contact with rebars or reinforcement cages needs to be avoided.

Key features

• M6 throughbolt anchor
• Zinc-plated finish
• Suitable for non-cracked concrete, masonry and non-porous stone
• Expansion masonry anchor
• Cold formed body

Specifications

• Installation temperature range for base material: -5 / + 40 ºC
• 80 ºC for a short period of time
• Drilling must be perpendicular to the base material surface

Sizing

• Anchor hole size: 6 mm
• Anchor length: 45mm
• Anchor length: 55mm
• Anchor length: 85mm
• Anchor diameter: 6
• Length: 50
• Range of joining thickness: 10
• Hole diameter: -
• Length: 65
• Range of joining thickness: 25
• Hole diameter: 5
• Length: 85
• Range of joining thickness: 45
• Hole diameter: 25
• Length: 100
• Range of joining thickness: 60
• Hole diameter: 40

Safety information

• Check the concrete strength before installation to ensure the class or standard is suitable.
• The concrete base must be compact with insignificant porosity.
• Minimum installation depth values must always be respected for anchor depth, anchor-to-anchor distances and anchor-to-edge distances.
• Take special care when drilling near reinforcement areas to avoid damage.
• When temperature is below 0ºC, ensure water does not seep into the hole.
• Do not apply any intermediate layer between the material to be fixed and the washer, including sealing products.
• Apply the specified torque with a torque wrench.
