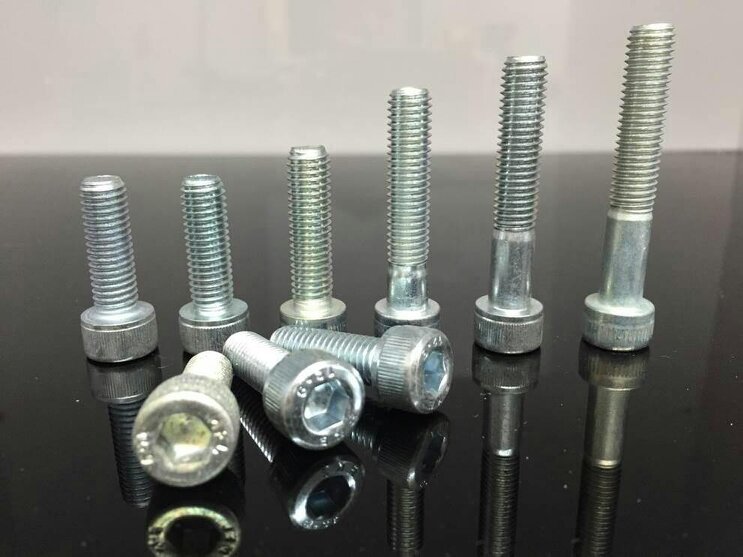

Fixaball M6 Socket Cap Allen Screw Bolt High Tensile 12.9 BZP

For machine assembly and general fastening, this Fixaball M6 socket cap screw is manufactured from high tensile steel grade 12.9 with a bright zinc plated finish. It features a standard coarse M6 x 1.0mm pitch thread and a cylindrical cap head with an internal hex socket for use with a 5mm Allen key.

Produced to DIN 912, this fixing is available in a range of lengths, with shorter sizes listed as fully threaded and longer sizes as partially threaded. Bolt length is measured excluding the head.

Key features

• Thread size: M6 x 1.0mm pitch
• Material: high tensile steel grade 12.9
• Finish: bright zinc plated
• Standard: DIN 912
• Head diameter: 10.2mm
• Head height: 6mm
• Allen key size: 5mm

Available options

• 6mm length, fully threaded
• 8mm length, fully threaded
• 10mm length, fully threaded
• 12mm length, fully threaded
• 15mm length, fully threaded
• 16mm length, fully threaded
• 20mm length, fully threaded
• 25mm length, fully threaded
• 30mm length, fully threaded
• 35mm length, partially threaded
• 40mm length, partially threaded
• 45mm length, partially threaded
• 50mm length, partially threaded
• 60mm length, partially threaded
• 70mm length, partially threaded
• 80mm length, partially threaded
• 100mm length, partially threaded
• 110mm length, partially threaded
• 120mm length, partially threaded

Sizing

• Head diameter: 10.2mm
• Head height: 6mm

Rackhams Reference : SRM8HGC6AV
