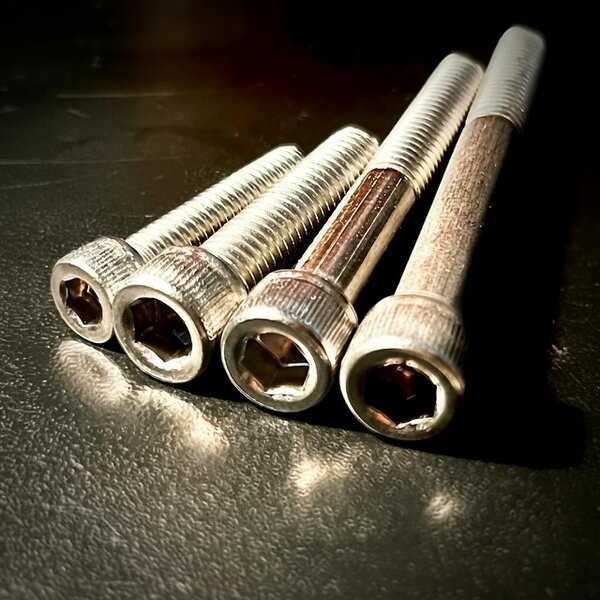

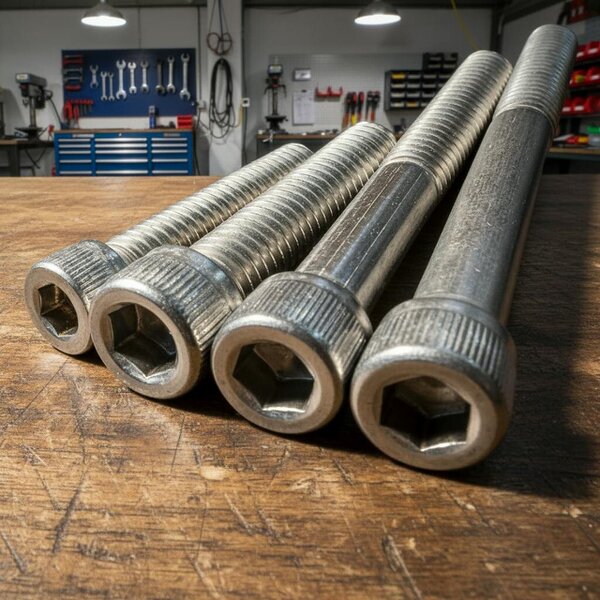

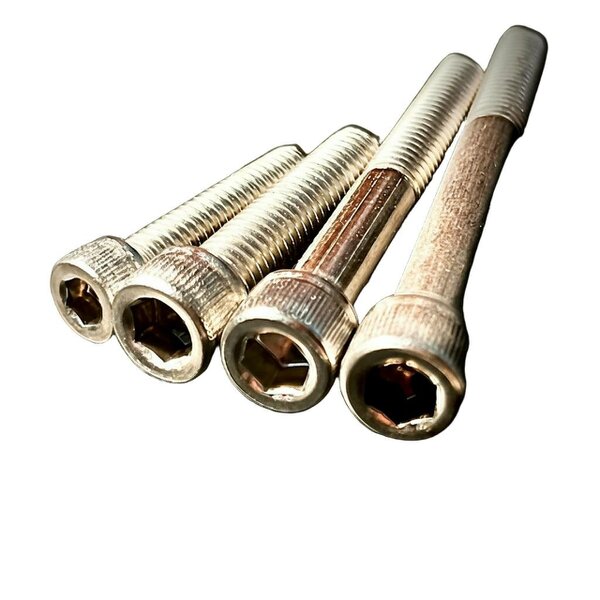

Fixaball UNC 1/2" Socket Cap Screw A2 304 Stainless Steel DIN912

For inch-threaded fastening applications, the Fixaball UNC 1/2" socket cap screw is produced in A2 / 304 stainless steel with a self-colour finish. This cap head fastener has an internal hexagon socket and a coarse 13 T.P.I. UNC thread, with lengths available in both fully threaded and partially threaded forms.

Its dull shine grey appearance and high level of corrosion resistance make it suitable for external weathering where there is no chemical exposure such as salt water. Standards listed for this product are DIN 912, ISO 4762 and BS 2470.

Available options

• 1/2"-13 x 7/8" (FT)
• 1/2"-13 x 1" (FT)
• 1/2"-13 x 1 1/4" (FT)
• 1/2"-13 x 1 1/2" (FT)
• 1/2"-13 x 2" (FT)
• 1/2"-13 x 2 1/4" (PT)
• 1/2"-13 x 3" (PT)
• 1/2"-13 x 4" (PT)
• 1/2"-13 x 4 1/2" (PT) - request size

Key features

• Thread size: 1/2" UNC
• Thread pitch: 13 T.P.I.
• Material and finish: A2 / 304 stainless steel, self colour
• Head type: cap head with hexagon socket
• Corrosion resistance: high
• Standards: DIN 912, ISO 4762, BS 2470

Specifications

• Unified National Coarse (UNC) thread form
• 60 degree flank angle rounded roots and flat crests
• Unified National (UN) thread form with a rounded root contour applies only to external threads

Image is for illustrative purposes only.

Rackhams Reference : HD1MEQH6CF
