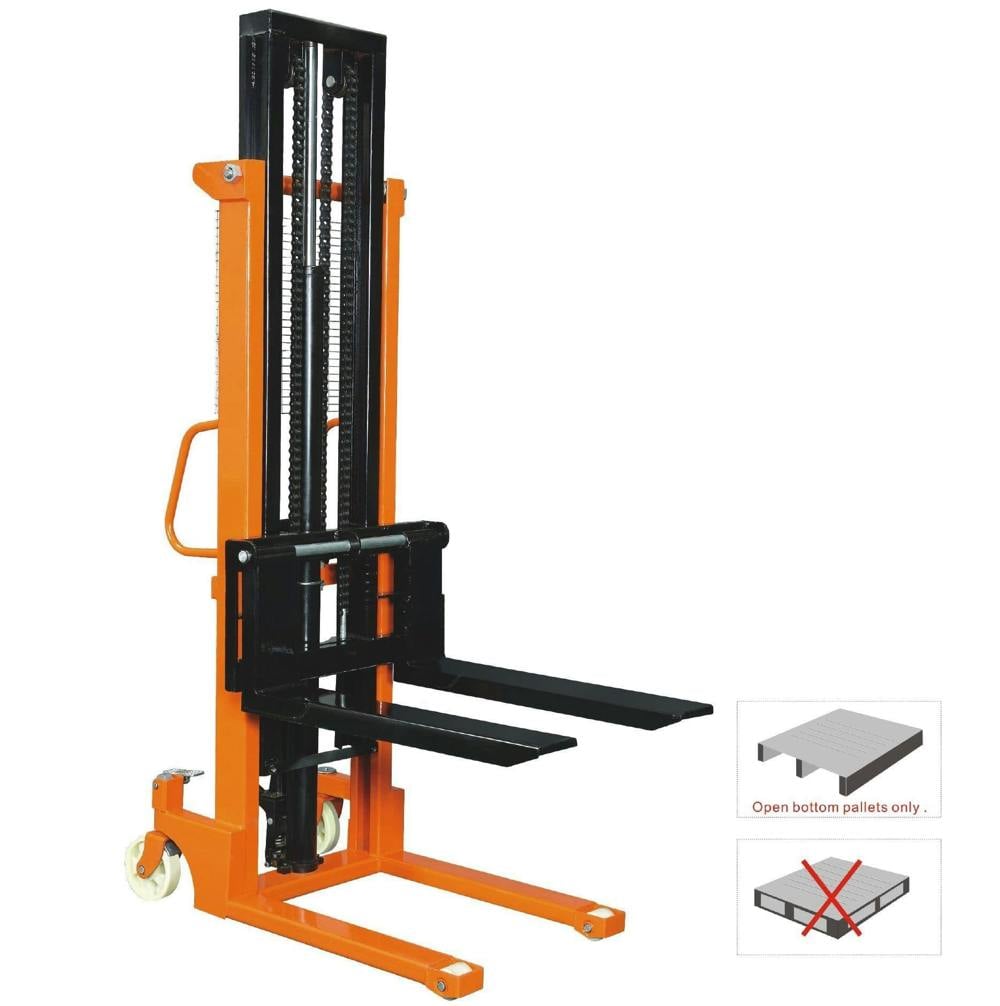

Manual Hydraulic Pallet Stacker 1.5T (Hand Forklift Lifter 1.6M)

Designed for practical lifting on site, this Manual Hand Stacker offers a straightforward way to raise pallets when a forklift is not available. Operated by one person, it uses a lever to gradually pump the forks upwards, with a foot pump positioned below for faster lifting when needed. A handle at the top of the lever lowers the forks and can be locked to prevent further lifting.

For controlled manoeuvring in tight spaces, the stacker can turn 360° on the spot. Rear wheels are fitted with a foot brake catch to help keep the unit secure during use. Finished in bright orange for high visibility, the forks are designed to remain steady while the stacker is moved, helping to reduce the risk of items slipping during transport.

Key features

• Manual hydraulic operation with lever pump
• Foot pump for quicker lifting
• Top handle for lowering and locking the lift control
• 360° turning capability
• Rear wheels with foot brake catch
• Bright orange finish for high visibility

Specifications

• Max capacity at 0.5m: 1000KGS (1.0 Ton)
• Max capacity at 2.5m: 500KGS (0.5 Ton)
• Fork width x length: 150MM x 1150MM
• Overall fork width: 530MM
• Loading centre on forks: 600MM
• Lifting height per stroke: 15MM

Sizing

• Minimum-maximum fork height: 85 - 2590MM
• Overall length x width x height: 1740MM x 730MM x 1840MM
• Overall height when fully raised: 3150MM
