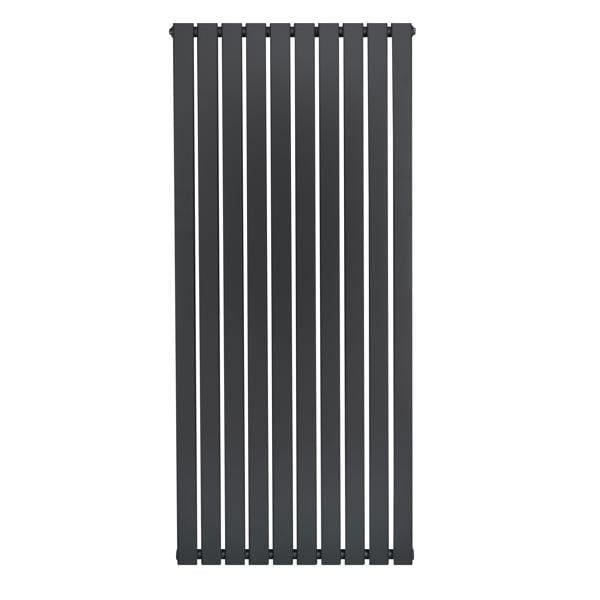

Monstershop Flat Single Column Radiator - 1600 x 700mm - Anthracite Grey

A bold, architectural update for contemporary interiors, the Monstershop Flat Single Column Radiator brings a clean-lined look in anthracite grey. Measuring 1600 x 700mm, it suits a wide range of rooms while keeping the profile slim, with a 46mm radiator depth and 73mm depth with bracket.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it combines a durable build with a refined, modern surface. Ten flat tubes (60mm x 15mm) sit with a 10mm gap between tubes, while heat output is rated at 4215 BTU @ 50 and 5352 BTU @ 60 (1235W @ 50 and 1568W @ 60). Standard 0.5" BSP inlets/outlets support straightforward valve selection, and the radiator is tested to BS EN 442 and ISO9001:2015 standards, with CE and UKCA certification.

Key features

• Monstershop flat single column radiator
• 1600 x 700mm size
• Anthracite grey finish with triple layered powder coating
• 10-column design with 60mm x 15mm flat tubes
• Heat output: 5352 BTU @ 60 (1568W @ 60)
• Standard 0.5" BSP inlet/outlet connections
• Maximum working temperature: 95°C
• Maximum working pressure: 5 Bar
• 15-year guarantee

Specifications

• Colour: Anthracite Grey
• Weight: 28.1kg
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Height: 1600mm / 160cm / 63”
• Width: 700mm / 70cm / 27.6”
• Radiator Depth: 46mm / 4.6cm / 1.8”
• Depth With Bracket: 73mm / 7.3cm / 2.9”
• Gap Between Tubes: 10mm / 1cm / 0.4”
• Individual Flat Tube Size: 60mm x 15mm
• Number Of Columns: 10
• BTU Rating @ 50: 4215
• BTU Rating @ 60: 5352
• Watt Rating @ 50: 1235
• Watt Rating @ 60: 1568
• Max Working Temperature: 95°C
• Max Working Pressure: 5 Bar
• Test Pressure: 6.5 Bar
• Recommended Application Area: 16m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 44mm / 4.4cm / 1.7”
• Valve-To-Valve Height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE Certificate: CE & UKCA

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
