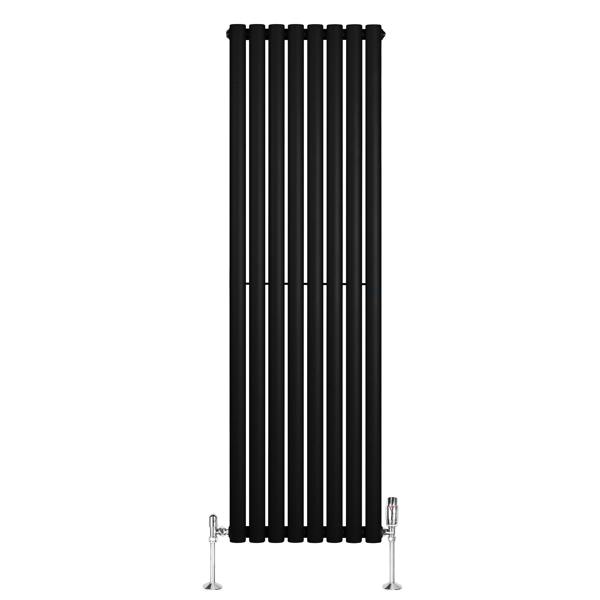

Monstershop Oval Single Column Radiator & Valves – 1600mm x 480mm – Black

A bold, architectural update for modern interiors, the MonsterShop Oval Single Column Radiator & Valves combines a tall black radiator with a polished chrome thermostatic valve set. Measuring 1600mm x 480mm, it brings a strong vertical presence to living spaces, hallways and larger rooms, while the oval tube profile and triple layered powder coating create a clean, contemporary finish.

Made from 1.5mm carbon steel and built with 8 columns, it delivers a heat output of 3838 BTU at 60 (1125 watts) and 3024 BTU at 50 (886 watts). The radiator is tested to BS EN 442 and ISO9001:2015 standards, carries CE and UKCA certification, and is supplied with brackets and a fixing kit. An included flexible cleaning brush helps keep the surface looking its best. The angled brass valves use a rotary knob for thermostatic control, with a 6–28 degrees temperature range.

Key features

• MonsterShop oval single column radiator with thermostatic valve set
• 1600mm x 480mm radiator size
• Black finish with triple layered powder coating
• 8-column carbon steel construction (1.5mm)
• Heat output: 3838 BTU at 60 / 3024 BTU at 50
• Includes 4 brackets, fixing kit and flexible cleaning brush
• Standard 0.5" BSP inlet/outlet size
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 19.2kg
• Height: 1600mm / 160cm / 63”
• Width: 480mm / 48cm / 18.9”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 8
• BTU rating at 50: 3024
• BTU rating at 60: 3838
• Watt rating at 50: 886
• Watt rating at 60: 1125
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
