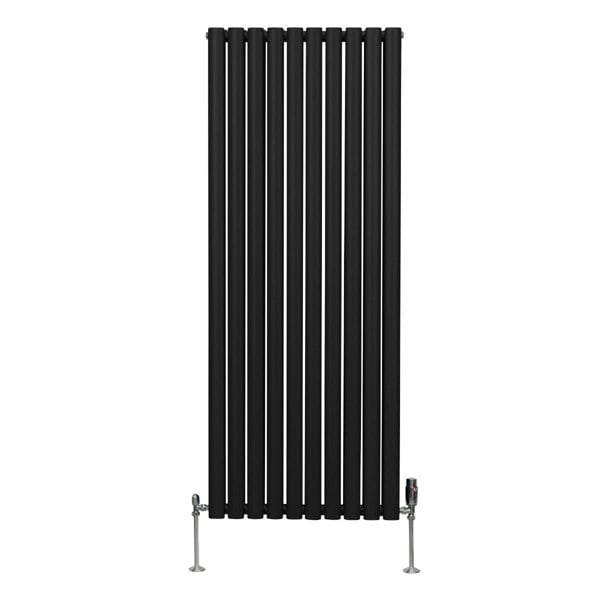

Monstershop Oval Column Radiator & Valves - 1600mm x 600mm – Black

Bring a bold, architectural look to your heating with the Monstershop Oval Column Radiator & Valves in black. Measuring 1600mm x 600mm, this 10-column design is made from 1.5mm carbon steel and finished in a triple layered powder coating for a clean, contemporary presence that suits a wide range of interiors.

Heat output is rated at 6991 BTU @ 60 (5505 BTU @ 50), with individual oval tubes sized at 50mm x 25mm and a 10mm gap between tubes. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems. A chrome-finished thermostatic valve set is included, with angled valves, rotary knob control and lockshield functionality for regulated water flow. CE & UKCA certification and testing to BS EN 442 & ISO9001:2015 standards complete the specification, alongside a 15-year guarantee for the radiator and a 10-year guarantee for the valves.

Key features

• 1600mm x 600mm oval column radiator with 10 columns
• Heat output: 6991 BTU @ 60 (5505 BTU @ 50)
• Black finish with triple layered powder coating
• Standard 0.5" BSP bore inlets/outlets
• Includes chrome thermostatic angled valve set with rotary knob control
• Supplied with 4 brackets, fixing kit and flexible cleaning brush
• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 47.1kg
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 78mm / 7.8cm / 3.1”
• Depth with bracket: 104mm / 10.4cm / 5”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 10
• BTU rating @ 50: 5505
• BTU rating @ 60: 6991
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval column radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
