Monstershop Oval Mirror Radiator & Valves - 1800mm x 500mm - White

A striking way to bring heating and reflection into one streamlined piece, the Monstershop Oval Mirror Radiator & Valves combines a tall vertical radiator with a central mirror and a chrome thermostatic valve set. Finished in white with a triple layered powder coating, it suits a wide range of interiors while keeping the look clean and architectural.

Made from 1.5mm carbon steel, the radiator measures 1800mm high by 500mm wide, with a 6-column layout and 50mm tubes. Heat output is rated at 3944 BTU @ 50 and 5009 BTU @ 60. The integrated mirror measures 1800mm x 145mm with a 5mm thickness, supported by a steel plate on the rear. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, and the set is supplied with brackets, a fixing kit and a flexible cleaning brush.

Key features

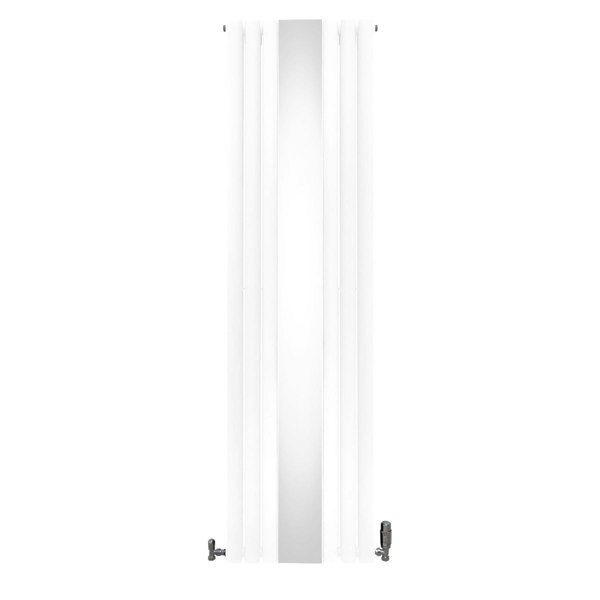

• Vertical oval panel radiator with central mirror
• White finish with triple layered powder coating
• 6-column design with 50mm individual tube size
• Heat output: 3944 BTU @ 50 and 5009 BTU @ 60
• Standard 0.5" BSP bore inlets/outlets

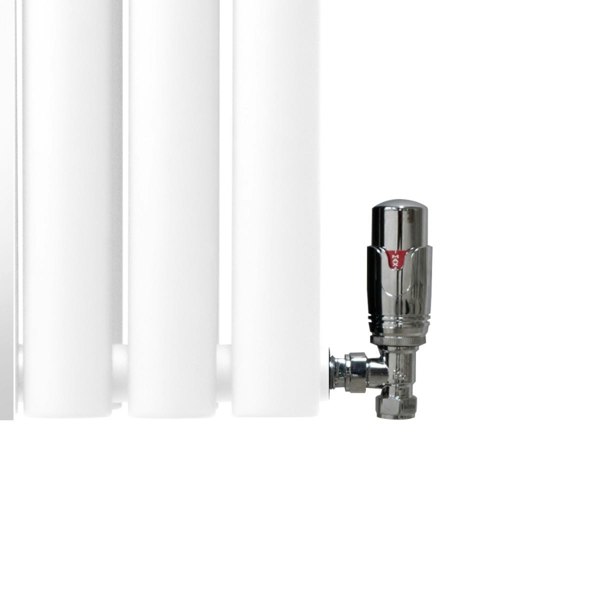

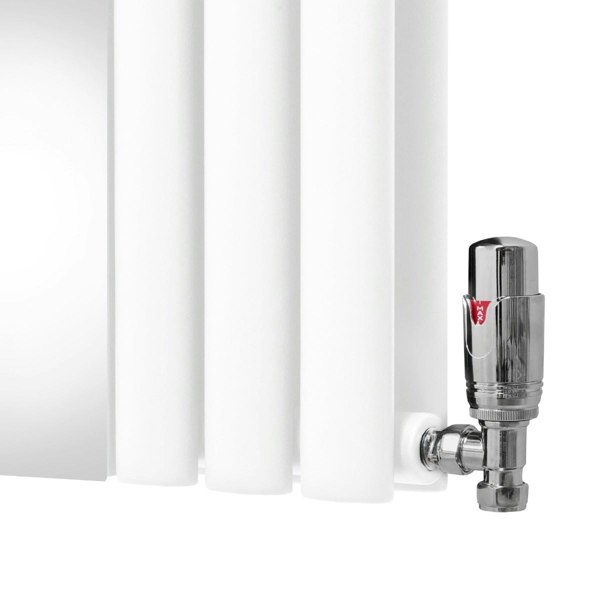

• Supplied with angled polished chrome thermostatic valve set
• Includes brackets, fixing kit and flexible cleaning brush
• CE, UKCA, BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 37.75kg
• Height: 1800mm / 180cm / 70.9”
• Width: 500mm / 50cm / 19.7”
• Radiator depth: 78mm / 7.8cm / 3.1”
• Depth with bracket: 103mm / 10.3cm / 4.1”
• Individual tube size: 50mm / 5cm / 2”
• Gap between tubes: 9mm / 0.9cm / 0.4”
• Number of columns: 6
• BTU rating @ 50: 3944
• BTU rating @ 60: 5009
• Mirror dimensions: 1800mm x 145mm
• Mirror thickness: 5mm
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval panel mirror radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
