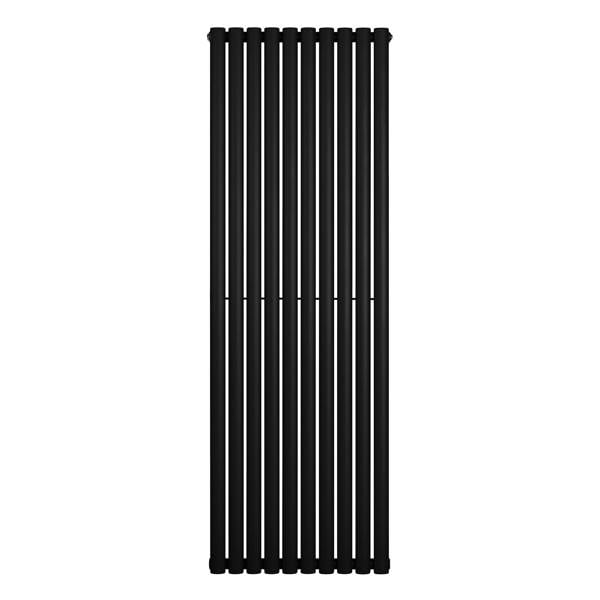

Monstershop Oval Single Column Radiator - 1800 x 600mm - Black

Bring a bold, architectural look to your heating with the Monstershop Oval Single Column Radiator. Finished in black with a triple layered powder coating, it creates a strong visual statement while keeping the design clean and contemporary.

Made from 1.5mm carbon steel, this 1800 x 600mm radiator uses 10 columns of oval steel tubes (50mm x 25mm) and delivers a BTU rating of 5409 at 60 (4256 at 50). With a maximum working temperature of 95°C and maximum working pressure of 10 bar, it is tested to BS EN 442 and ISO9001:2015 standards, and supplied with CE and UKCA certification. Standard 0.5" BSP inlets/outlets support straightforward valve selection, and compatibility covers all UK & EU heating systems. A flexible cleaning brush is included for easier upkeep, alongside brackets and a fixing kit.

Key features

• Monstershop oval single column radiator
• Size: 1800 x 600mm
• 10-column design with 50mm x 25mm oval tubes
• Black finish with triple layered powder coating
• Heat output: 5409 BTU at 60 (4256 BTU at 50)
• Standard 0.5" BSP inlet/outlet connections
• Supplied with brackets, fixing kit and flexible cleaning brush
• 15-year guarantee

Specifications

• Colour: Black
• Weight: 27.1kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1800mm / 180cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 10
• BTU rating @ 50: 4256
• BTU rating @ 60: 5409
• Watt rating @ 50: 1247
• Watt rating @ 60: 1585
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 16m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : RN9YVSJH92
