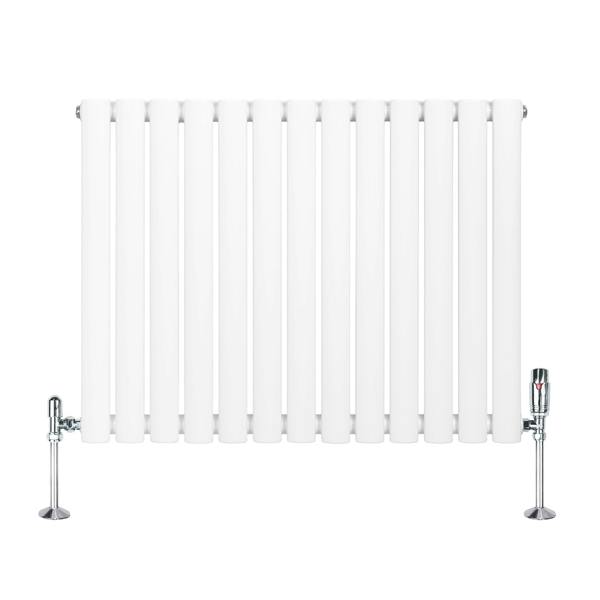

Monstershop Oval Single Column Radiator & Valves – 600mm x 780mm – White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in white with a triple layered powder coating, this 600mm x 780mm radiator brings a crisp, modern presence to living spaces, hallways and home offices, while the included polished chrome thermostatic valve set adds a refined contrast.

Made from 1.5mm carbon steel, the 13-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 2007 BTU at 50 and 2531 BTU at 60 (588W at 50 and 742W at 60). Standard 0.5" BSP inlets/outlets support straightforward integration with UK and EU heating systems, and the set is supplied with brackets, a fixing kit and a flexible cleaning brush for easier upkeep.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• 600mm x 780mm radiator size
• 13-column design with 50mm x 25mm oval tubes
• White finish with triple layered powder coating
• Heat output: 2531 BTU at 60 (742W at 60)
• Standard 0.5" BSP bore inlets/outlets
• Angled, polished chrome thermostatic valves with rotary control
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Weight: 13.5kg
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 780mm / 78cm / 30.7”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 13
• BTU rating @ 50: 2007
• BTU rating @ 60: 2531
• Watt rating @ 50: 588
• Watt rating @ 60: 742
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 7m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
