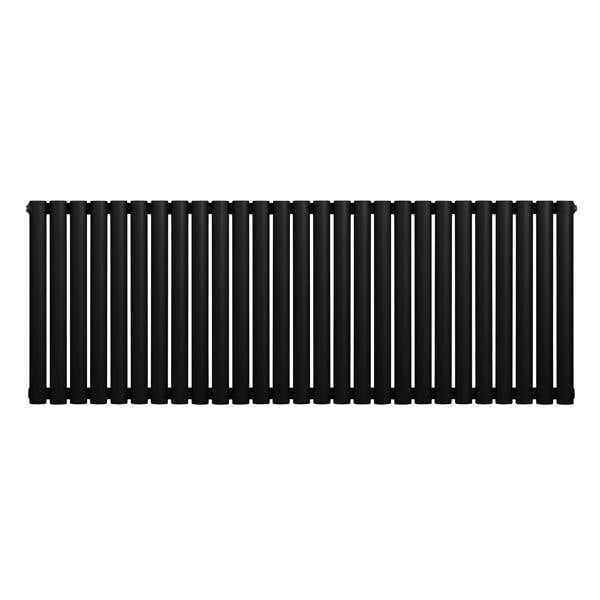

Monstershop Oval Single Column Radiator - 600 x 1620mm - Black

A bold, architectural update for modern interiors, the Monstershop Oval Single Column Radiator brings a clean-lined look in a black finish. This single column design measures 600mm high and 1620mm wide, with 27 oval tubes sized 50mm x 25mm and a 10mm gap between tubes. Made from premium 1.5mm carbon steel, it’s finished with triple layered powder coating for a durable surface.

Heat output is rated at 4171 BTU @ 50 and 5260 BTU @ 60, with watt ratings of 1222 @ 50 and 1541 @ 60. Suitable for a recommended application area of 15m², it supports a max working temperature of 95°C and max working pressure of 10 Bar. Standard 0.5" BSP bore inlets/outlets provide straightforward valve compatibility, while included brackets, a fixing kit and a flexible cleaning brush help with fitting and upkeep.

Key features

• Single column oval radiator with 27 columns
• Size: 600mm (H) x 1620mm (W)
• Premium 1.5mm carbon steel construction
• Black finish with triple layered powder coating
• Heat output: 5260 BTU @ 60
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• 15-year guarantee
• CE and UKCA certified

Specifications

• Colour: Black
• Weight: 26.8kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 1620mm / 162cm / 63.8”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 27
• BTU rating @ 50: 4171
• BTU rating @ 60: 5260
• Watt rating @ 50: 1222
• Watt rating @ 60: 1541
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : 3GZSNG77FU
