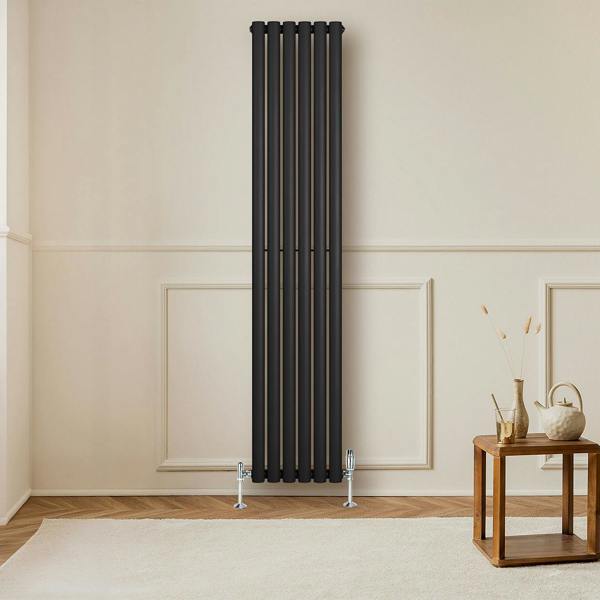

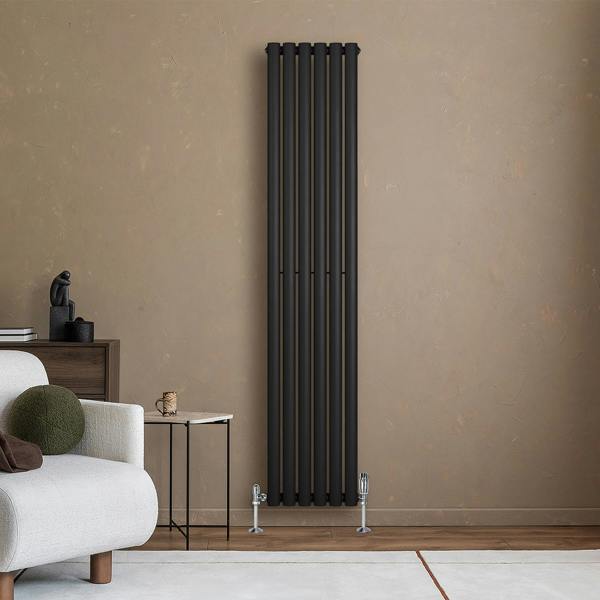

Monstershop Oval Single Column Radiator & Valves – 1800mm x 360mm – Black

Bring a refined, architectural look to your heating with the Monstershop Oval Single Column Radiator & Valves. Finished in black with a triple layered powder coating, this 1800mm x 360mm radiator creates a strong vertical statement while pairing neatly with the supplied polished chrome thermostatic valve set.

Made from premium 1.5mm carbon steel, the 6-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 2553 BTU @ 50 and 3245 BTU @ 60 (748W @ 50 and 951W @ 60), with a recommended application area of 10m². Standard 0.5" BSP bore inlets/outlets support compatibility with all UK & EU heating systems, while the included angled thermostatic valves offer rotary control with a 6–28 degrees temperature range.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Size: 1800mm x 360mm
• Colour: black
• Heat output: 3245 BTU @ 60 (951W @ 60)
• 6 columns with 50mm x 25mm oval tubes
• Triple layered powder coating finish
• Standard 0.5" BSP bore inlets/outlets
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 16kg
• Depth: 56mm
• Depth with bracket: 83mm
• Distance from wall to centre of inlet: 44mm
• Valve-to-valve height: 1754mm
• BTU rating @ 50: 2553
• BTU rating @ 60: 3245
• Watt rating @ 50: 748
• Watt rating @ 60: 951
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 10m²

Valves

• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Style: angled
• Type: thermostatic
• Control style: rotary knob
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
