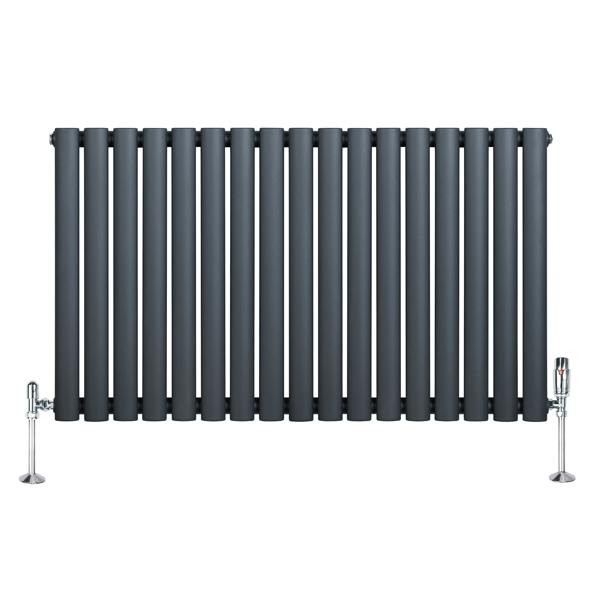

Monstershop Oval Single Column Radiator & Valves – 600mm x 1020mm – Anthracite Grey

A bold, architectural update for contemporary interiors, the Monstershop Oval Single Column Radiator & Valves set combines an anthracite grey radiator with a polished chrome thermostatic valve set. Measuring 600mm high and 1020mm wide, it suits a range of rooms while keeping a clean, linear profile with 17 oval columns.

Made from 1.5mm carbon steel and finished with a triple layered powder coating, it is built for long-term use and everyday practicality. Heat output is rated at 2625 BTU at 50 and 3310 BTU at 60 (769W at 50 and 970W at 60), with a recommended application area of 10m². Standard 0.5" BSP inlets/outlets support straightforward integration, while the angled thermostatic valves use a rotary knob for temperature adjustment from 6-28 degrees.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Anthracite grey radiator with polished chrome valves
• 17-column design with individual oval tube size of 50mm x 25mm
• Heat output: 3310 BTU at 60 (970W at 60)
• Standard 0.5" BSP bore inlets/outlets
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• Includes brackets, fixing kit and flexible cleaning brush
• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years

Specifications

Radiator

• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Colour: Anthracite grey

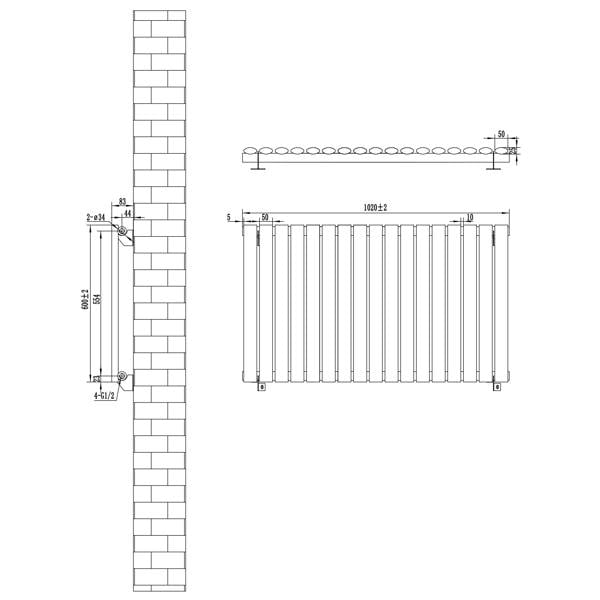

• Dimensions: 600mm (H) x 1020mm (W)
• Radiator depth: 56mm
• Depth with bracket: 83mm
• Weight: 17.2kg
• Gap between tubes: 10mm
• Number of columns: 17
• BTU rating @ 50: 2625
• BTU rating @ 60: 3310
• Watt rating @ 50: 769
• Watt rating @ 60: 970
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 10m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm
• Valve-to-valve height: 554mm
• Compatibility: All UK & EU heating systems

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Weight: 0.9kg

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
