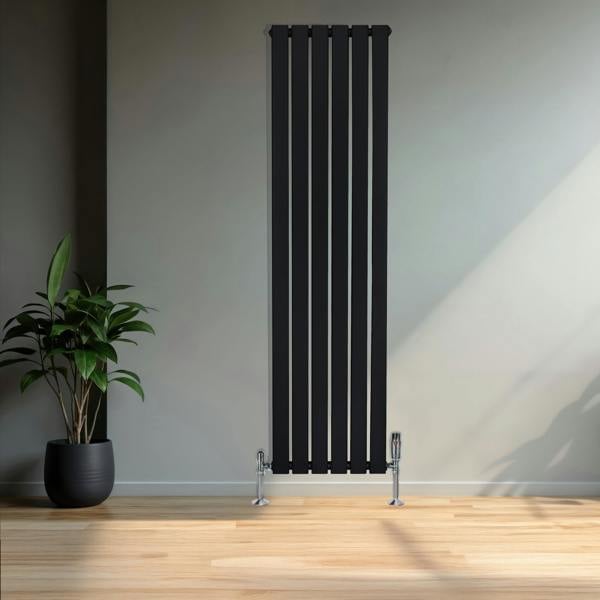

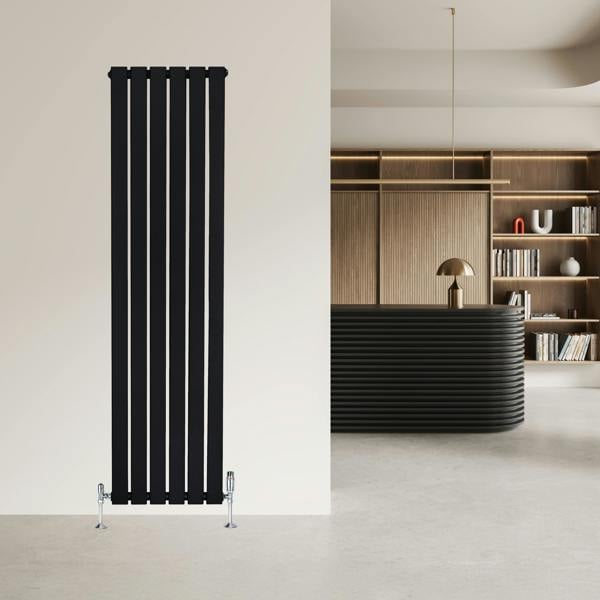

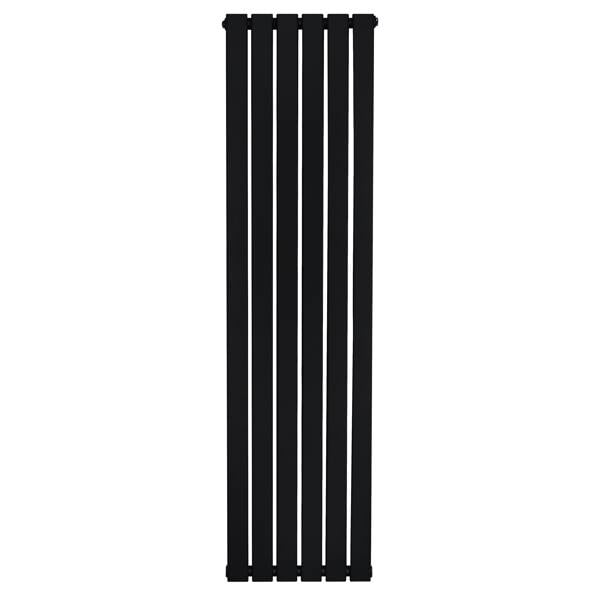

Monstershop Flat Single Column Radiator - 1600 x 420mm - Black

Bring a crisp, architectural look to your heating with the Monstershop Flat Single Column Radiator in black. Built from 1.5mm carbon steel and finished in a triple layered powder coating, it pairs a clean, flat-tube profile with a bold, modern colour that suits contemporary interiors.

Measuring 1600mm high by 420mm wide, this 6-column radiator uses 60mm x 15mm individual flat tubes with a 10mm gap between tubes. Heat output is rated at 2529 BTU at 50 and 3211 BTU at 60, with watt ratings of 741 at 50 and 941 at 60. It supports a maximum working temperature of 95°C, with a maximum working pressure of 5 Bar and a test pressure of 6.5 Bar. Standard 0.5" BSP inlets/outlets allow valve choice to suit your setup, and it is compatible with all UK & EU heating systems.

Key features

• Flat single column radiator with 6 columns
• 1.5mm carbon steel construction
• Triple layered powder coating finish
• Heat output: 3211 BTU at 60
• Standard 0.5" BSP inlet/outlet size
• CE and UKCA certified
• Tested to BS EN 442 and ISO9001:2015 standards
• 15-year quality guarantee

Specifications

• Colour: Black
• Weight: 16.9kg
• Height: 1600mm / 160cm / 63”
• Width: 420mm / 42cm / 16.5”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 2529
• BTU rating @ 60: 3211
• Watt rating @ 50: 741
• Watt rating @ 60: 941
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 9m²
• Inlets/Outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
