Monstershop Oval Single Column Radiator & Valves – 1800mm x 600mm – Anthracite Grey

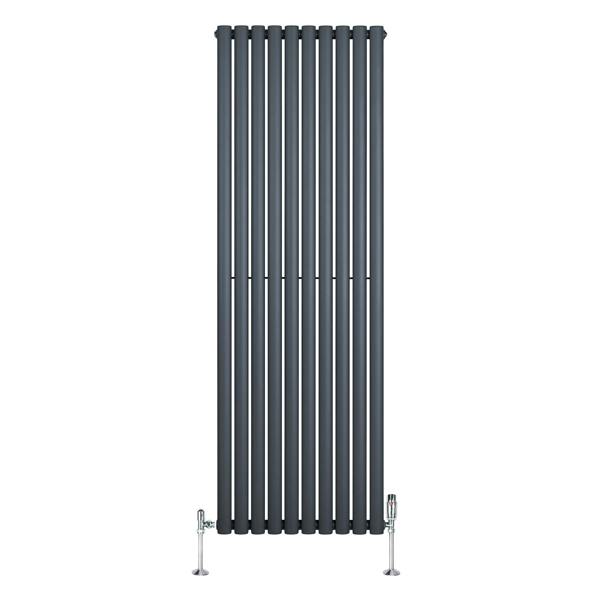

A bold vertical profile and a deep anthracite finish give the Monstershop Oval Single Column Radiator & Valves a confident, architectural look. This oval single column radiator measures 1800mm x 600mm and is made from 1.5mm carbon steel, finished with triple layered powder coating for a clean, uniform appearance.

With 10 columns and individual oval tubes sized 50mm x 25mm, it delivers a BTU rating of 5409 at 60 (4256 at 50), with watt ratings of 1585 at 60 and 1247 at 50. Standard 0.5" BSP bore inlets/outlets support straightforward integration, with compatibility across UK & EU heating systems. Supplied with a polished chrome, angled thermostatic valve set, temperature can be adjusted from 6-28 degrees via a rotary knob, while the integrated lock shield valve helps regulate water flow. CE & UKCA certification and testing to BS EN 442 & ISO9001:2015 standards are included, alongside a 15-year guarantee for the radiator and a 10-year guarantee for the valves.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Size: 1800mm x 600mm
• Anthracite grey finish with triple layered powder coating
• Heat output: 5409 BTU at 60; 4256 BTU at 50
• 10-column design with 50mm x 25mm oval tubes
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with 6-28 degrees temperature range
• CE & UKCA certified; tested to BS EN 442 & ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 27.1kg

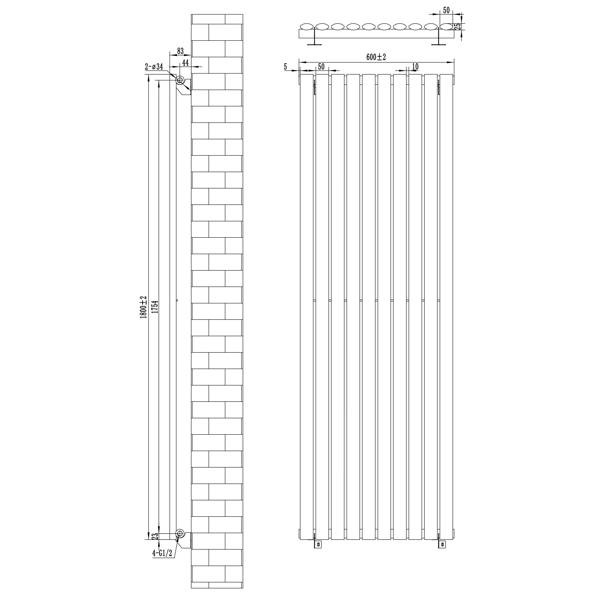

• Height: 1800mm / 180cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 10
• BTU rating @ 50: 4256
• BTU rating @ 60: 5409
• Watt rating @ 50: 1247
• Watt rating @ 60: 1585
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 16m²
• Inlets/Outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Oval Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
