Monstershop Traditional 4 Column Radiator & Valves - 600 x 425mm - Black

A bold, traditional look meets practical heating performance in the Monstershop Traditional 4 Column Radiator & Valves. Finished in black with a triple layered powder coating, it brings a strong architectural feel to interiors while offering a compact horizontal format at 600mm high and 425mm wide.

Made from 1.5mm carbon steel, the radiator uses 25mm steel tubes with a 20mm gap between tubes and a depth of 140mm (155mm with bracket). Heat output is rated at 1786 BTU at 60 (523W) and 1406 BTU at 50 (412W), with a recommended application area of 5m². Standard 0.5" BSP inlets/outlets support straightforward integration, and compatibility covers all UK & EU heating systems. A satin brass angled thermostatic valve set is supplied, with rotary knob control and a 6–28 degrees temperature range.

Key features

• Traditional 4 column radiator with black finish
• 600mm height and 425mm width
• 1.5mm carbon steel construction
• Triple layered powder coating
• 1786 BTU rating at 60 (523W)
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled thermostatic valve set in brass
• Includes brackets, fixing kit and flexible cleaning brush
• 15 year guarantee

Specifications

Radiator

• Colour: Black
• Weight: 20.7kg
• Material: 1.5mm carbon steel

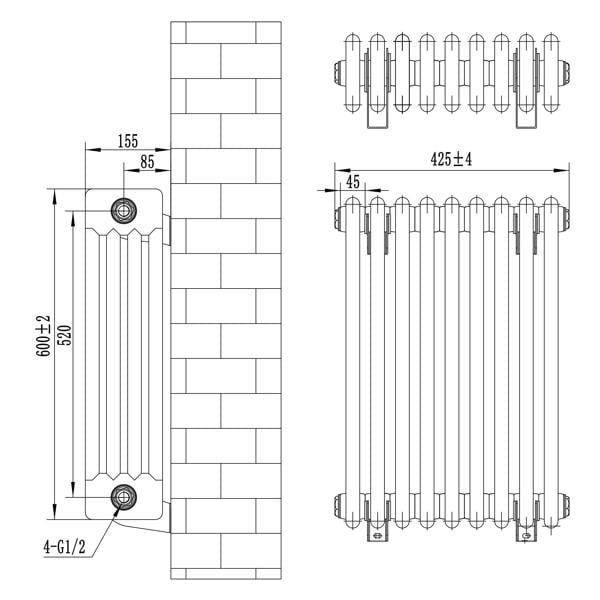

• Height: 600mm / 60cm / 23.6”
• Width: 425mm / 42.5cm / 16.7”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 9
• BTU rating @ 50: 1406
• BTU rating @ 60: 1786
• Watt rating @ 50: 412
• Watt rating @ 60: 523
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 5m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valve set

• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set
