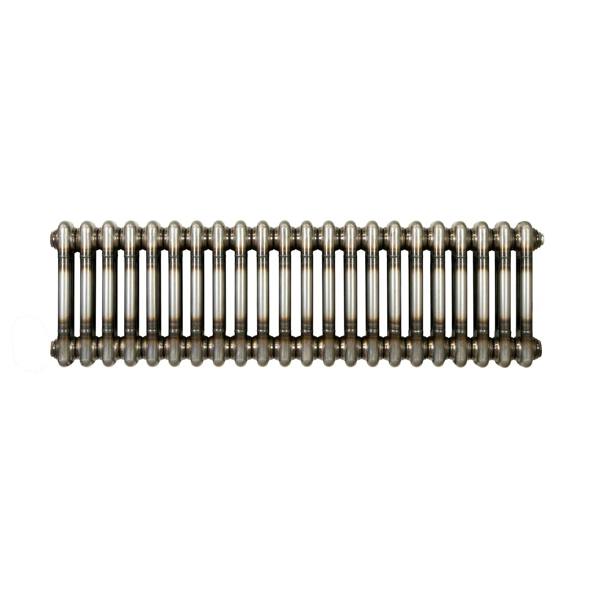

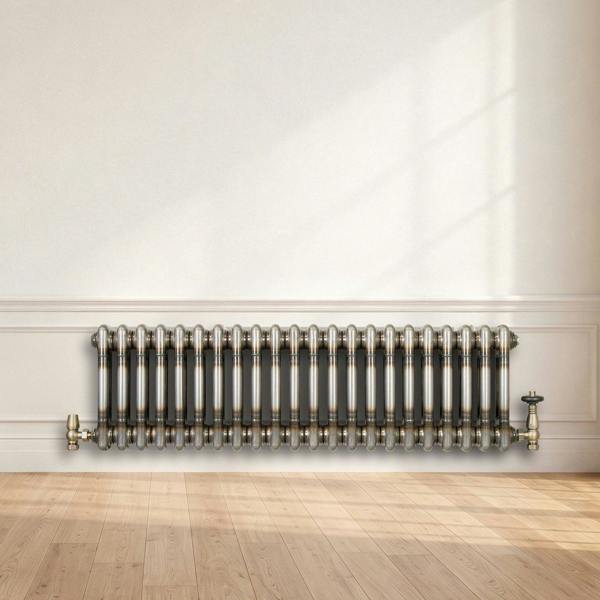

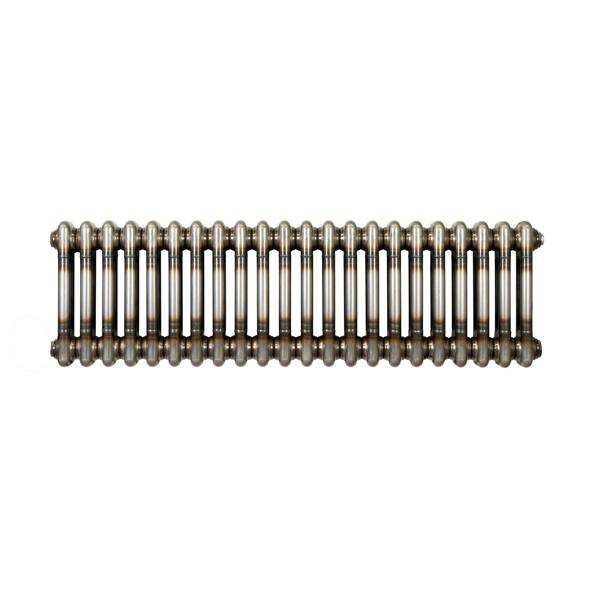

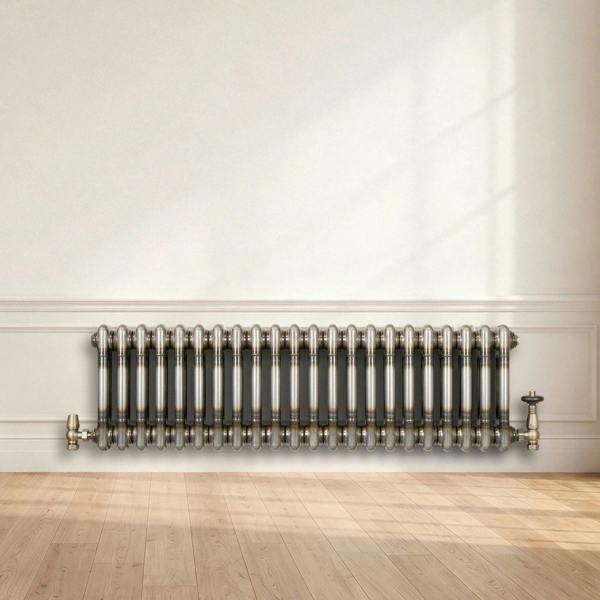

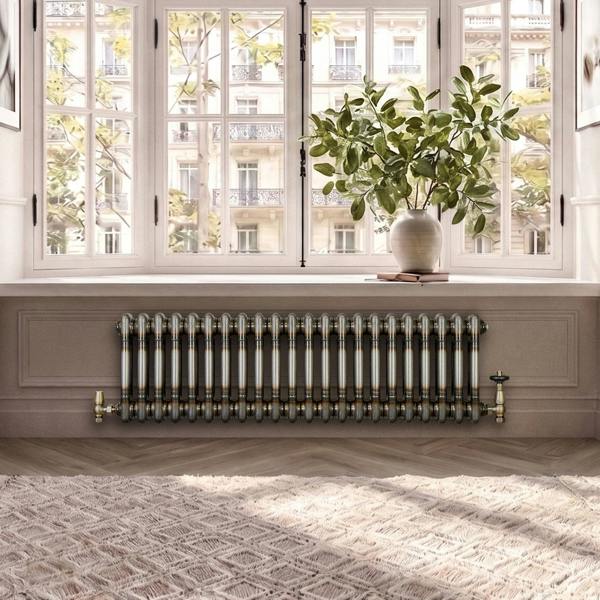

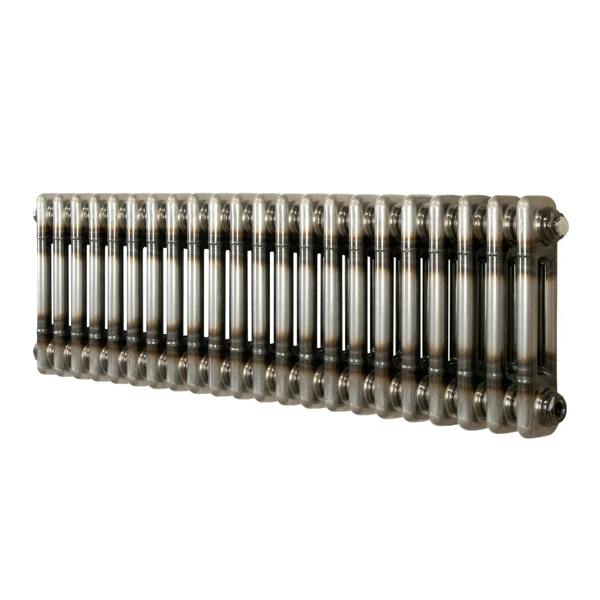

Monstershop Traditional 2 Column Radiator - 300 x 1010mm - Raw Metal

Bring an industrial edge to your heating with the Monstershop Traditional 2 Column Radiator, finished in raw metal with a lacquer coating. Measuring 300 x 1010mm, this horizontal design suits a wide range of placements, while the 2 column build and 22-column layout create a bold, architectural look.

Made from 1.5mm carbon steel with 25mm individual tubes and a 45mm gap between tubes, it combines a distinctive aesthetic with dependable specification-led performance. Heat output is rated at 2081 BTU at 50 and 2614 BTU at 60 (610W at 50 and 766W at 60). With standard 0.5" BSP bore inlets/outlets, it offers straightforward compatibility with valves of your choice. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the package alongside a 15-year guarantee.

Key features

• Traditional 2 column horizontal radiator
• Raw metal colour with lacquer coating
• Made from 1.5mm carbon steel
• Heat output: 2614 BTU at 60 (766W at 60)
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• 15-year guarantee
• CE and UKCA certified

Specifications

Build & finish

• Material: 1.5mm carbon steel
• Finish: lacquer coating
• Weight: 11.6kg
• Number of columns: 22
• Individual tube size: 25mm / 2.5cm / 1”
• Gap between tubes: 45mm / 4.5cm / 1.8”
• Heating surface area: 1.11m²

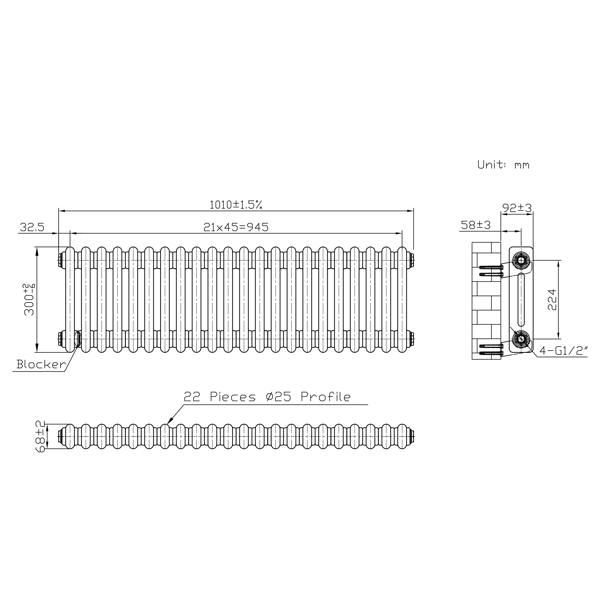

Dimensions

• Height: 300mm / 30cm / 11.8”
• Width: 1010mm / 101cm / 39.8”
• Radiator depth: 68mm / 6.8cm / 2.7”
• Depth with bracket: 92mm / 9.2cm / 3.6”
• Distance from wall to centre of inlet: 58mm / 5.8cm / 2.3”
• Valve-to-valve height: 324mm / 32.4cm / 12.8”

Performance & limits

• BTU rating at 50: 2081
• BTU rating at 60: 2614
• Watt rating at 50: 610
• Watt rating at 60: 766
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 4.1m²

Connections & compliance

• Inlets/outlets size: standard 0.5" BSP bore
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Rackhams Reference : WRU4TVM95I
