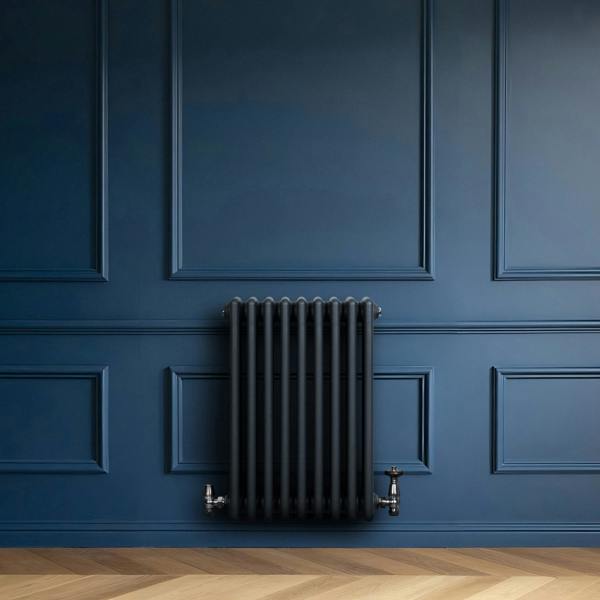

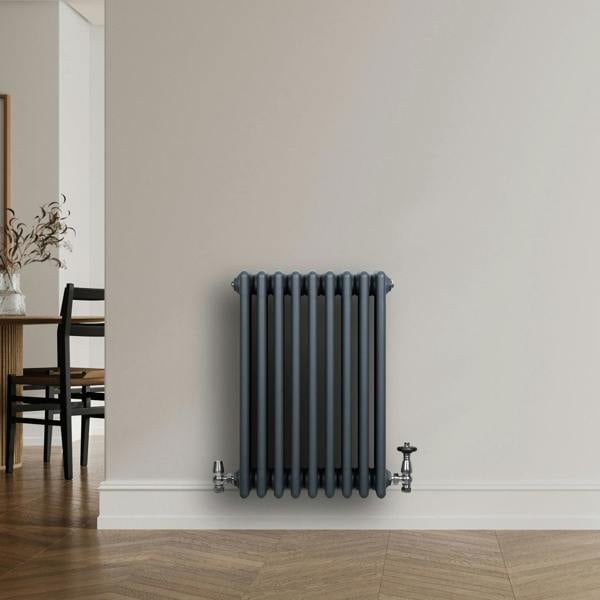

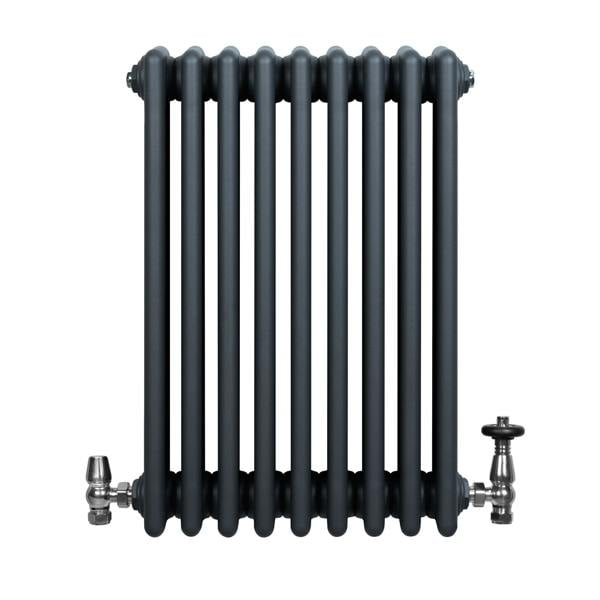

Monstershop Traditional 4 Column Radiator & Valves - 600 x 425mm - Anthracite Grey

A bold, architectural update for modern and traditional interiors alike, the Monstershop Traditional 4 Column Radiator & Valves combines a horizontal, multi-column profile with a deep anthracite grey finish. Measuring 600mm high by 425mm wide, it brings a strong visual presence while keeping proportions suited to a wide range of rooms.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it’s built for long-term use and everyday practicality. Heat output is rated at 1786 BTU at 60 (523W) and 1406 BTU at 50 (412W), with a maximum working temperature of 95°C and maximum working pressure of 12 bar. Standard 0.5" BSP inlets/outlets support straightforward integration, and the supplied angled chrome thermostatic valve set offers rotary control with a 6–28 degrees temperature range, plus a lockshield valve for regulating flow.

Key features

• Traditional 4 column radiator with 9 columns
• 600mm x 425mm size
• Anthracite grey finish with triple layered powder coating
• 1.5mm carbon steel construction
• 1786 BTU heat output at 60 (523W)
• Standard 0.5" BSP inlet/outlet size
• Supplied with angled chrome thermostatic valve set
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite grey
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 20.7kg
• Height: 600mm / 60cm / 23.6”
• Width: 425mm / 42.5cm / 16.7”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 9
• BTU rating @ 50: 1406
• BTU rating @ 60: 1786
• Watt rating @ 50: 412
• Watt rating @ 60: 523
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 5m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valve set

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : BI6SYCR91B
