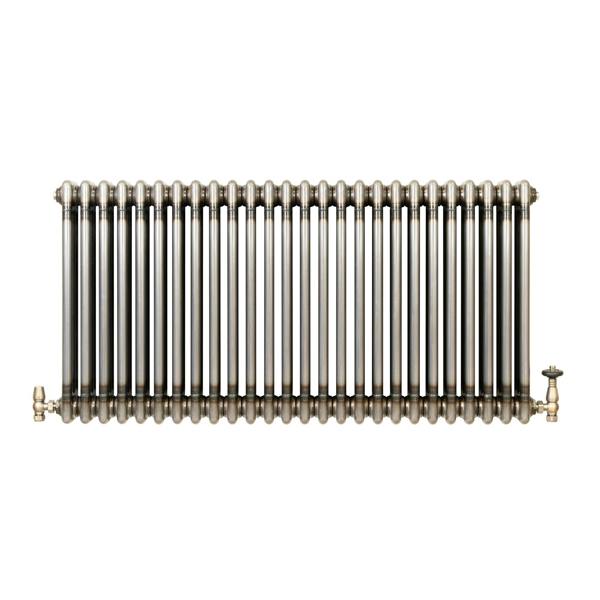

Traditional 3 Column Radiator & Valves – 600mm x 1190mm - Raw Metal

From MonsterShop, this traditional 3 column horizontal radiator and valve set brings together an industrial raw metal finish with practical heating performance. Designed to stand out as well as settle easily into a range of interiors, it offers a distinctive look for living spaces, hallways or other rooms where both warmth and character matter.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 26 columns and 25mm steel tubes. It is supplied with an angled thermostatic valve set in a matching raw metal colour, allowing temperature adjustment from 6–28C via a rotary knob. A lockshield valve is also integrated to help regulate water flow. With fixtures and fittings included, along with a flexible cleaning brush, the set is prepared for straightforward installation and ongoing care.

Key features

• 1.5mm carbon steel construction
• Raw metal finish with lacquer coating
• Heat output of 8336 BTU at 60
• 26-column horizontal design
• Angled thermostatic valve set with rotary knob control
• Temperature range from 6–28C
• BS EN 442, ISO9001:2015, CE and UKCA certified
• 15-year radiator guarantee

Sizing

• Radiator: 1190mm W x 100mm D x 600mm H
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 524mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

Specifications

• Material: 1.5mm carbon steel radiator
• Material: Powder coated brass valves
• BTU rating @ 50: 6638
• Watt rating @ 50: 1945
• Watt rating @ 60: 2443
• Max working temperature: 95C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Inlets/outlets size: Standard 0.5" BSP bore
• Connection: 1/2" x 15mm
• Nominal flow rate: 2.8L/m
• Maximum flow temperature: 100 degrees
• Compatibility: All UK and EU heating systems
• Valve guarantee: 10 years

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : K1PI5B1FXS
