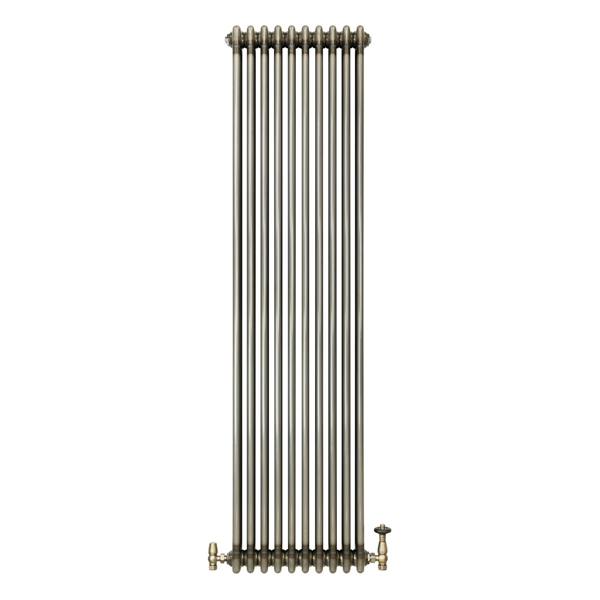

Traditional 3 Column Radiator & Valves - 1800 x 470mm - Raw Metal

From MonsterShop, this traditional 3 column vertical radiator brings an industrial raw metal finish to the home while delivering dependable heating performance. Designed to stand out as well as integrate easily into a range of interiors, it combines a tall, space-conscious profile with a bold, characterful look suited to both traditional and more contemporary settings.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 25mm steel tubes and a 10 column construction. It is supplied with an angled thermostatic valve set in a matching raw metal finish, allowing straightforward temperature adjustment via a rotary knob. With standard 0.5" BSP inlet and outlet compatibility, it is designed to work with all UK and EU heating systems. A flexible cleaning brush is also included to help maintain the finish over time.

Key features

• 1.5mm carbon steel construction with lacquer coating
• Raw metal finish
• 9093 BTU heat output at 60
• 10 column design with 25mm steel tubes
• Angled thermostatic valves with rotary knob control
• Temperature range from 6–28 degrees
• BS EN 442 and ISO9001:2015 tested
• 15-year radiator guarantee

Specifications

• Valve material: Powder coated brass
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Connection: 1/2" x 15mm
• Nominal flow rate: 2.8L/m
• Maximum flow temperature: 100 degrees
• CE and UKCA certified

Sizing

• Radiator: 1800mm H x 470mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 1724mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
