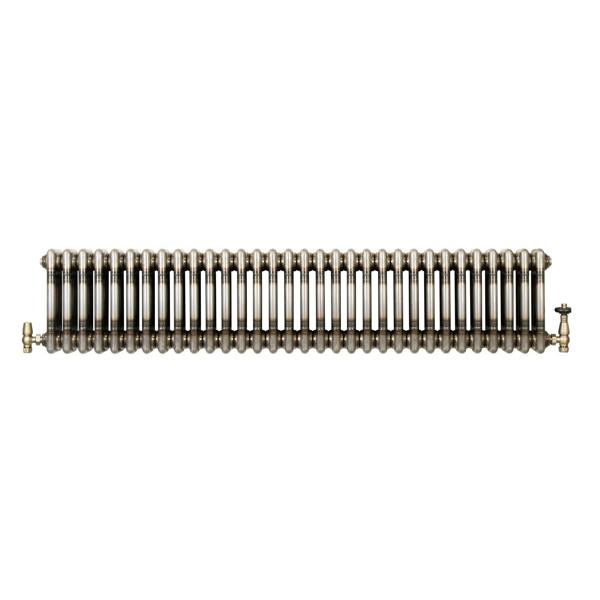

Traditional 3 Column Radiator & Valves - 300mm x 1460mm - Raw Metal

From MonsterShop, this traditional 3 column horizontal radiator brings together an industrial raw metal finish and practical heating performance for everyday interiors. Designed to make an impact while fitting neatly into a range of spaces, it offers a distinctive look with a robust carbon steel construction and lacquer coating that helps preserve its character over time.

With 32 columns and 25mm steel tubes, the radiator is engineered for reliable heat output, making it well suited to living spaces, hallways or other rooms where both appearance and performance matter. It is supplied with an angled thermostatic valve set in a matching raw metal finish, allowing straightforward temperature adjustment through a rotary knob, while the included lockshield valve helps regulate water flow within your heating system.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 3 column design with 32 columns in total
• 5555 BTU heat output at 60
• Standard 0.5" BSP inlet and outlet
• Compatible with all UK and EU heating systems
• CE and UKCA certified
• 15 year radiator guarantee and 10 year valve guarantee

Specifications

• Maximum working temperature: 95C
• Maximum working pressure: 10 Bar
• Test pressure: 13 Bar
• BTU rating at 50: 4421
• Watt rating at 50: 1296
• Watt rating at 60: 1628
• Recommended application area: 8.6m²
• Heating surface area: 2.32m²
• Tested to BS EN 442 and ISO9001:2015 standards
• Valve material: Powder coated brass
• Valve style: Angled thermostatic
• Control style: Rotary knob
• Valve temperature range: 6-28 degrees
• Valve maximum bar pressure: 10
• Valve maximum flow temperature: 100 degrees
• Valve nominal flow rate: 2.8L/m
• Valve connection: 1/2" x 15mm

Sizing

• Radiator: 1460mm W x 100mm D x 300mm H
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 324mm
• TRV: 85mm W x 55mm D x 137mm H
• Lockshield: 75mm W x 34mm D x 87mm H

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
