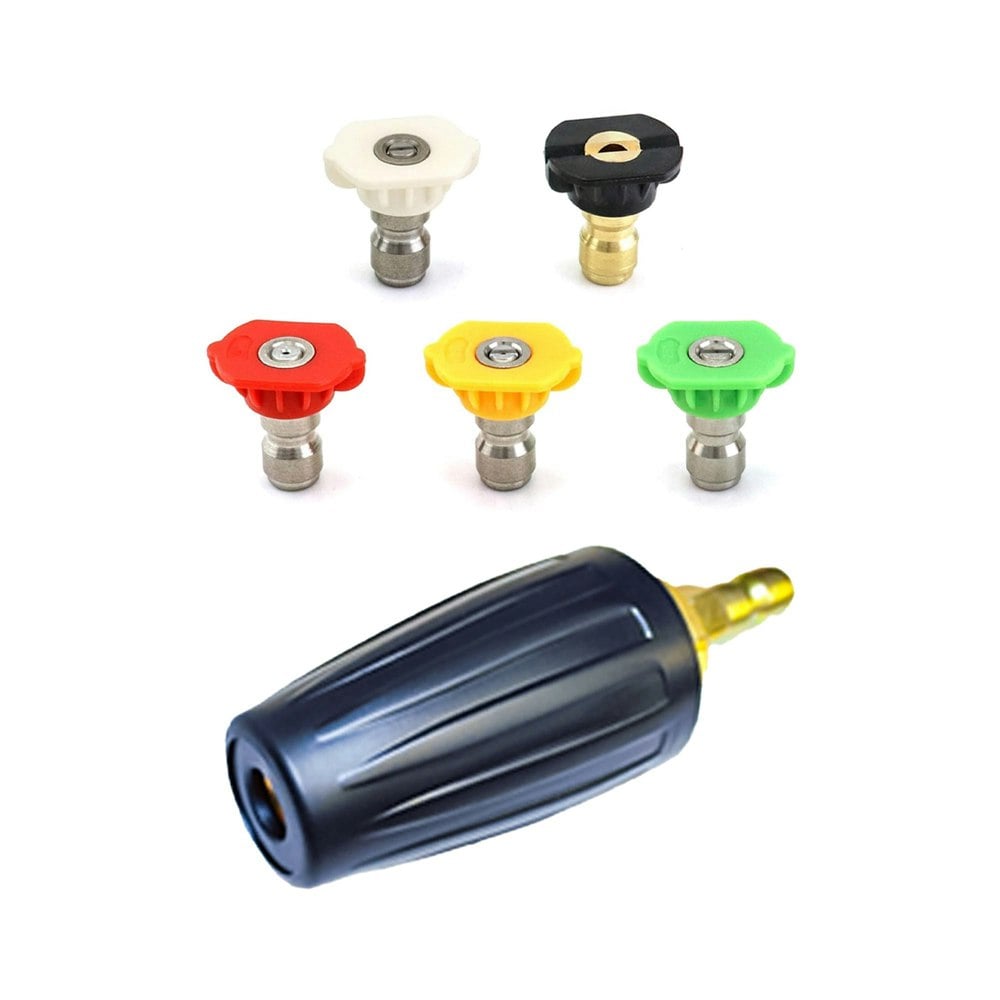

Turbo Nozzle plus 5 High Pressure Nozzle Jets Quick Release 0° / 15° / 25° / 40° / 65°

For tackling stubborn outdoor cleaning jobs, this turbo nozzle and quick-release jet set brings a focused, high-pressure spray option to a wide range of pressure washer lances. The spinning turbo nozzle is suited to removing heavy dirt and grime from flooring, and can also lift flaking paint from brickwork. It is also effective on block paving, including the removal of moss and green algae.

Designed for broad compatibility, it fits standard lances with a 1/4” male threaded end or a 1/4" (11.6mm) quick release outlet. Maximum pressure is 4000 PSI (280 bar) at 100°C.

Key features

• Turbo nozzle with spinning spray action
• Max. pressure 4000 PSI (280 bar) at 100°C
• Fits standard lances with 1/4” male threaded end
• Fits 1/4" (11.6mm) quick release outlet
• 11.6mm (1/4") quick-release high pressure nozzle jets
• Compatible with standard 11.6mm (1/4") quick release nozzle holder / lance
• Rubber outer sleeve colour may vary

Specifications

• Maximum pressure: 4000 PSI (280 bar)
• Maximum temperature: 100°C
• Connections: 1/4” male threaded end; 1/4" (11.6mm) quick release outlet
• Quick release size: 11.6mm (1/4")
• Nozzle angles: 0° / 15° / 25° / 40° / 65°

What's included

• 1x 00 needle / pencil nozzle for directional spray
• 1x 15 degree nozzle for narrow spraying
• 1x 25 degree nozzle for medium fan spray
• 1x 40 degree wide angle fan spray
• 1x 65 degree low pressure detergent nozzle

Typical use cases

• Removal of heavy dirt and grime from flooring
• Removing flaking paint from brickwork
• Cleaning block paving
• Removal of moss and green algae

Nozzle size chart guidance

Use a nozzle size chart to select the correct nozzle for your pressure washer. For example: if you have a pressure washer rated at 100 Bar and 11 litres/min, start at the 100 bar column, then slide down until you get to the number nearest 11, in this case 11.3, then look to the green column which is a 05 nozzle. Now decide which angle spray pattern best suits your needs.

Pressure conversion: to convert PSI to BAR, divide the PSI value by 15.
