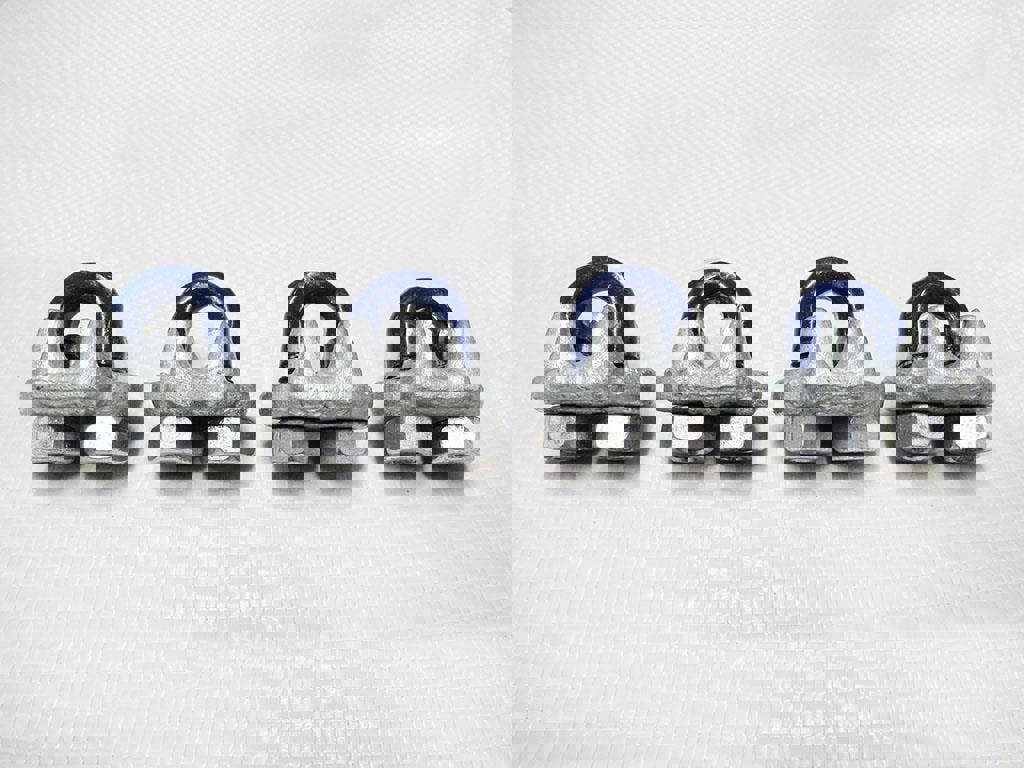

US Fed Spec Wire Rope Grips

US FED Spec Wire Rope Grips

DIMENSIONS

Size - 3MM - A= 13MM, B= 6. 9MM, C= 21. 7MM, D = 6MM, E= 24. 4MM, F= 12. 6MM, G= 25. 6MM

Size - 5MM - A= 16MM, B= 7. 9MM, C= 25MM, D = 6MM, E= 30. 1MM, F= 14. 5MM, G= 28. 6MM

Size - 6MM - A= 18. 6MM, B= 10. 5MM, C= 30. 1MM, D = 8MM, E= 36. 1MM, F= 16. 6MM, G= 37. 8MM

Size - 8MM - A= 24. 8MM, B= 13. 6MM, C= 33. 3MM, D = 9MM, E= 48. 3MM, F= 17. 9MM, G= 43MM

Size - 10MM - A= 25. 5MM, B= 14. 4MM, C= 40. 3MM, D = 11MM, E= 51. 6MM, F= 22. 1MM, G= 49. 1MM

Size - 12MM - A= 28. 8MM, B= 19. 5MM, C= 47. 2MM, D = 12MM, E= 60. 3MM, F= 25. 8MM, G= 58. 2MM

Size - 16MM - A= 39MM, B= 22. 1MM, C= 50. 8MM, D = 14MM, E= 72. 2MM, F= 33. 9MM, G= 63. 2MM

Size - 20MM - A= 45MM, B= 27MM, C= 56. 2MM, D = 15MM, E= 90. 7MM, F= 32. 8MM, G= 72. 3MM

Size - 22MM - A= 44MM, B= 26. 5MM, C= 62. 1MM, D = 18MM, E= 96. 7MM, F= 40. 6MM, G= 80MM

Size - 28MM - A= 53. 2MM, B= 34. 1MM, C= 70. 5MM, D = 18MM, E= 117. 1MM, F= 46. 9MM, G= 90. 6MM

Size - 32MM - A= 60. 7MM, B= 41MM, C= 79. 8MM, D = 22MM, E= 130. 9MM, F= 51. 3MM, G= 104. 6MM

Size - 35MM - A= 64. 7MM, B= 38MM, C= 79. 2MM, D = 21MM, E= 140MM, F= 54. 9MM, G= 105MM

Size - 38MM - A= 63MM, B= 44. 5MM, C= 85. 5MM, D = 22MM, E= 140MM, F= 61MM, G= 110. 5MM

Size - 44MM - A= 73. 1MM, B= 52. 7MM, C= 95. 4MM, D = 27MM, E= 175MM, F= 72. 1MM, G= 133. 8MM

Size - 64MM - A= 91MM, B= 69MM, C= 107. 3MM, D = 31MM, E= 235MM, F= 98. 1MM, G= 166MM

Size - 76MM - A= 100MM, B= 86. 6MM, C= 149. 4MM, D = 37. 3MM, E= 275MM, F= 122. 5MM, G= 195MM

Our Wire Rope Grips Are Perfect For Use With Wire Rope When Being Used Aboard Boats, Public Areas, Yacht Rigging And Many More. The Main Use Of Wire Rope Grips Are For Creating Loops In Wire Rope.

Notes On Assembly And Use

1 - Prior To Fitting, The Threads On The Nuts And Bolts Should Be Well Greased.

2 - Spacing Between The Grips Should Be At Least 6 Times The Diameter Of The Rope.

3 - Ensure The Grip Is Always Orientated Correctly, The 'U' Bolt Should Placed On The Unloaded End Of The Rope.

4 - Tighten Each Nut Evenly And In Turn To Achieve The Recommended Torque Settings.

5 - Leave Unused For 24 Hours And Check Torque Setting Again, Re-Tighten If Necessary.

6 - After First Application Of The Load, Re-Check Torque Setting, Re-Tighten If Necessary.

7 - During Service Periodically Check The Torque Setting.
