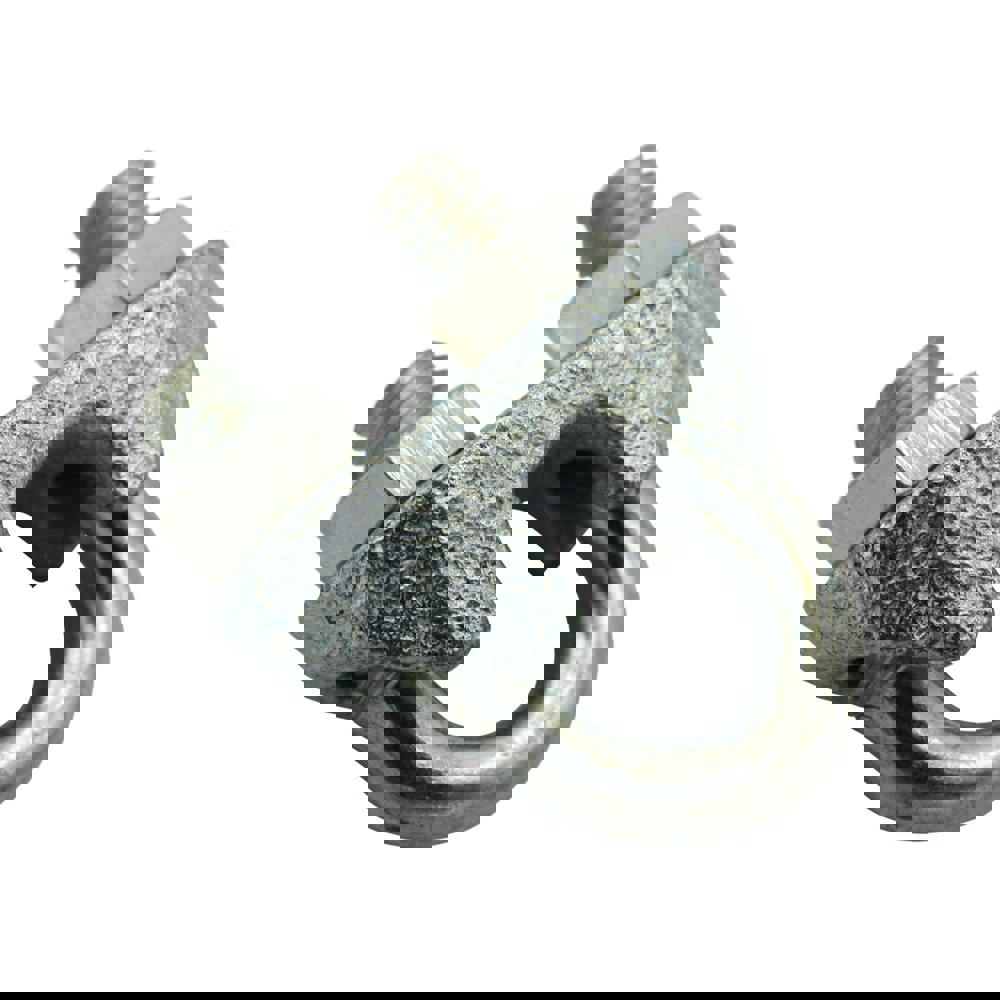

3MM Wire Rope Grips x10 - DIN741 Galvanised Commercial Cable Clamp Bulldog Clip

x10 3MM Galvanised Commercial Wire Rope Grip DIN741

Suits 3MM Wire Rope

Finish - Galvanised

Quantity - 10

 Our Wire Rope Grips, manufactured from mild steel with a galvanised coating for corrosion resistance, are suitable for use on board boats in a rigging setup, or similar applications on land. The main use of these grips is to create loops of wire in a rope assembly, or when a temporary join is needed. The galvanised finish gives excellent corrosion resistance.   Measurements:A(MM) - 11B(MM) - 5. 2C(MM) - 10. 5D(MM) - 3. 6E(MM) - 20F(MM) - 8. 9G(MM) - 20

Notes on assembly and use.

1 - Prior to fitting, the threads on the nuts and bolts should be well greased. 2 - Spacing between the grips should be at least 6 times the diameter of the rope. 3 - Ensure the grip is always orientated correctly, the 'u' bolt should placed on the unloaded end of the rope. 4 - Tighten each nut evenly and in turn to achieve the recommended torque settings. 5 - Leave unused for 24 hours and check torque setting again, re-tighten if necessary. 6 - After first application of the load, re-check torque setting, re-tighten if necessary. 7 - During service periodically check the torque setting. Weight:0. 09KG Product Code : SFCOMG03
