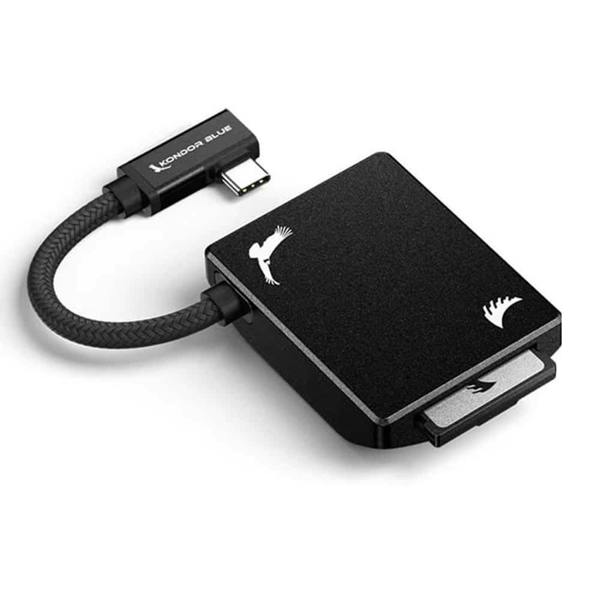

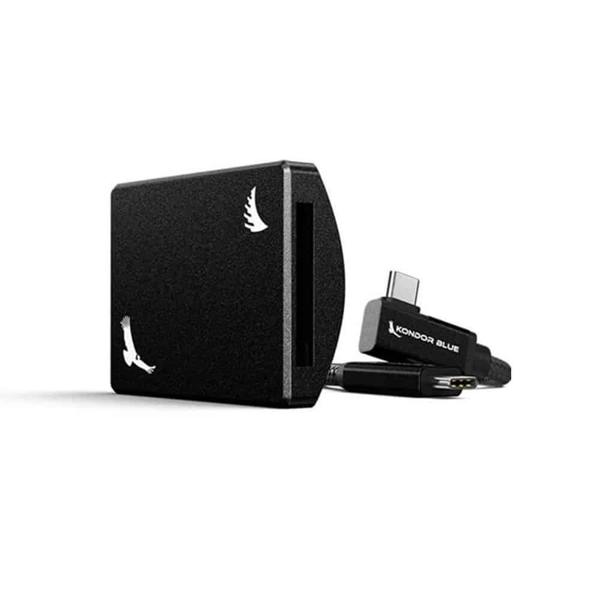

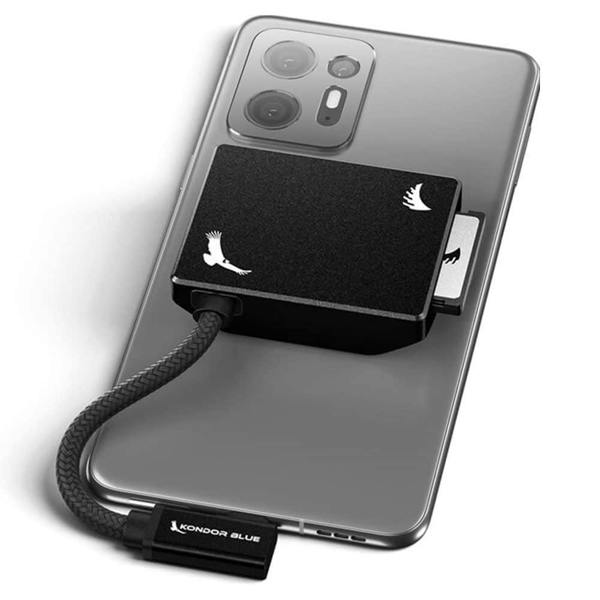

Angelbird CFexpress B Recording Module for MagSafe iPhone 15 Pro & Pro Max in Raven Black

Built for mobile workflows that demand a secure, compact recording setup, the Angelbird CFexpress B Recording Module in Raven Black brings external CFexpress Type B recording to MagSafe-compatible iPhone use. This Angelbird module is compatible with iPhone 15 Pro and iPhone 15 Pro Max, attaching to the back of the phone via MagSafe for direct recording to CFexpress Type B media.

USB-C 3.2 Gen 2x2 support delivers up to 20 Gb/s connectivity, with USB backwards compatibility and physical Thunderbolt 3/4 compatibility. It supports seamless ProRes 4K 60fps recording and can also be used with USB-C cameras that can record, with 1/4"-20 male/female ARRI standard 3mm anti-twist pins for rig mounting. A hard anodised aluminium structure, recessed Solid Connect connection logic, and protection against overload and ESD complete a recording module suited to demanding production environments.

Key features

• Compatible with iPhone 15 Pro and iPhone 15 Pro Max
• MagSafe-compatible attachment
• CFexpress Type B drive interface
• USB-C 3.2 Gen 2x2 with up to 20 Gb/s connectivity
• USB backwards-compatible
• Physically compatible with Thunderbolt 3/4
• Supports ProRes 4K 60fps recording
• Raven Black finish
• Model number: Ab-kbrmcfxbrb

Specifications

General

• Type: CFexpress Recording Module Type B
• Drive interface: CFexpress Type B
• Power: USB bus-powered
• For use with: iOS, macOS, iPadOS, Windows, Linux, Android

Connectivity

• Host interface: USB-C 3.2 Gen 2x2, up to 20 Gb/s
• USB backwards compatible
• Physically TB3/4 compatible
• TB3/4 speed not supported

Certifications

• RoHS
• CE
• FCC
• UKCA
• KC
• RCM
• REACH

Sizing

• Unit dimensions: 58.87mm W x 45.50mm D x 15.50mm H
• Boxed dimensions: 176mm W x 100mm D x 24mm H

In the box

• USB-C 3.2 right to straight angle cable

Support & warranty

• 3-year limited warranty if activated within 30 days of purchase
• Personalised customer care
• Technical support
• Free data recovery services on both the hardware and software
