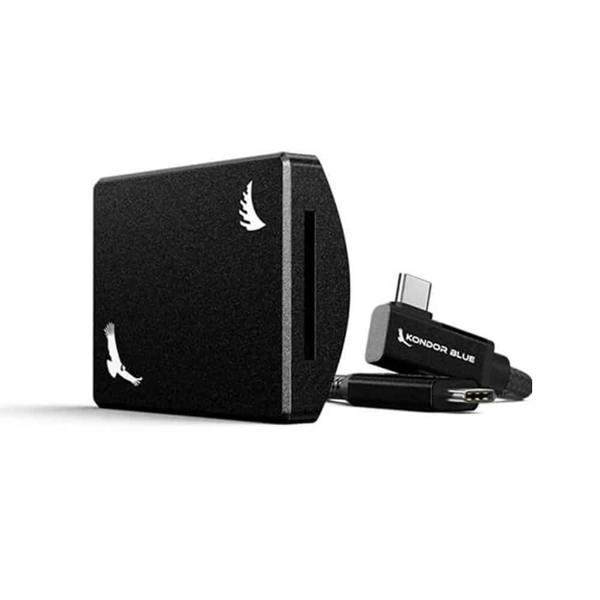

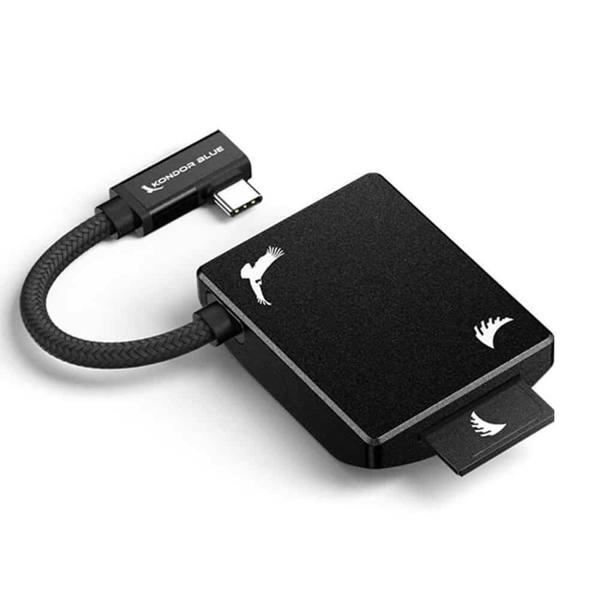

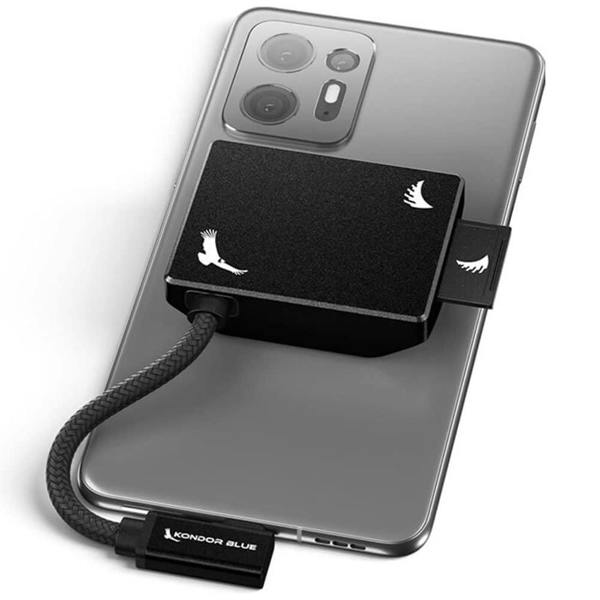

Angelbird SD Recording Module with SDXC, UHS-I, and UHS-II for MagSafe iPhone 15 Pro & Pro Max in Raven Black

Built for mobile video workflows, the Angelbird SD Recording Module in Raven Black brings external SDXC recording to iPhone 15 Pro and iPhone 15 Pro Max with a MagSafe-compatible attachment. This compact recording module supports SDXC UHS-I and UHS-II cards and enables seamless 4K 30fps recording with direct file transfer to the memory card.

A USB-C 3.2 Gen 2 connection supports up to 10 Gb/s, with USB backwards compatibility and physical Thunderbolt 3/4 compatibility. The hard anodised aluminium construction is made in Austria and is built to withstand extreme heat and shock, with overload and ESD protection for added security during use. It can also be mounted to rigs via 1/4"-20 male/female ARRI standard 3mm anti-twist pins, making it suitable for use with USB-C enabled cameras as well as iPhone setups.

Key features

• Compatible with iPhone 15 Pro and iPhone 15 Pro Max
• MagSafe-compatible magnetic attachment
• Supports SDXC UHS-I and UHS-II memory cards
• Seamless 4K 30fps recording
• Raven Black finish
• Made in Austria
• CE, FCC, UKCA, KC, RCM, REACH and RoHS certified
• Model number: Ab-kbrmsdrb

Specifications

Connectivity

• Host interface: USB-C 3.2 Gen 2 up to 10 Gb/s
• USB backwards compatible
• Physically compatible with Thunderbolt 3/4
• Thunderbolt 3/4 speed not supported

Card support

• Drive interface: SD 4.0
• Card types: SDXC, UHS-I, UHS-II
• Requires cards that can sustain write speeds of 220 MB/s or faster

Power and compatibility

• USB bus-powered
• For use with iOS, macOS, iPadOS, Windows, Linux and Android

Sizing

• Unit dimensions: 58.87mm W x 45.50mm D x 15.50mm H
• Boxed dimensions: 176mm W x 100mm D x 24mm H

In the box

• USB-C 3.2 right to straight angle cable

Support & warranty

• 3-year limited warranty if activated within 30 days of purchase
• Personalised customer care included
• Technical support included
• Free data recovery services on both the hard drive and software

Safety information

• Overload protection
• ESD protection
