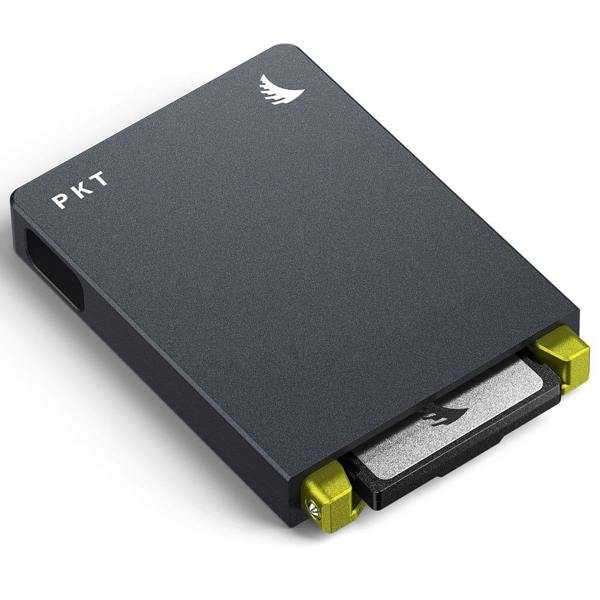

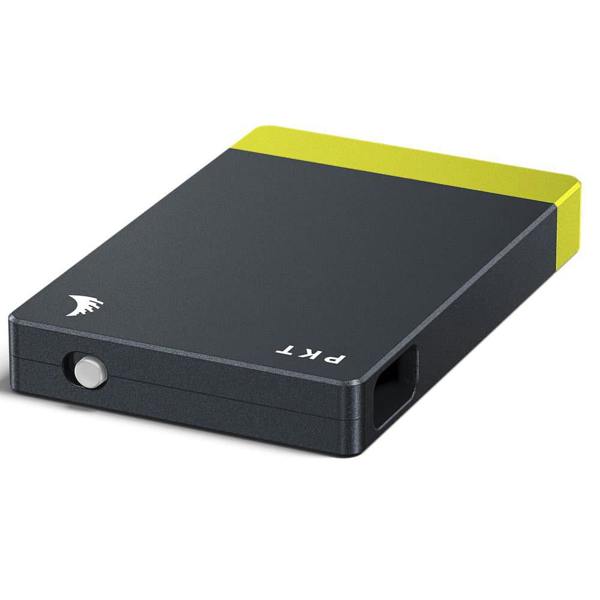

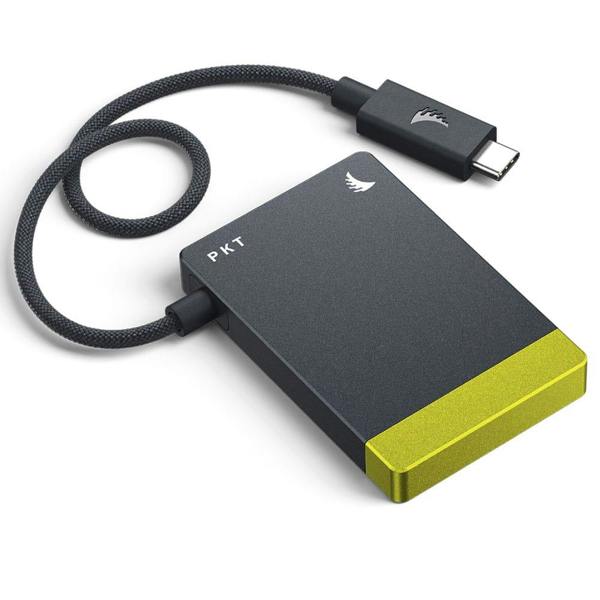

Angelbird CFexpress Type B PKT Card Reader USB-C 3.2 Gen 2

Built for fast, dependable media handling, the Angelbird CFexpress Type B PKT Card Reader is a compact memory card reader with USB-C 3. 2 Gen 2x2 connectivity and support for transfer speeds of up to 20 Gb/s. It accepts a single CFexpress Type B card at a time and is physically compatible with Thunderbolt 3, 4 and 5 host devices, operating via USB 3. 2 Gen 2x2.

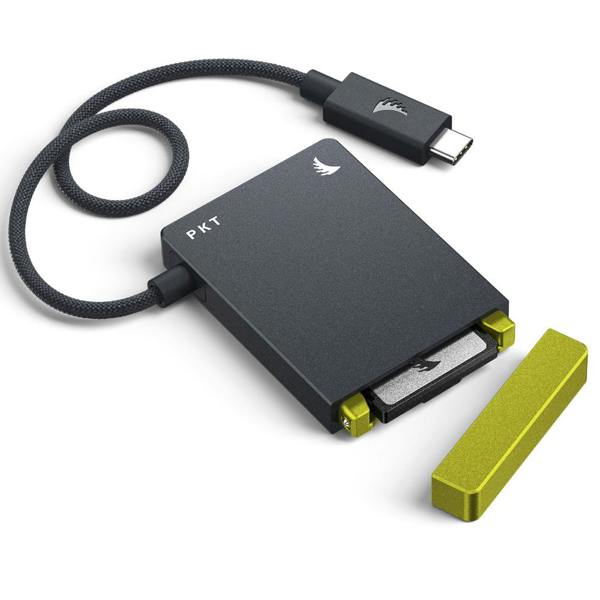

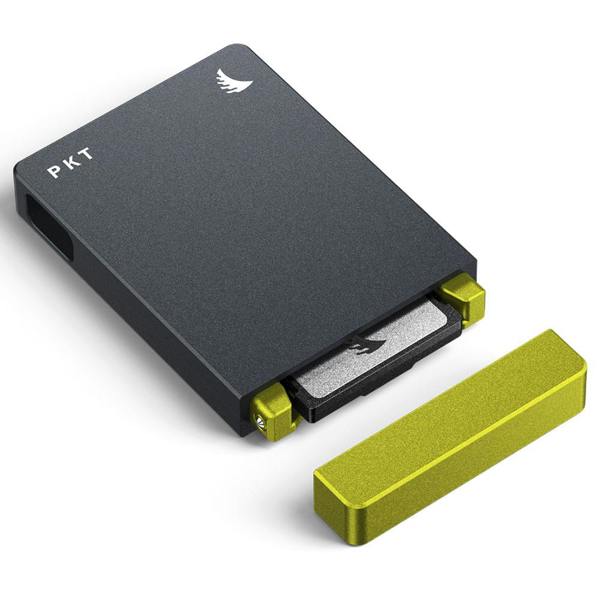

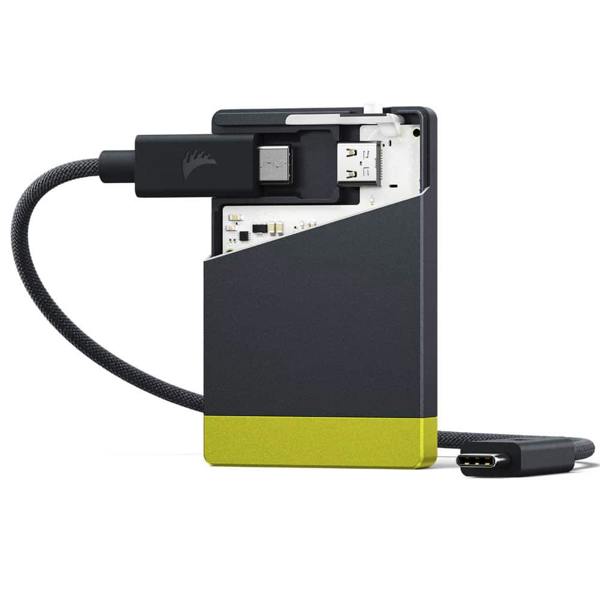

The pocket-sized format is matched by a robust aluminium body that withstands extreme temperatures, shock, electrostatic discharge and overloads. A recessed Solid Connect port helps protect the cable connection from wear, while the removable yellow PKT Cap provides 360 protection and allows a card to remain safely inside during transport. An integrated Write-Protect Switch helps prevent accidental file deletion or formatting, with LED indicators showing connection, write-protect status and active data transfer. Compatible with macOS, iPadOS, iOS, Windows, Linux and Android, it also supports hot swapping and firmware updates on Angelbird CFexpress Type B cards.

Key features

• USB-C 3. 2 Gen 2x2 connection
• Up to 20 Gb/s transfer speeds
• Accepts 1 CFexpress Type B card
• USB backwards compatible
• Physically compatible with Thunderbolt 3, 4 and 5 host devices
• Integrated Write-Protect Switch with LED status modes
• Yellow colour-coded PKT Cap with 360 protection
• CE and UKCA certified
• Model number: Ab-cfxbcrpkt

Specifications

Connectivity

• Host interface: USB-C 3. 2 Gen 2x2
• Transfer speed: up to 20 Gb/s
• USB backward compatible
• Thunderbolt compatibility: technically compatible with Thunderbolt 3, 4 and 5 host devices, operating via USB 3. 2 Gen 2x2 with transfer speeds of up to 20 Gb/s

Card support

• Drive interface: CFexpress 2. 0/4. 0 Type B
• Card capacity: single CFexpress Type B card
• Hot-swap support

System compatibility

• macOS
• iPadOS
• iOS
• Windows
• Linux
• Android

Power

• USB bus powered

Certifications

• RoHS
• CE
• FCC
• UKCA
• KC
• RCM
• REACH

Sizing

• 70. 0mm W x 45. 5mm D x 9. 5mm H

Support & warranty

• 3-year limited warranty
• Activate the product within 30 days of purchase to receive the 3-year limited warranty

Safety information

• Overload protection
• ESD protection
• Activate or deactivate the Write-Protect function only when the card reader is safely ejected and disconnected from the host
