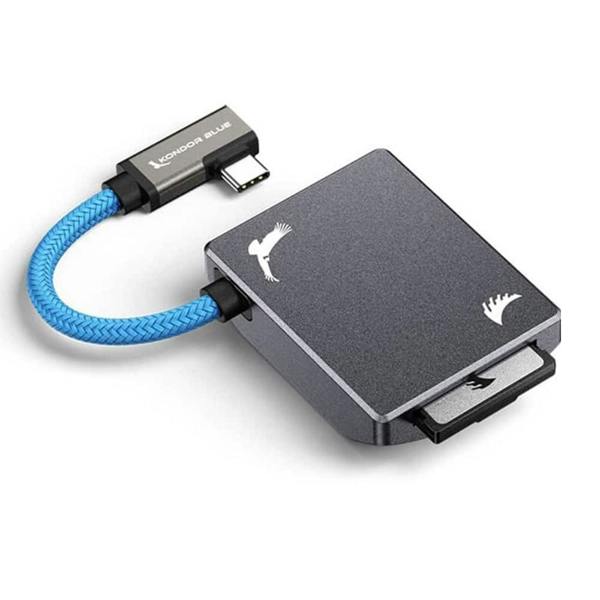

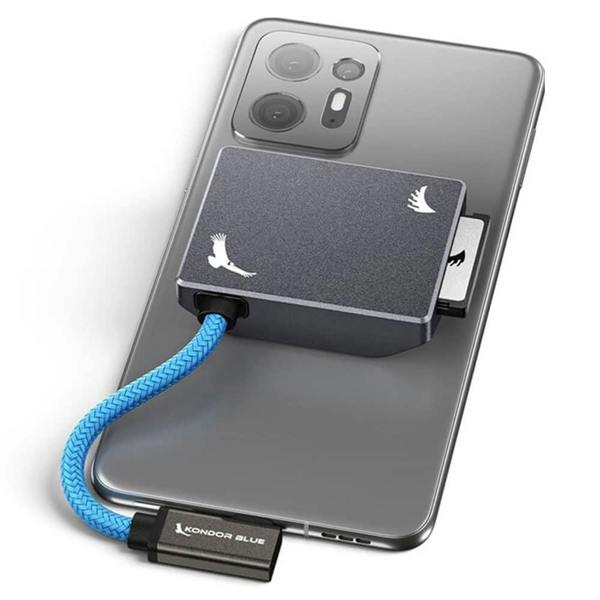

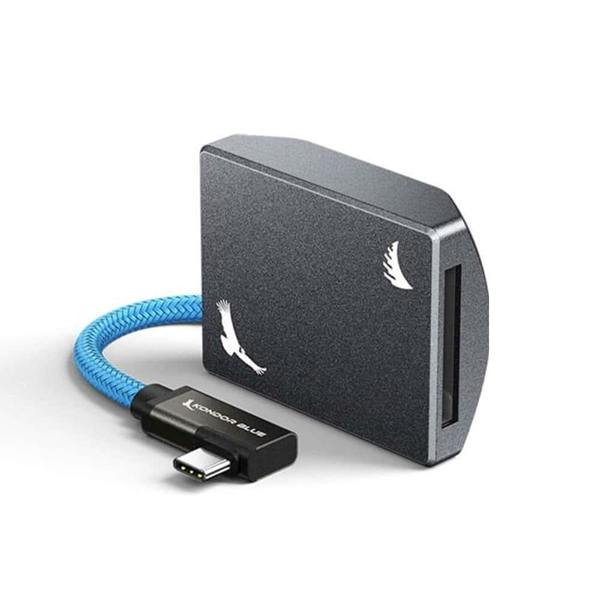

Angelbird CFexpress B Recording Module for MagSafe iPhone 15 Pro & Pro Max in Space Grey

Built for mobile video workflows, the Angelbird CFexpress B Recording Module in Space Grey brings direct CFexpress Type B recording to the iPhone 15 Pro and iPhone 15 Pro Max. This external recording module is MagSafe compatible and supports recording 4K ProRes 60fps files straight to CFexpress Type B media, offering a practical option for users working with high-resolution footage on the move.

Its USB-C 3.2 Gen 2x2 host interface supports up to 20 Gb/s connectivity, with USB backwards compatibility and physical Thunderbolt 3/4 compatibility. The hard anodised aluminium construction is made in Austria and built for continuous CFexpress Type B data unloading. A recessed Solid Connect connection point helps maintain a secure link during recording or file transfer, while 1/4"-20 male/female ARRI standard 3mm anti-twist pins allow mounting to any USB-C enabled camera that can record.

Key features

• Compatible with iPhone 15 Pro and iPhone 15 Pro Max
• MagSafe compatible
• Records 4K ProRes 60fps files directly to CFexpress Type B media
• Hard anodised aluminium construction
• USB bus-powered
• Withstands extreme heat and shock
• CE, FCC, UKCA, KC, RCM, REACH and RoHS certified
• Model number: Ab-kbrmcfxb

Specifications

Connectivity

• Host interface: USB-C 3.2 Gen 2x2, up to 20 Gb/s
• USB backwards compatible
• Physically compatible with Thunderbolt 3/4
• Thunderbolt 3/4 speed not supported

Compatibility

• Drive interface: CFexpress Type B
• For use with: iOS, macOS, iPadOS, Windows, Linux and Android

Power

• USB bus-powered

Sizing

• Unit dimensions: 58.87mm W x 45.50mm D x 15.50mm H
• Boxed dimensions: 176mm W x 100mm D x 24mm H

In the box

• USB-C 3.2 right to straight angle cable

Support & warranty

• 3-year limited warranty when activated within 30 days of purchase
• Includes personalised customer care, technical support, and free data recovery services on both the hardware and software

Safety information

• Provides overload protection
• Provides ESD protection

Rackhams Reference : DM1P9NL23X
